Ajax Fire ReX Jeweller Wireless Range Extender - EN54
Code: FPS002/975
from
INC VAT
Code: FPS002/975
The Ajax Fire ReX Jeweller EN54 Wireless Range Extender is built to broaden the communication reach of compatible Ajax EN54 wireless fire alarm systems, supporting consistent device connectivity across larger or more demanding building environments.
Where structural features, physical obstructions, or greater distances between devices risk affecting wireless signal performance, the Fire ReX Jeweller strengthens overall system resilience by reinforcing the communication link between the control and indicating equipment and the devices connected to it. This makes it a practical addition to large commercial sites, multi-zone installations, and any project where stable wireless communication is a priority.
Operating via Ajax Jeweller and Wings radio technologies, the extender supports a communication range of up to 1,800 metres in open space, helping to overcome coverage gaps without the cost and disruption of additional cabling. Should a connection be interrupted, automatic channel switching works to maintain system continuity without manual intervention.
Installation is kept straightforward through QR code commissioning, with remote configuration and diagnostic testing available through the Ajax apps. The SmartBracket mounting panel allows the unit to be fixed in place without removing the enclosure, and batteries can be swapped without tools, reducing both installation time and ongoing servicing demands.
The Fire ReX Jeweller carries compliance with EN 54-4, EN 54-18, EN 54-25 and EN 50131 (Grade 2), making it appropriate for professional fire alarm installations where adherence to recognised industry standards is required.
Ajax Fire ReX Jeweller Wireless Range Extender - EN54 | ||
Compliant with EN 54 fire alarm standards | Extends communication coverage up to 1,800m in open space | Supports Ajax Jeweller and Wings communication technologies |
Automatic communication channel switching in the event of connection loss | Remote configuration and testing via Ajax apps | QR code setup with no programming tools required |

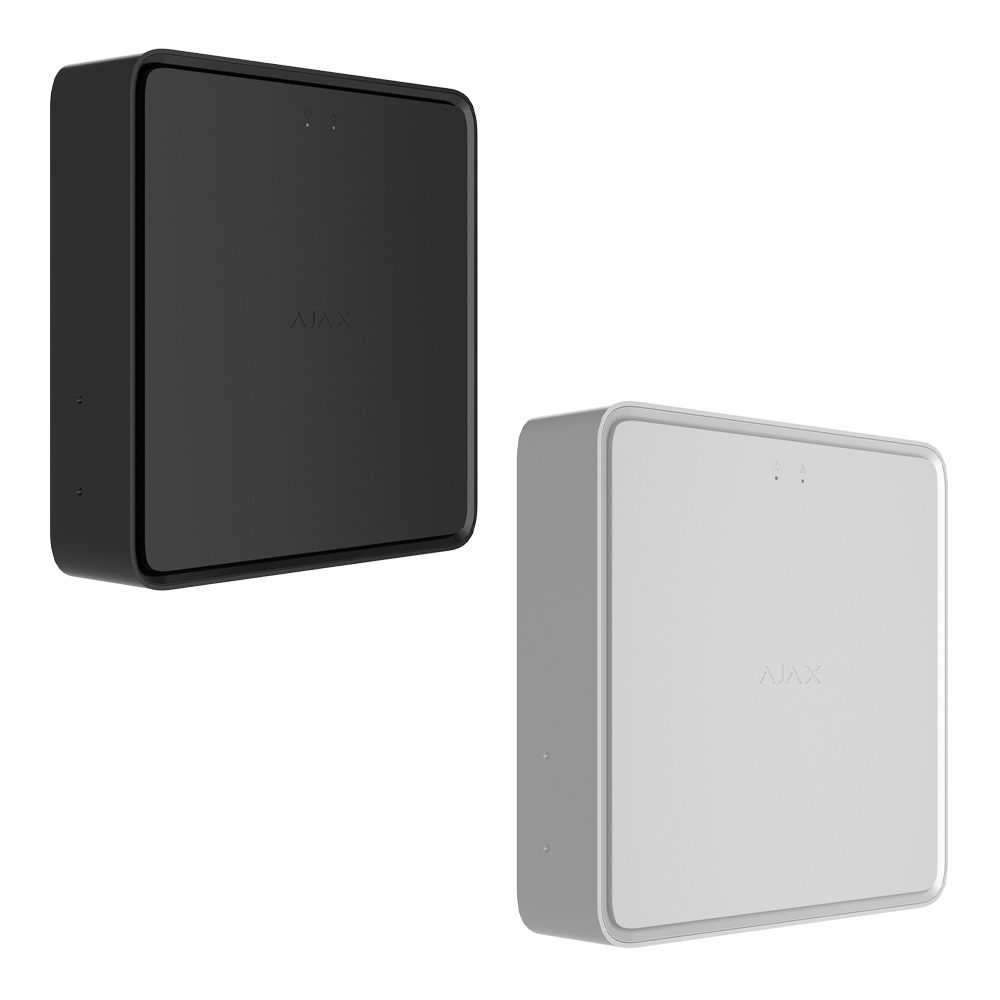

SmartBracket mounting for simplified installation | Tool-free battery replacement | Available in black or white |
Ajax Fire ReX Jeweller Wireless Range Extender - EN54 | |||
Standards Compliance | EN 54-4, EN 54-18, EN 54-25, EN 50131 (Grade 2) | Protection Against Spoofing | Device authentication |
Communication Technologies | Jeweller, Wings | Protection Against Jamming | Radio frequency hopping |
Ethernet | 8P8C socket, up to 100 Mb/s | Main Power Supply | 110–240V, 50/60 Hz |
Communication Range | Up to 1,800m (open space) | Backup Battery (24h) | Li-ion battery, 7.4V, 5 Ah |
Maximum Effective Radiated Power (ERP) | Up to 20 mW | Backup Battery (72h) | Li-ion battery, 7.4V, 10 Ah |
Polling Interval | 12–300 seconds | Operating Temperature | -10°C to +40°C |
Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz | Operating Humidity | Up to 75% non-condensing |
Weight | 890g | Colour | Black, White |
Protection Class | IP20 | Dimensions | 210 × 210 × 50.5mm |
The Ajax Fire ReX Jeweller EN54 Wireless Range Extender is built to broaden the communication reach of compatible Ajax EN54 wireless fire alarm systems, supporting consistent device connectivity across larger or more demanding building environments.
Where structural features, physical obstructions, or greater distances between devices risk affecting wireless signal performance, the Fire ReX Jeweller strengthens overall system resilience by reinforcing the communication link between the control and indicating equipment and the devices connected to it. This makes it a practical addition to large commercial sites, multi-zone installations, and any project where stable wireless communication is a priority.
Operating via Ajax Jeweller and Wings radio technologies, the extender supports a communication range of up to 1,800 metres in open space, helping to overcome coverage gaps without the cost and disruption of additional cabling. Should a connection be interrupted, automatic channel switching works to maintain system continuity without manual intervention.
Installation is kept straightforward through QR code commissioning, with remote configuration and diagnostic testing available through the Ajax apps. The SmartBracket mounting panel allows the unit to be fixed in place without removing the enclosure, and batteries can be swapped without tools, reducing both installation time and ongoing servicing demands.
The Fire ReX Jeweller carries compliance with EN 54-4, EN 54-18, EN 54-25 and EN 50131 (Grade 2), making it appropriate for professional fire alarm installations where adherence to recognised industry standards is required.
Ajax Fire ReX Jeweller Wireless Range Extender - EN54 | ||
Compliant with EN 54 fire alarm standards | Extends communication coverage up to 1,800m in open space | Supports Ajax Jeweller and Wings communication technologies |
Automatic communication channel switching in the event of connection loss | Remote configuration and testing via Ajax apps | QR code setup with no programming tools required |
SmartBracket mounting for simplified installation | Tool-free battery replacement | Available in black or white |
Ajax Fire ReX Jeweller Wireless Range Extender - EN54 | |||
Standards Compliance | EN 54-4, EN 54-18, EN 54-25, EN 50131 (Grade 2) | Protection Against Spoofing | Device authentication |
Communication Technologies | Jeweller, Wings | Protection Against Jamming | Radio frequency hopping |
Ethernet | 8P8C socket, up to 100 Mb/s | Main Power Supply | 110–240V, 50/60 Hz |
Communication Range | Up to 1,800m (open space) | Backup Battery (24h) | Li-ion battery, 7.4V, 5 Ah |
Maximum Effective Radiated Power (ERP) | Up to 20 mW | Backup Battery (72h) | Li-ion battery, 7.4V, 10 Ah |
Polling Interval | 12–300 seconds | Operating Temperature | -10°C to +40°C |
Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz | Operating Humidity | Up to 75% non-condensing |
Weight | 890g | Colour | Black, White |
Protection Class | IP20 | Dimensions | 210 × 210 × 50.5mm |
