C-Tec 4 Zone AlarmSense Bi-Wire Fire Alarm Kit
We Recommend
Bestseller
Bulk Buy Options
Code: FAKIT001/010
INC VAT
Code: FAKIT001/010
The C-Tec 4 Zone Alarmsense Bi-Wire Fire Alarm Kit contains all you need to get an installation underway in one package. Using a C-Tec Alarmsense Panel with Apollo field devices this system is ideal for installing conventional systems where sounders and detectors need to be on the same 2 core cable. Using combined detectors and sounders provides a discreet installation while ensuring adequate sound levels throughout the building.
Choose additional devices from the options box to speed up the ordering process.

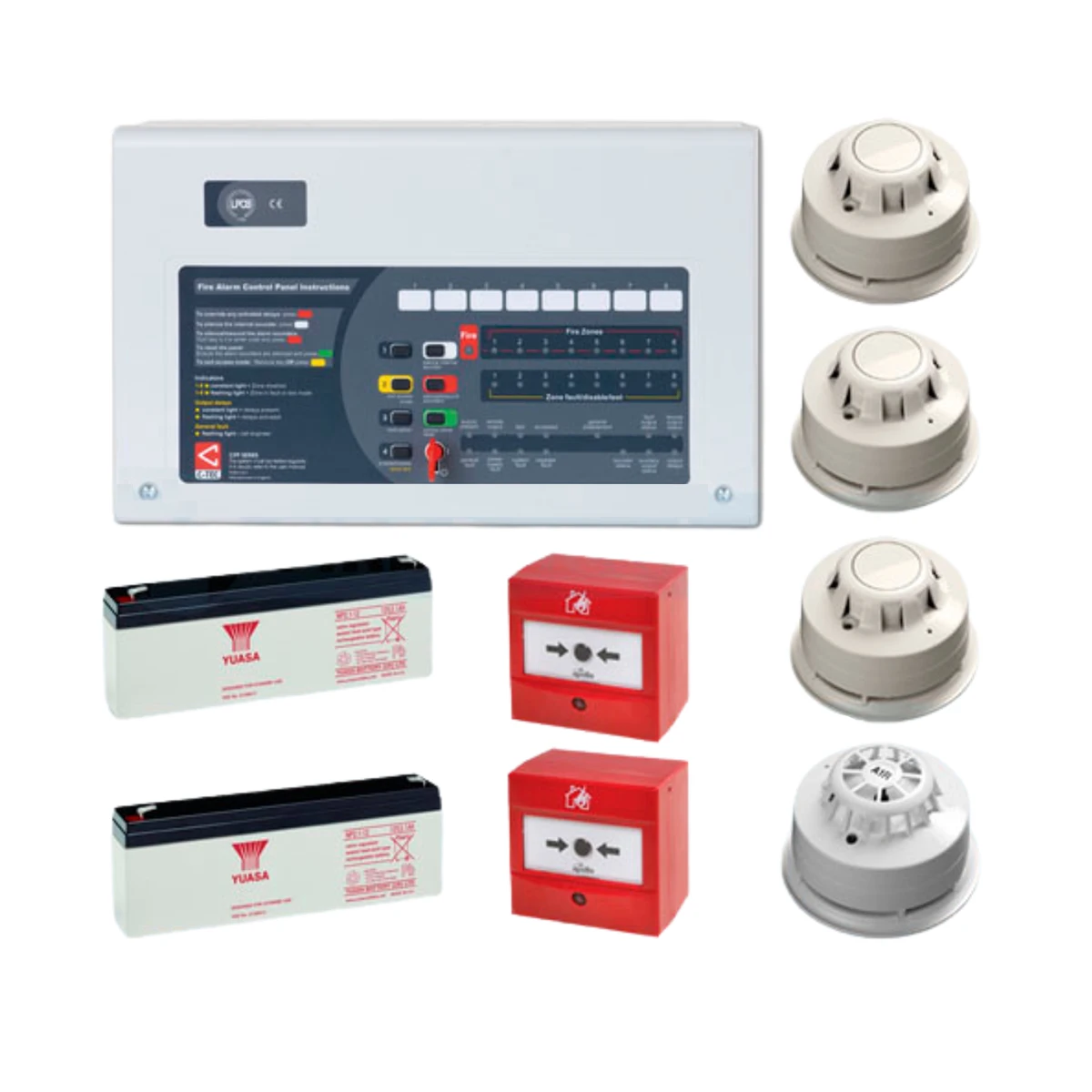

C-Tec 4 Zone AlarmSense Bi-Wire Fire Alarm Kit | ||

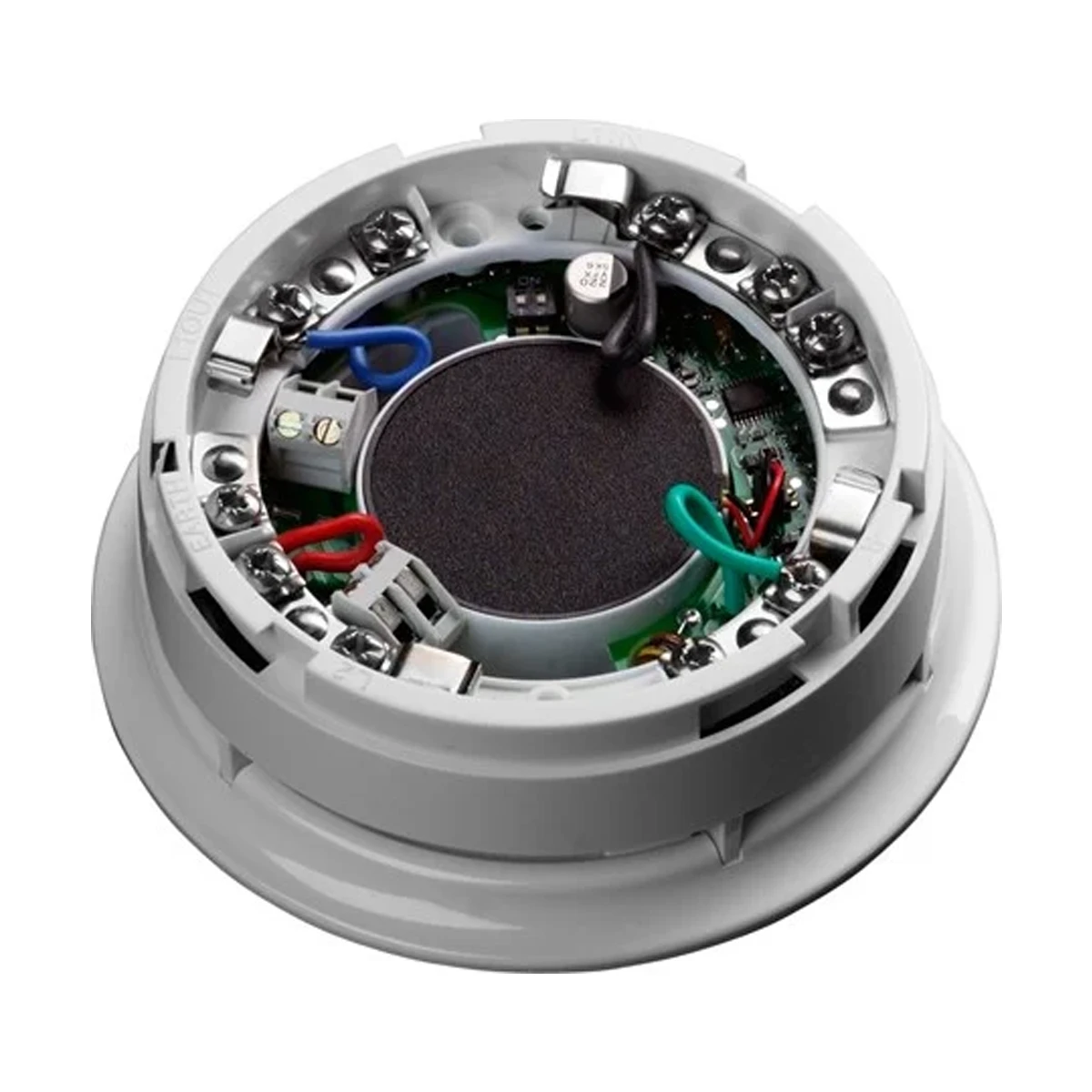

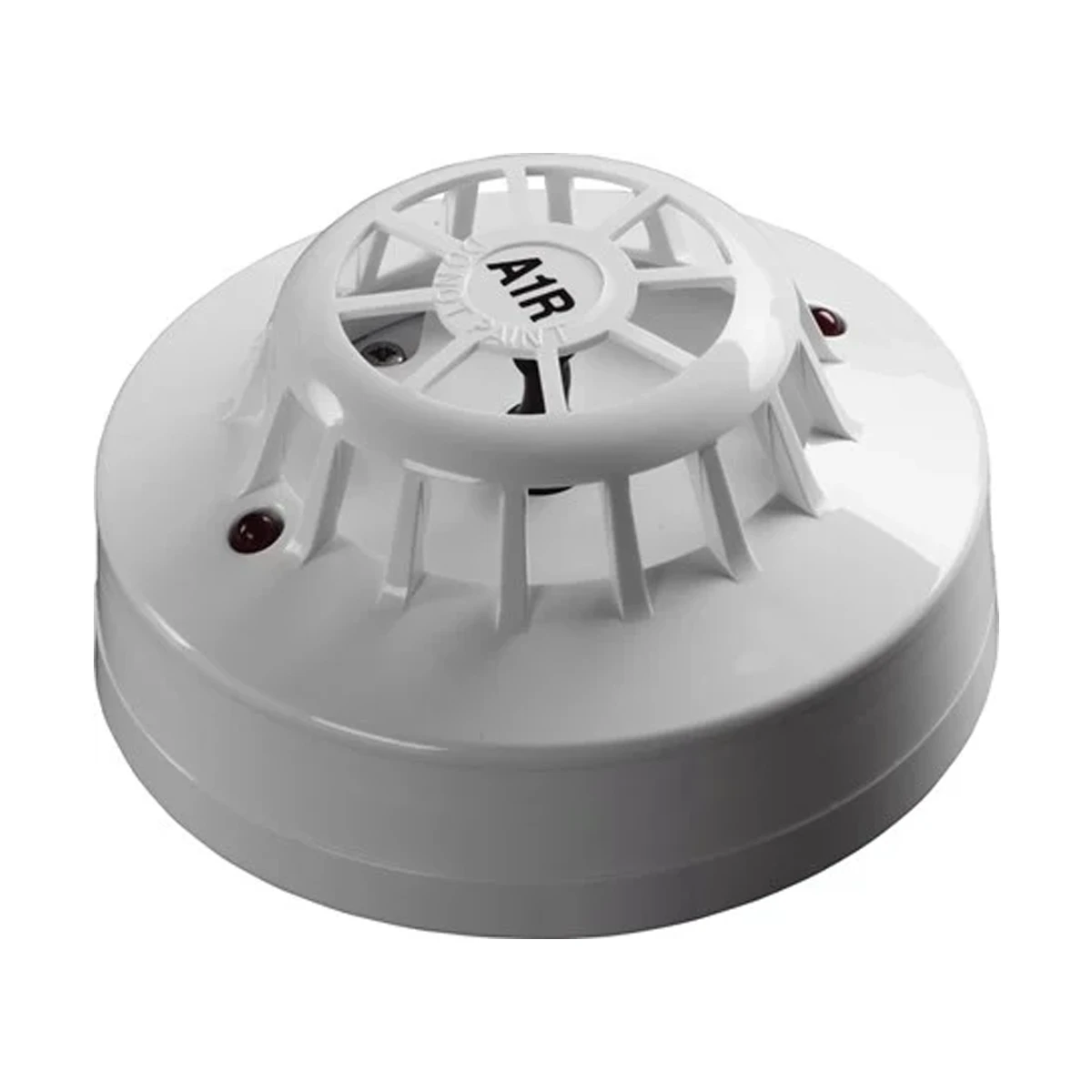

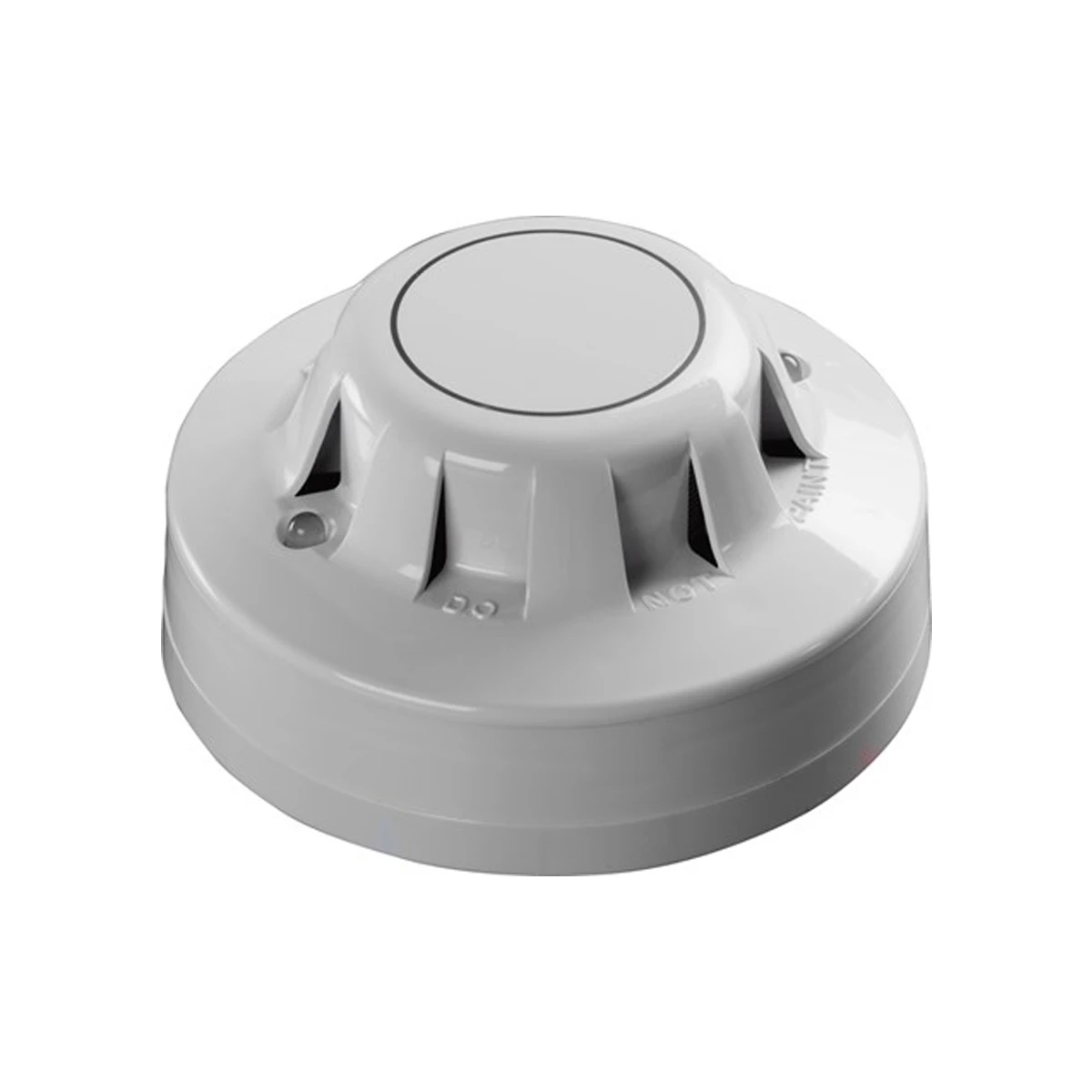

1 x 4 Zone C-Tec Alarmsense EN54 Bi-Wire Fire Alarm Panel | 3 x Apollo Alarmsense Optical Smoke Detector with Sounder Base | 1 x Apollo Alarmsense A1R Heat Detector with Sounder Base |

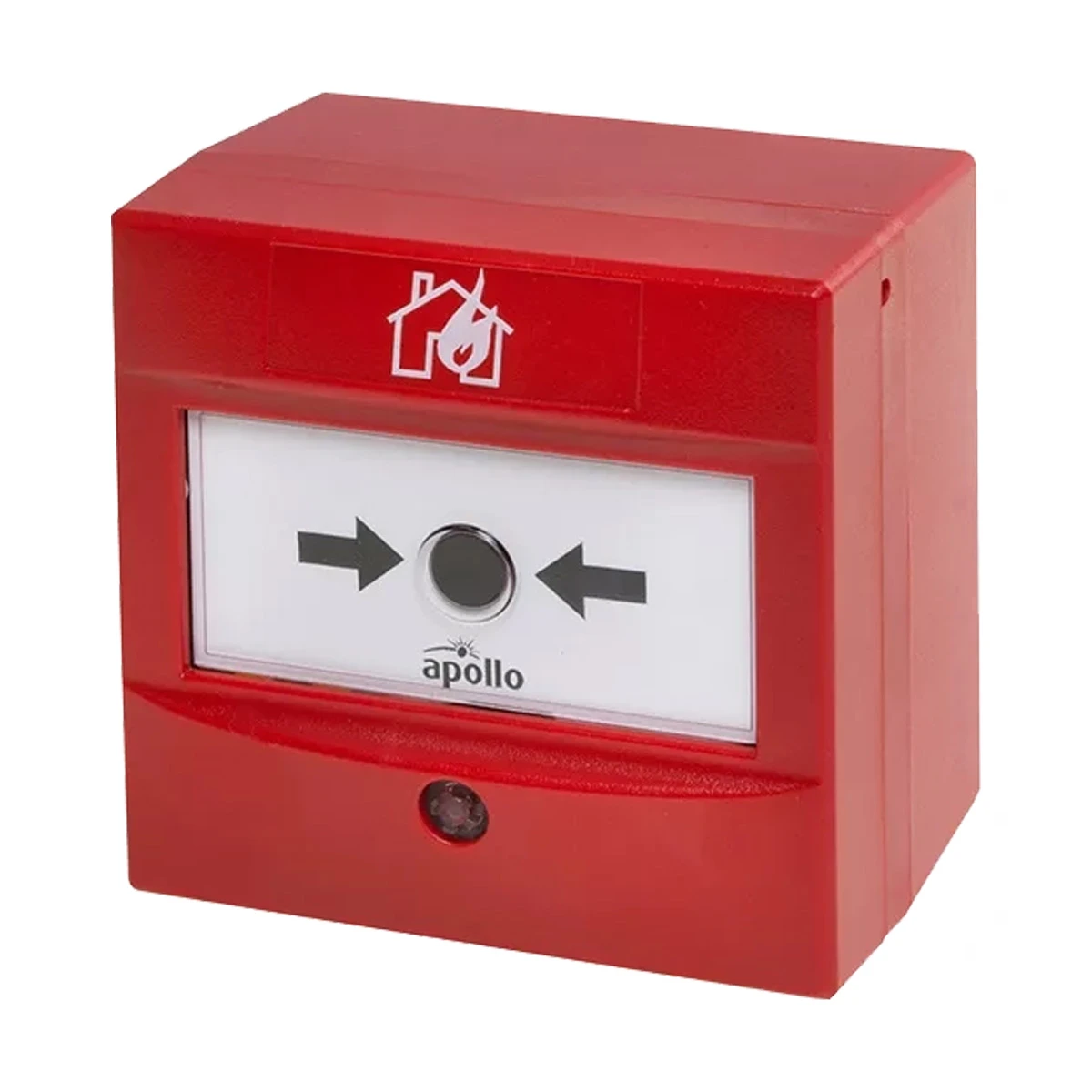

2 x Apollo Alarmsense Manual Call Point | 2 x Yuasa 12v 3.2Ah Sealed Lead Acid Battery | |

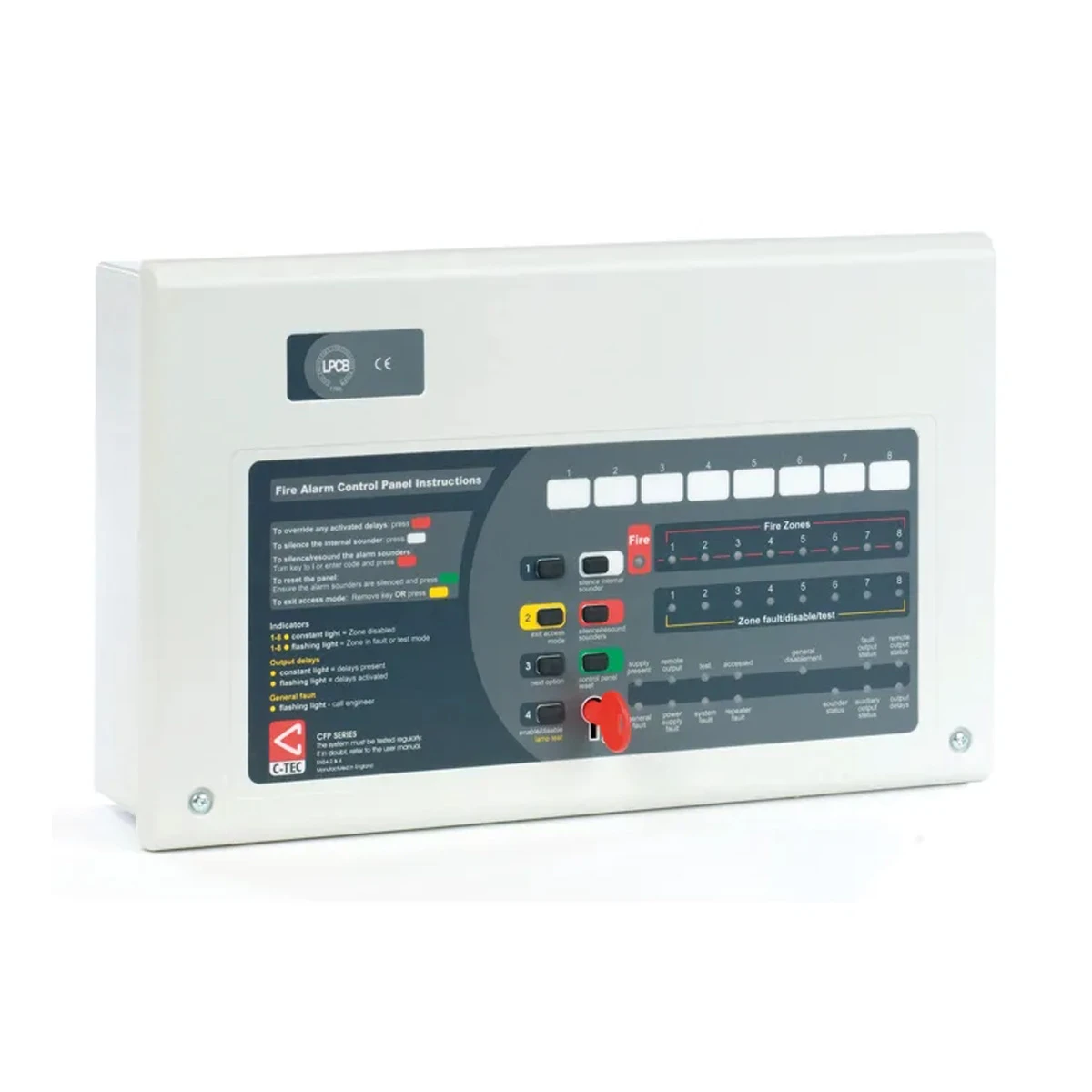

C-Tec 4 Zone AlarmSense Bi-Wire Fire Alarm Panel | |||
Approvals/certifications | Certified to EN54-2 & 4 by the LPCB | Alarm voltage | 27V max, 20V min (final battery voltage) |
Mains supply | 230V 50/60Hz | Auxiliary relays | Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc |
Mains rated current | 350mA maximum | Open collector outputs | Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit volt |
Internal power supply | 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault) | Other outputs | 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed) |
Total output current limited to | 1.5A @ 230Vac (ImaxA eq 146mA) | Auxiliary inputs | Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching) |
Quiescent current | 25mA (mains failed, internal sounder active, PSU & gen fault LED lit) | Engineer (AL3) functions | Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) |
Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah | Expansion connections | Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards |
No. of detector zone circuits | The CFP704-2 has 4 AlarmSense zone circuits which are compatible with Apollo's AlarmSense range of detectors & call points AND sounders & visual indicators. (Max. length per circuit is 500m) | Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required) |
Call point resistor value | Only use AlarmSense call points | Construction & finish | Plastic lid and base; RAL7035 textured |
Max. devices per detector zone | 25 AlarmSense detectors/manual call points per AlarmSense zone. For AlarmSense sounder limitations per AlarmSense zone see 'Max. sounder output current' section | IP Rating | IP30 |
No. of conventional sounder circuits | 4 – these are additional conventional (non-AlarmSense) sounder circuits; Max. length per circuit is 500m | Weight | 1.75kg (without batteries) |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) | ||
The C-Tec 4 Zone Alarmsense Bi-Wire Fire Alarm Kit contains all you need to get an installation underway in one package. Using a C-Tec Alarmsense Panel with Apollo field devices this system is ideal for installing conventional systems where sounders and detectors need to be on the same 2 core cable. Using combined detectors and sounders provides a discreet installation while ensuring adequate sound levels throughout the building.
Choose additional devices from the options box to speed up the ordering process.
C-Tec 4 Zone AlarmSense Bi-Wire Fire Alarm Kit | ||
1 x 4 Zone C-Tec Alarmsense EN54 Bi-Wire Fire Alarm Panel | 3 x Apollo Alarmsense Optical Smoke Detector with Sounder Base | 1 x Apollo Alarmsense A1R Heat Detector with Sounder Base |
2 x Apollo Alarmsense Manual Call Point | 2 x Yuasa 12v 3.2Ah Sealed Lead Acid Battery | |
C-Tec 4 Zone AlarmSense Bi-Wire Fire Alarm Panel | |||
Approvals/certifications | Certified to EN54-2 & 4 by the LPCB | Alarm voltage | 27V max, 20V min (final battery voltage) |
Mains supply | 230V 50/60Hz | Auxiliary relays | Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc |
Mains rated current | 350mA maximum | Open collector outputs | Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit volt |
Internal power supply | 19V-28.5V (27V nominal). Ripple 7V maximum (battery fault) | Other outputs | 24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed) |
Total output current limited to | 1.5A @ 230Vac (ImaxA eq 146mA) | Auxiliary inputs | Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching) |
Quiescent current | 25mA (mains failed, internal sounder active, PSU & gen fault LED lit) | Engineer (AL3) functions | Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) |
Max battery size and type | 2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah | Expansion connections | Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards |
No. of detector zone circuits | The CFP704-2 has 4 AlarmSense zone circuits which are compatible with Apollo's AlarmSense range of detectors & call points AND sounders & visual indicators. (Max. length per circuit is 500m) | Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required) |
Call point resistor value | Only use AlarmSense call points | Construction & finish | Plastic lid and base; RAL7035 textured |
Max. devices per detector zone | 25 AlarmSense detectors/manual call points per AlarmSense zone. For AlarmSense sounder limitations per AlarmSense zone see 'Max. sounder output current' section | IP Rating | IP30 |
No. of conventional sounder circuits | 4 – these are additional conventional (non-AlarmSense) sounder circuits; Max. length per circuit is 500m | Weight | 1.75kg (without batteries) |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) | ||
