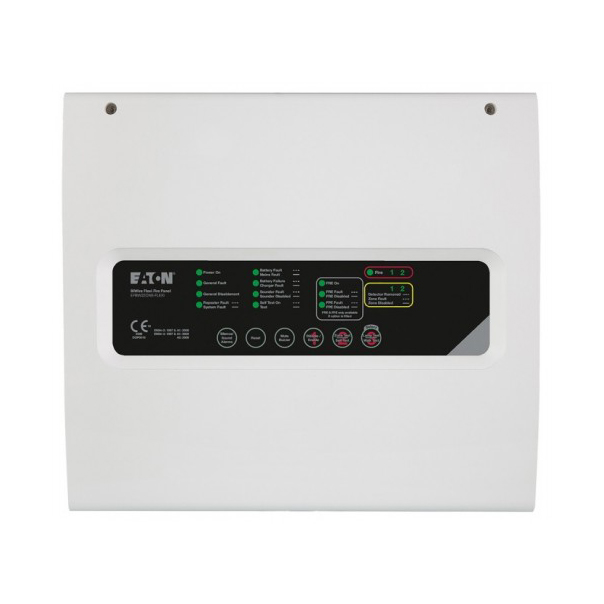

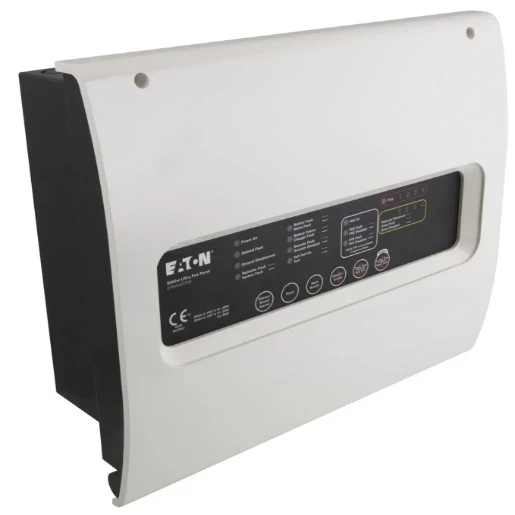

Eaton Flexi Bi-Wire & Conventional Fire Alarm Control Panel
Code: FPS004/001
from
INC VAT
Code: FPS004/001
The Eaton Bi-Wire Flexi Fire Alarm Panel delivers a versatile solution by supporting both two-wire and traditional conventional setups within a single system.
Each zone can be set up independently to work with either wiring method, giving you the freedom to combine standard and two-wire devices throughout the site. This makes the panel a strong choice for new installations as well as upgrades where existing cables or detectors need to be reused.
Its interface matches the familiar layout of Eaton’s 8-zone conventional panel, helping installers complete configuration and servicing with ease.
Compliant with EN54 Parts 2 and 4, and designed in line with BS 5839 guidance, the Bi-Wire Flexi provides reliable fire detection which aligns with current UK fire safety standards.
Whether you want to save time with two-wire circuits or need to incorporate specialised conventional devices, the panel adjusts to the requirements of the project.
Eaton Flexi Bi-Wire & Conventional Fire Alarm Control Panel | ||
Supports conventional & two-wire detection on the same system | Each zone is configurable independently | Compatible with a wide range of devices |
Easy-to-use interface for fast setup and servicing | Ideal for mixed-system upgrades and phased retrofits | Certified to EN54 Parts 2 & 4 |
Meets BS 5839 fire safety recommendations | Reliable fire detection that complies with UK standards | Allows you to mix conventional and two-wire devices across your install |
Specification | 2 Zone Panel | 4 Zone Panel | 8 Zone Panel |
|---|---|---|---|
Reference | EFW2Z-FLEXI | EFW4Z-FLEXI | EFW8Z-FLEXI |
Description | 2 zone panel | 4 zone panel | 8 zone panel |
Input Voltage Range | 18.75–30 V DC | ||
Max Current Drawn From Battery | 2.7 A | ||
Number of Zones | 2 | 4 | 8 |
Devices Per Zone | Bi-Wire: Max 32 Bi-Wire Detectors & MCPs incl. sounders (≤200mA) Conventional: Max 32 Conv Devices & MCPs | ||
Max Loading Per Zone | 200 mA | ||
Standby Zone Voltage | Vmin 19V DC, Vmax 23V DC | ||
Alarm Zone Voltage | Vmin 31V DC, Vmax 33V DC | ||
Zone Fuse Protection | 250 mA PTC | ||
End of Line Termination | Bi-Wire: EOLM-3 Conventional: 4k7Ω or EOLM-1/3 | ||
Sounder Circuits | 2 circuits (Bi-Wire or Conv) | 2 circuits (Bi-Wire or Conv) | 2 circuits in Bi-Wire, 4 circuits in Conv |
Sounder Fuse Protection | 250 mA PTC | ||
Sounder EOL Termination | 6k8Ω | ||
Relay Outputs | Volt-free SPDT (30V DC, 1A) | ||
Relay Output Fuse | 500 mA PTC | ||
Aux Output Voltage | 11.6–13.0 V | ||
Aux Output Current (max) | 500 mA | ||
Aux Output Fuse | 500 mA PTC | ||
Class Change Input | Open = Normal, Short = All Sounders | ||
Repeater Port | RS485 | ||
Node ID | 1 | ||
Operating Temp | -5°C to +40°C | ||
Humidity | 93% ±3% non-condensing | ||
IP Rating | IP30 | ||
Weight (excl. batteries) | 2.25 kg | ||
Material | PC ABS Front and Rear | ||
Cable Access | 29x 20mm drill positions | ||
Cable Type | FT120 (Fitted/Optional) | ||
Loop Cable | 2-core (1.5–2.5 mm²), 500m max | ||
Standards | EN54-2 & -4, BS5839 pt1 | ||
