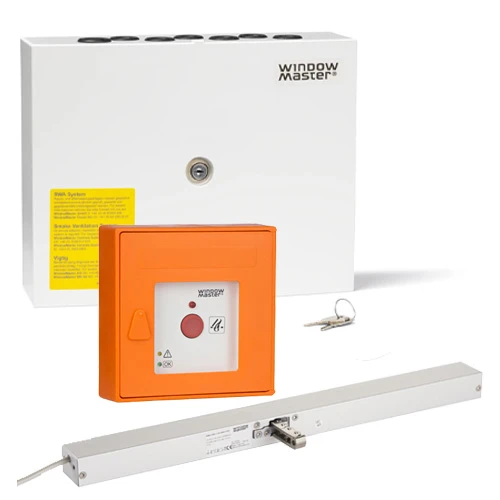

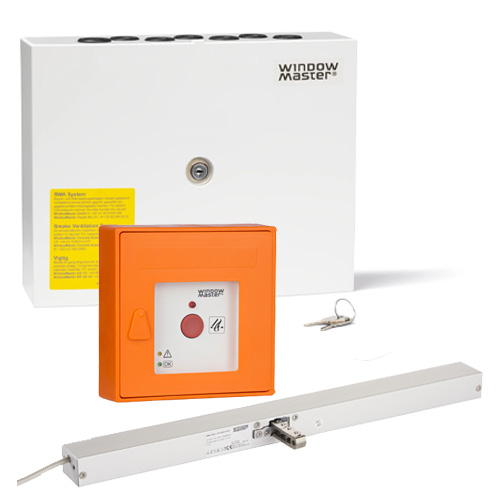

WSC104 Single Zone Fire Alarm Interfaced AOV Kit with Call Point, Actuator & Fire Alarm Module
Code: FPS/331KIT
INC VAT
Code: FPS/331KIT
Exclusive to Fire Detection Shop, the WSC104 Single Zone Automatic Opening Vent Kit provides everything you need to connect a fire alarm panel to a third-party automatic opening vent.
Designed for straightforward ordering and installation, this kit is ideal for smoke ventilation applications in commercial and residential buildings.
WSC104 AOV Controller: Opens actuators during smoke. Includes fire alarm module which allows a smoke detector input to be used for transmitting on a signal from an external fire detecting system (ASV).
WSK503 AOV Manual Call Point: Provides open/close and reset facility. Requires 6 cores for full led indication.
WMU 836 600mm Actuator: 300N, 600mm stroke chain actuator for use as an AOV actuator on most windows and lightweight roof vents and domes.
WAB 836B Brackets: Motor bracket for chain actuators, suitable for all window types.
WAB 836E Bracket: window fixing bracket for chain
Complete single zone AOV kit in one package
Simple connection to fire alarm panels
Controller accepts smoke detector inputs from external systems
Manual call point with open, close and reset functions
Full LED indication when wired with 6-core cable
300N chain actuator with 600mm stroke for reliable vent operation
Suitable for windows
Includes universal motor and window fixing brackets
Ideal for smoke ventilation in commercial and residential settings
Exclusive to Fire Detection Shop, the WSC104 Single Zone Automatic Opening Vent Kit provides everything you need to connect a fire alarm panel to a third-party automatic opening vent.
Designed for straightforward ordering and installation, this kit is ideal for smoke ventilation applications in commercial and residential buildings.
WSC104 AOV Controller: Opens actuators during smoke. Includes fire alarm module which allows a smoke detector input to be used for transmitting on a signal from an external fire detecting system (ASV).
WSK503 AOV Manual Call Point: Provides open/close and reset facility. Requires 6 cores for full led indication.
WMU 836 600mm Actuator: 300N, 600mm stroke chain actuator for use as an AOV actuator on most windows and lightweight roof vents and domes.
WAB 836B Brackets: Motor bracket for chain actuators, suitable for all window types.
WAB 836E Bracket: window fixing bracket for chain
Complete single zone AOV kit in one package
Simple connection to fire alarm panels
Controller accepts smoke detector inputs from external systems
Manual call point with open, close and reset functions
Full LED indication when wired with 6-core cable
300N chain actuator with 600mm stroke for reliable vent operation
Suitable for windows
Includes universal motor and window fixing brackets
Ideal for smoke ventilation in commercial and residential settings
