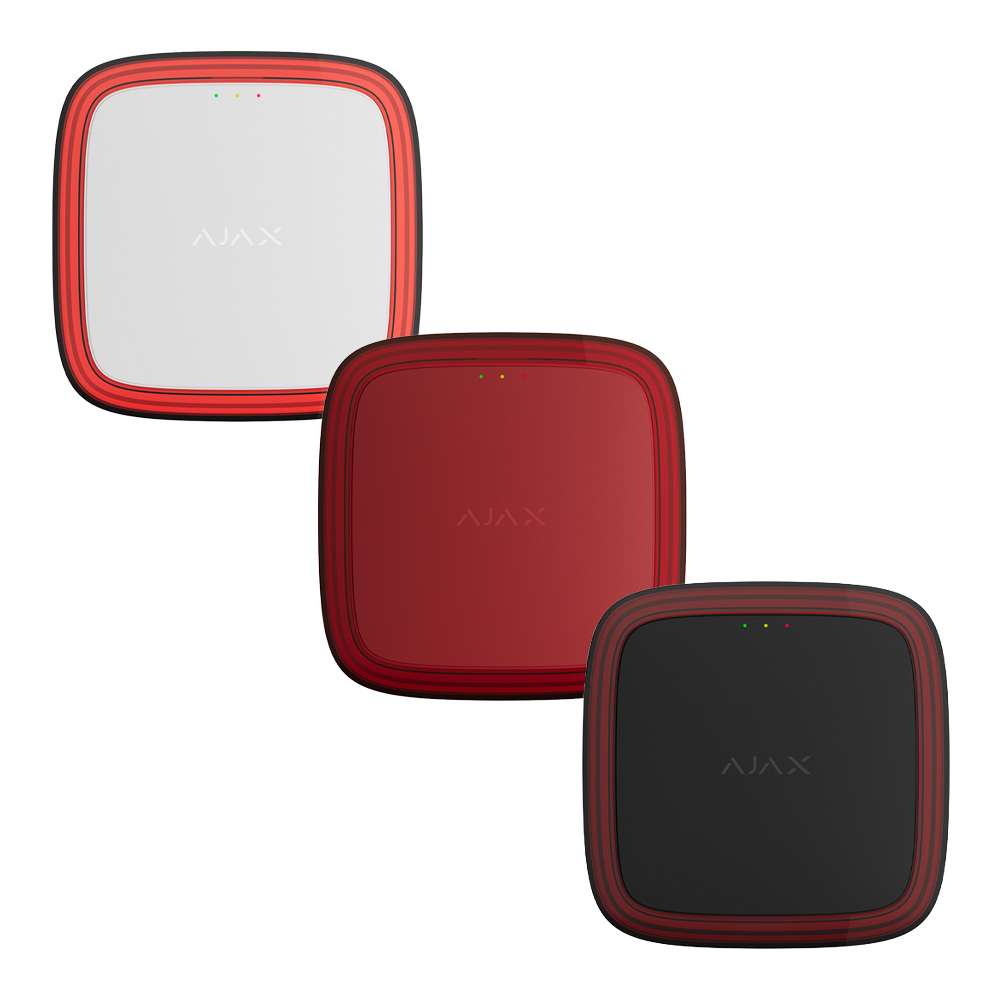

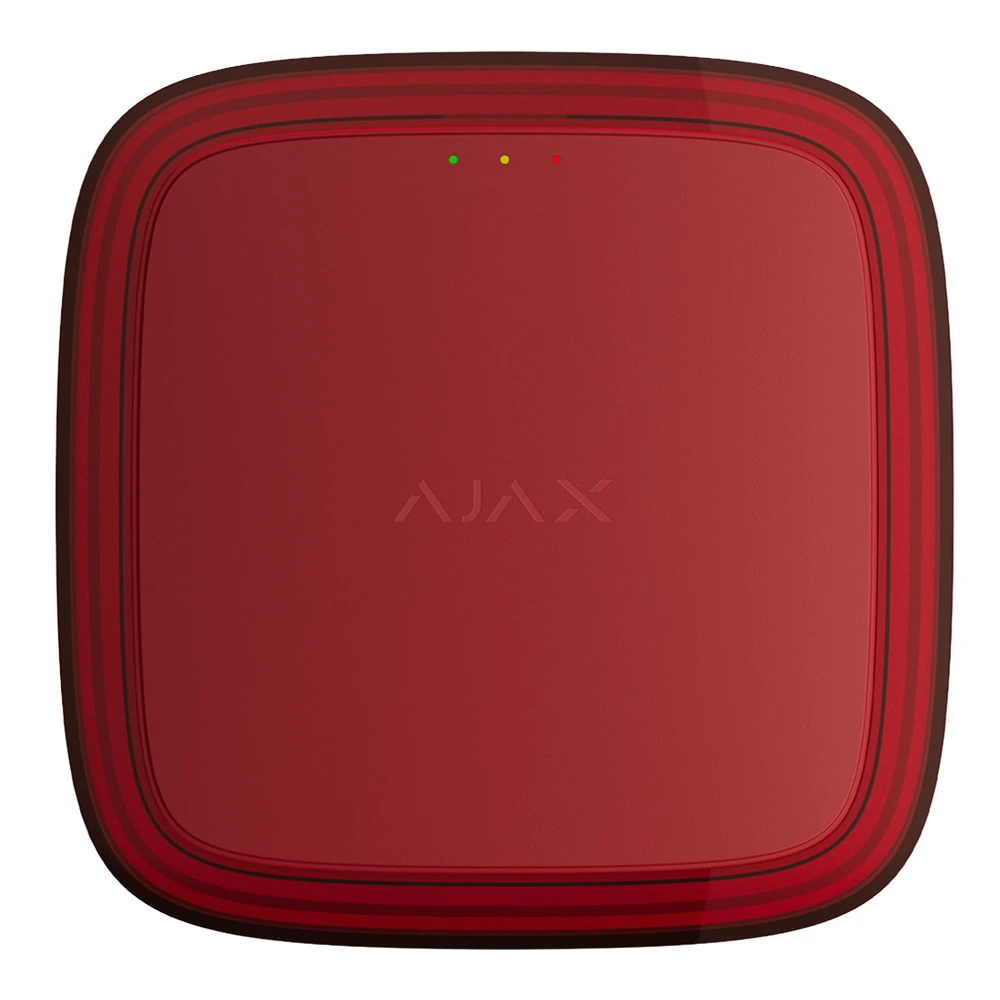

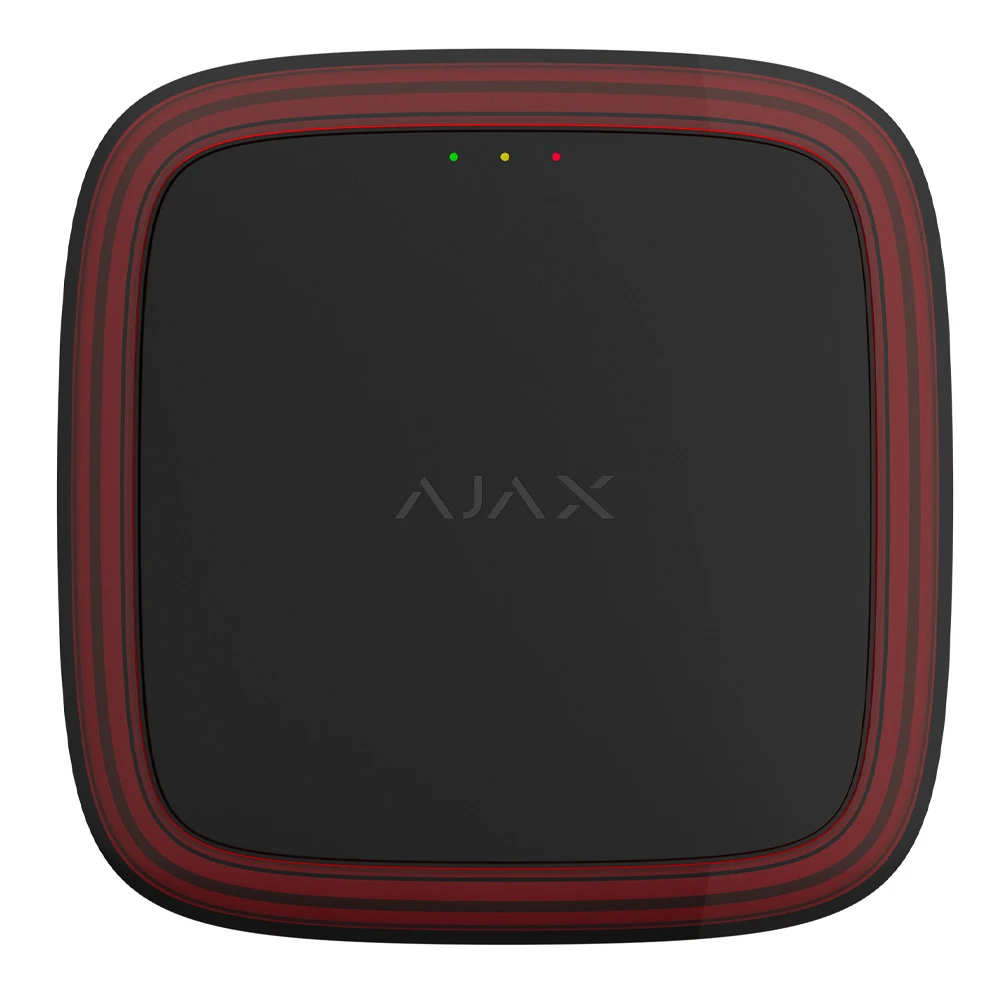

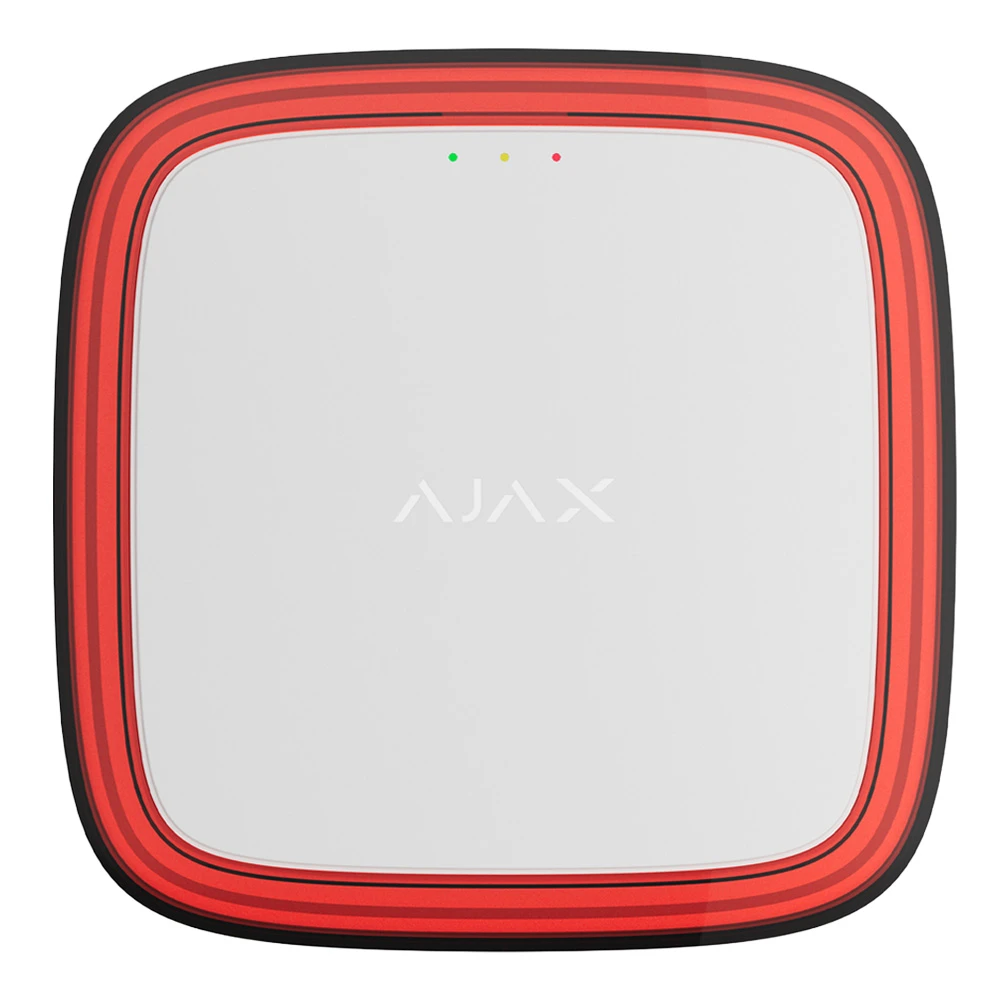

Ajax FireProtect Jeweller Sounder VAD - Wireless Addressable EN54
Code: FPS002/987
from
INC VAT
Code: FPS002/987
The Ajax FireProtect Jeweller EN54 Wireless Addressable Sounder/VAD combines audible and visual alarm notification in a single wireless unit, making it a practical choice for professional fire alarm installations that require both functions.
Compatible with Ajax EN54 wireless fire alarm systems, it suits commercial premises, larger buildings, and refurbishment projects where keeping cabling to a minimum is a priority. Consolidating two notification functions into one device simplifies system design, lowers device count, and reduces installation time.
Audible output reaches up to 100dB at 1 metre, with adjustable volume and 32 selectable tones for site-specific configuration. Visual notification is handled by an integrated LED alarm frame, covering applications where both audible and visual signalling are required.
The flash sequence is 90ms on and 1,910ms off, running a 2,000ms cycle at 0.5Hz. For ceiling mounting at 3m, the coverage diameter is 8m; wall mounting at 2.4m gives a coverage volume of 2.4m × 8.2m × 8.2m.
Wireless communication uses Ajax's Jeweller protocol, achieving up to 1,700 metres in open space with compatible control equipment. Alarm activation occurs within 3 seconds of an event. Commissioning is supported via QR code setup, app-based configuration, and SmartBracket mounting, with tool-free battery replacement for straightforward servicing.
Pre-installed batteries are rated for up to 5 years, supporting reliable long-term operation with minimal maintenance overhead.
Ajax FireProtect Jeweller Sounder VAD - Wireless Addressable EN54 | ||
Wireless addressable fire alarm sounder and VAD | Combined audible and visual alarm notification | EN 54-3 and EN 54-23 compliant signalling |
Up to 100dB audible output at 1 metre | 32 selectable alarm tones | High-visibility LED visual alarm frame |
Ceiling and wall mounting options | Ajax Jeweller wireless communication technology | Up to 1,700m wireless communication range in open space |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller Sounder VAD - Wireless Addressable EN54 | |||
Audible Output | Up to 100dB at 1m | Certification | BOSEC |
Alarm Tones | 32 selectable tones | Communication Technology | Ajax Jeweller |
Alarm Activation Time | Within 3 seconds after alarm | Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz |
Visual Alarm Type | LED frame | Maximum Effective Radiated Power (ERP) | Up to 20mW |
Flash Sequence | 90ms ON / 1,910ms OFF | Communication Range | Up to 1,700m in open space |
Cycle Duration | 2,000ms | Battery Type | 4 x CR123A (pre-installed) |
Flash Frequency | 0.5Hz | Battery Life | Up to 5 years |
Ceiling Coverage Diameter | 8m | Operating Temperature | -10°C to +60°C |
Ceiling Installation Height | 3m | Operating Humidity | Up to 95% |
Wall Coverage Volume | 2.4m x 8.2m x 8.2m | Body Colour Options | Black, White, Red |
Wall Installation Height | 2.4m | Dimensions | 145 × 145 × 51mm |
Standard Compliance | EN 54-3, EN 54-23, EN 54-25 | Weight | 561g |
Directive Compliance | 2014/53/EU (RED) | Protection Class | IP54 |
The Ajax FireProtect Jeweller EN54 Wireless Addressable Sounder/VAD combines audible and visual alarm notification in a single wireless unit, making it a practical choice for professional fire alarm installations that require both functions.
Compatible with Ajax EN54 wireless fire alarm systems, it suits commercial premises, larger buildings, and refurbishment projects where keeping cabling to a minimum is a priority. Consolidating two notification functions into one device simplifies system design, lowers device count, and reduces installation time.
Audible output reaches up to 100dB at 1 metre, with adjustable volume and 32 selectable tones for site-specific configuration. Visual notification is handled by an integrated LED alarm frame, covering applications where both audible and visual signalling are required.
The flash sequence is 90ms on and 1,910ms off, running a 2,000ms cycle at 0.5Hz. For ceiling mounting at 3m, the coverage diameter is 8m; wall mounting at 2.4m gives a coverage volume of 2.4m × 8.2m × 8.2m.
Wireless communication uses Ajax's Jeweller protocol, achieving up to 1,700 metres in open space with compatible control equipment. Alarm activation occurs within 3 seconds of an event. Commissioning is supported via QR code setup, app-based configuration, and SmartBracket mounting, with tool-free battery replacement for straightforward servicing.
Pre-installed batteries are rated for up to 5 years, supporting reliable long-term operation with minimal maintenance overhead.
Ajax FireProtect Jeweller Sounder VAD - Wireless Addressable EN54 | ||
Wireless addressable fire alarm sounder and VAD | Combined audible and visual alarm notification | EN 54-3 and EN 54-23 compliant signalling |
Up to 100dB audible output at 1 metre | 32 selectable alarm tones | High-visibility LED visual alarm frame |
Ceiling and wall mounting options | Ajax Jeweller wireless communication technology | Up to 1,700m wireless communication range in open space |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller Sounder VAD - Wireless Addressable EN54 | |||
Audible Output | Up to 100dB at 1m | Certification | BOSEC |
Alarm Tones | 32 selectable tones | Communication Technology | Ajax Jeweller |
Alarm Activation Time | Within 3 seconds after alarm | Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz |
Visual Alarm Type | LED frame | Maximum Effective Radiated Power (ERP) | Up to 20mW |
Flash Sequence | 90ms ON / 1,910ms OFF | Communication Range | Up to 1,700m in open space |
Cycle Duration | 2,000ms | Battery Type | 4 x CR123A (pre-installed) |
Flash Frequency | 0.5Hz | Battery Life | Up to 5 years |
Ceiling Coverage Diameter | 8m | Operating Temperature | -10°C to +60°C |
Ceiling Installation Height | 3m | Operating Humidity | Up to 95% |
Wall Coverage Volume | 2.4m x 8.2m x 8.2m | Body Colour Options | Black, White, Red |
Wall Installation Height | 2.4m | Dimensions | 145 × 145 × 51mm |
Standard Compliance | EN 54-3, EN 54-23, EN 54-25 | Weight | 561g |
Directive Compliance | 2014/53/EU (RED) | Protection Class | IP54 |
