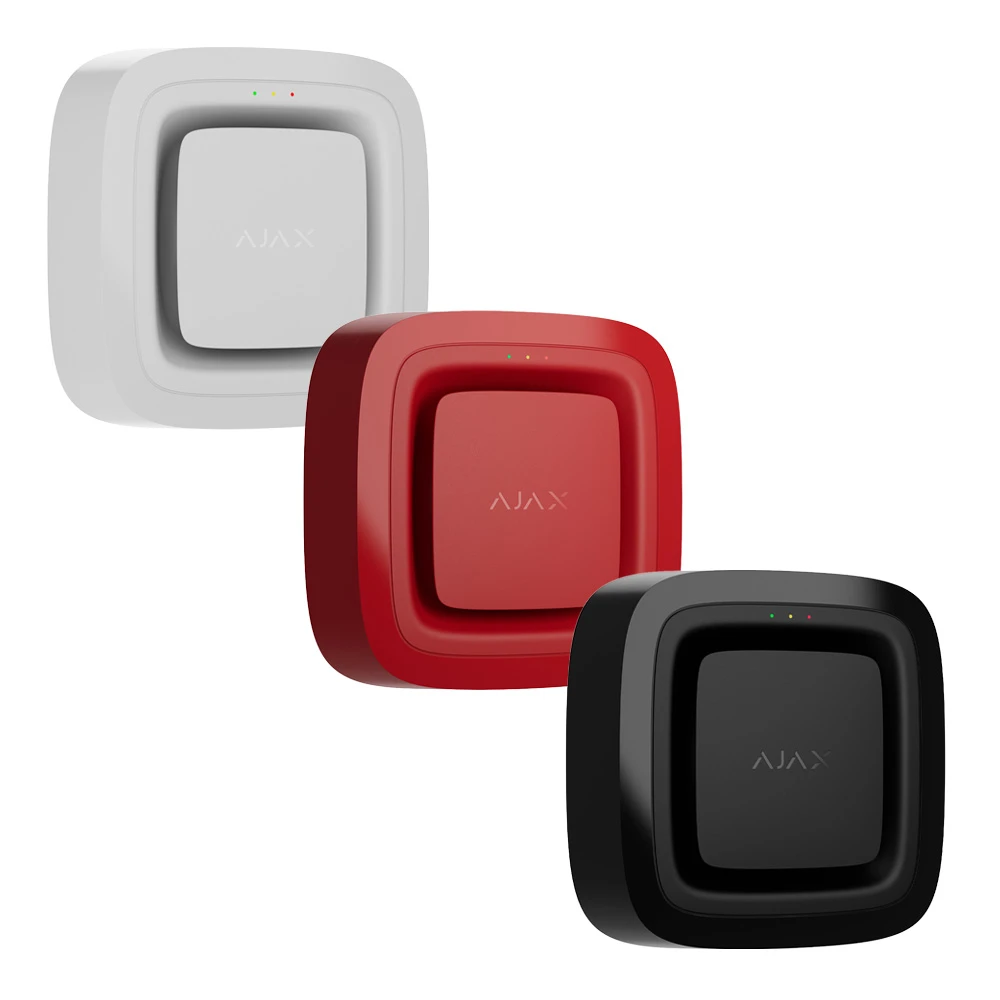

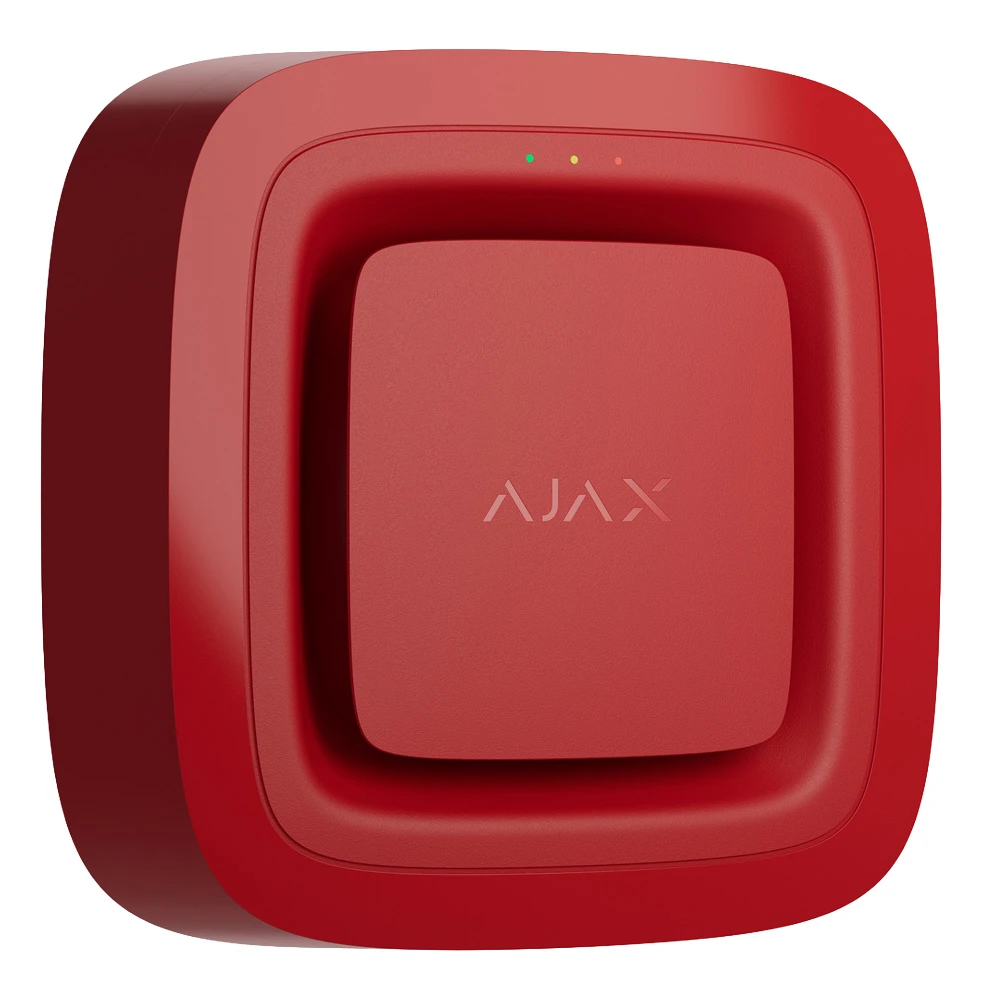

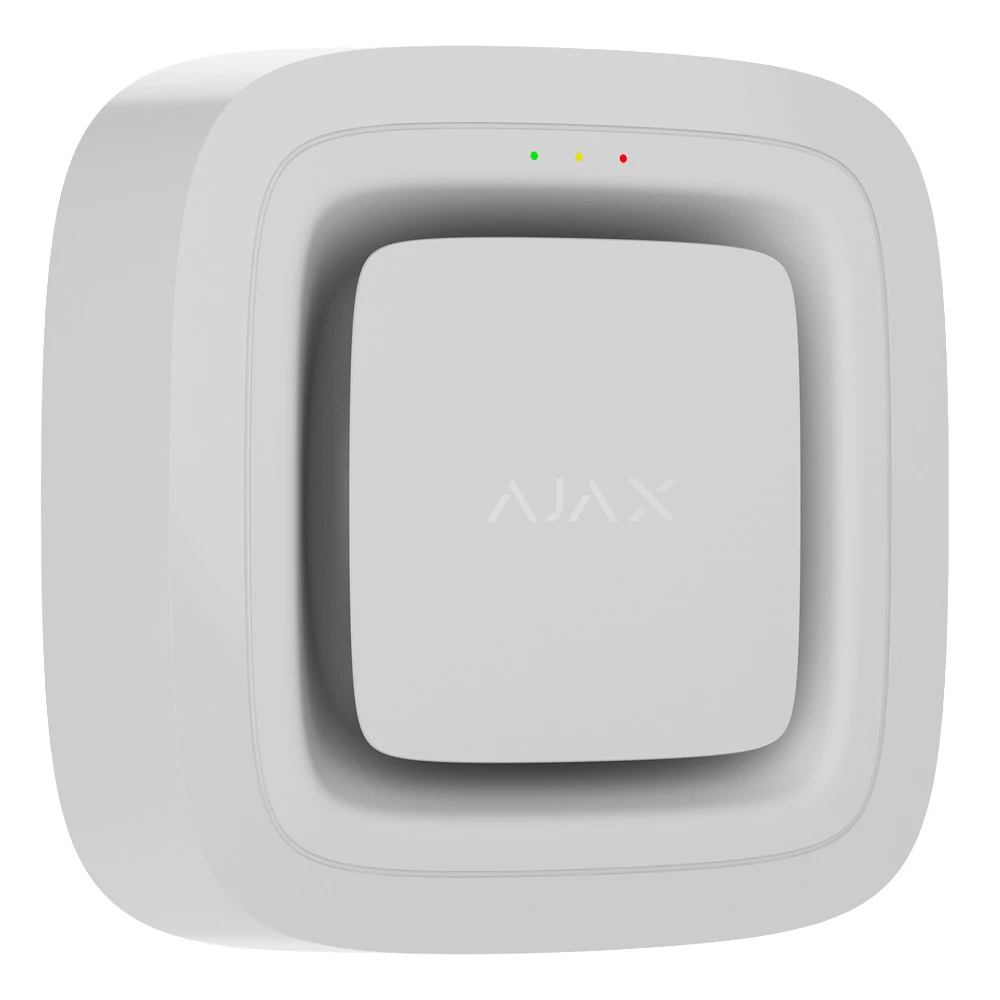

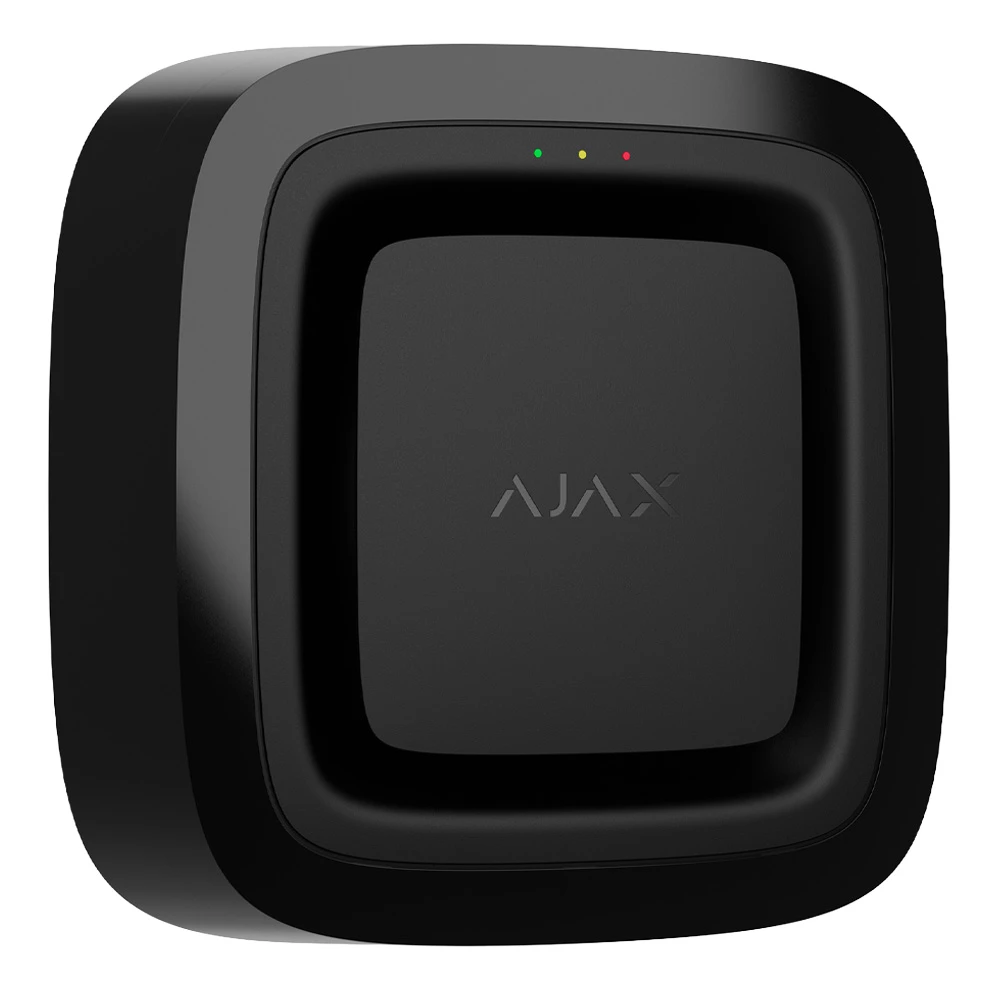

Ajax FireProtect Jeweller Sounder - Wireless Addressable EN54
Code: FPS002/981
from
INC VAT
Code: FPS002/981
The Ajax FireProtect Jeweller EN54 Wireless Addressable Sounder is a wireless sounder fire alarm device for use within compatible Ajax EN54 fire alarm systems.
Aimed at commercial installations, it suits scenarios where minimising cabling disruption is important, including refurbishment work, complex building layouts, and sites where running traditional wired devices would be impractical. It forms part of the broader Ajax wireless fire alarm ecosystem.
The sounder produces up to 100dB at 1 metre, with adjustable volume and a choice of 32 tones, allowing installers to tailor audible output to the needs of each site.
Communication is handled via Ajax's Jeweller wireless protocol, achieving ranges of up to 1,700 metres in open space when paired with compatible control equipment. Alarm activation takes place within 3 seconds of an event being triggered.
On the installation side, the device supports QR code commissioning, app-based configuration and testing, and SmartBracket mounting. Batteries come pre-installed and are tool-free to replace, with a rated life of up to 5 years.
The sounder holds EN 54-3 and EN 54-25 compliance, along with BOSEC certification, making it suitable for recognised professional fire alarm applications.
Ajax FireProtect Jeweller Sounder - Wireless Addressable EN54 | ||
Wireless addressable fire alarm sounder | EN 54 compliant for professional fire alarm applications | Ajax Jeweller wireless communication technology |
Wireless communication range up to 1,700m in open space | Activation within 3 seconds of the alarm event | Up to 100dB audible output at 1 metre |
Adjustable sound volume | 32 selectable alarm tones | QR code setup and app-based configuration |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller Sounder - Wireless Addressable EN54 | |||
Audible Output | Up to 100dB at 1m | Communication Range | Up to 1,700m in open space |
Alarm Tones | 32 selectable tones | Battery Type | 4 x CR123A (pre-installed) |
Alarm Activation Time | Within 3 seconds after alarm | Battery Life | Up to 5 years |
Standard Compliance | EN 54-3, EN 54-25 | Operating Temperature | -10°C to +60°C |
Directive Compliance | 2014/53/EU (RED) | Operating Humidity | Up to 95% |
Certification | BOSEC | Colour Options | Black, White, Red |
Communication Technology | Ajax Jeweller | Dimensions | 145 × 145 × 51mm |
Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz | Weight | 527g |
Maximum Effective Radiated Power (ERP) | Up to 20mW | Protection Class | IP54 |
The Ajax FireProtect Jeweller EN54 Wireless Addressable Sounder is a wireless sounder fire alarm device for use within compatible Ajax EN54 fire alarm systems.
Aimed at commercial installations, it suits scenarios where minimising cabling disruption is important, including refurbishment work, complex building layouts, and sites where running traditional wired devices would be impractical. It forms part of the broader Ajax wireless fire alarm ecosystem.
The sounder produces up to 100dB at 1 metre, with adjustable volume and a choice of 32 tones, allowing installers to tailor audible output to the needs of each site.
Communication is handled via Ajax's Jeweller wireless protocol, achieving ranges of up to 1,700 metres in open space when paired with compatible control equipment. Alarm activation takes place within 3 seconds of an event being triggered.
On the installation side, the device supports QR code commissioning, app-based configuration and testing, and SmartBracket mounting. Batteries come pre-installed and are tool-free to replace, with a rated life of up to 5 years.
The sounder holds EN 54-3 and EN 54-25 compliance, along with BOSEC certification, making it suitable for recognised professional fire alarm applications.
Ajax FireProtect Jeweller Sounder - Wireless Addressable EN54 | ||
Wireless addressable fire alarm sounder | EN 54 compliant for professional fire alarm applications | Ajax Jeweller wireless communication technology |
Wireless communication range up to 1,700m in open space | Activation within 3 seconds of the alarm event | Up to 100dB audible output at 1 metre |
Adjustable sound volume | 32 selectable alarm tones | QR code setup and app-based configuration |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller Sounder - Wireless Addressable EN54 | |||
Audible Output | Up to 100dB at 1m | Communication Range | Up to 1,700m in open space |
Alarm Tones | 32 selectable tones | Battery Type | 4 x CR123A (pre-installed) |
Alarm Activation Time | Within 3 seconds after alarm | Battery Life | Up to 5 years |
Standard Compliance | EN 54-3, EN 54-25 | Operating Temperature | -10°C to +60°C |
Directive Compliance | 2014/53/EU (RED) | Operating Humidity | Up to 95% |
Certification | BOSEC | Colour Options | Black, White, Red |
Communication Technology | Ajax Jeweller | Dimensions | 145 × 145 × 51mm |
Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz | Weight | 527g |
Maximum Effective Radiated Power (ERP) | Up to 20mW | Protection Class | IP54 |
