Ajax FireProtect Jeweller VAD - Wireless Addressable EN54
Code: FPS002/982
from
INC VAT
Code: FPS002/982

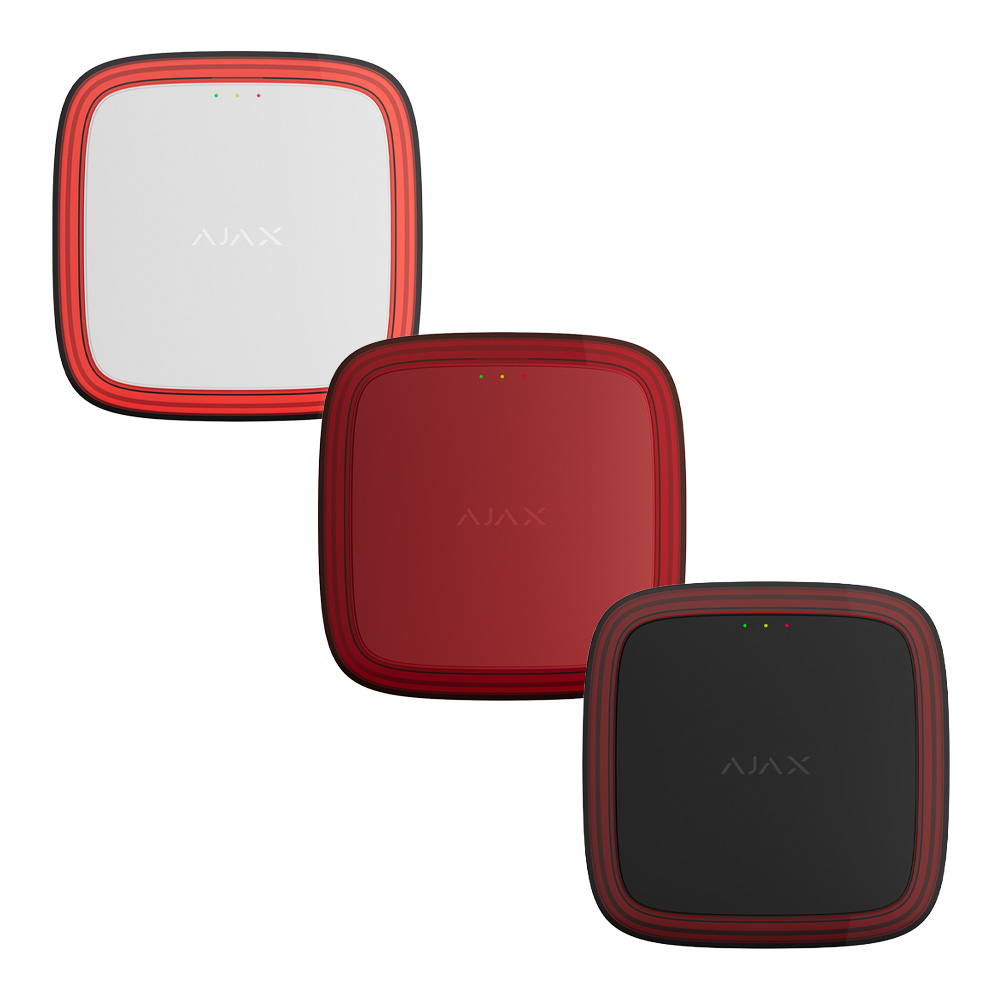

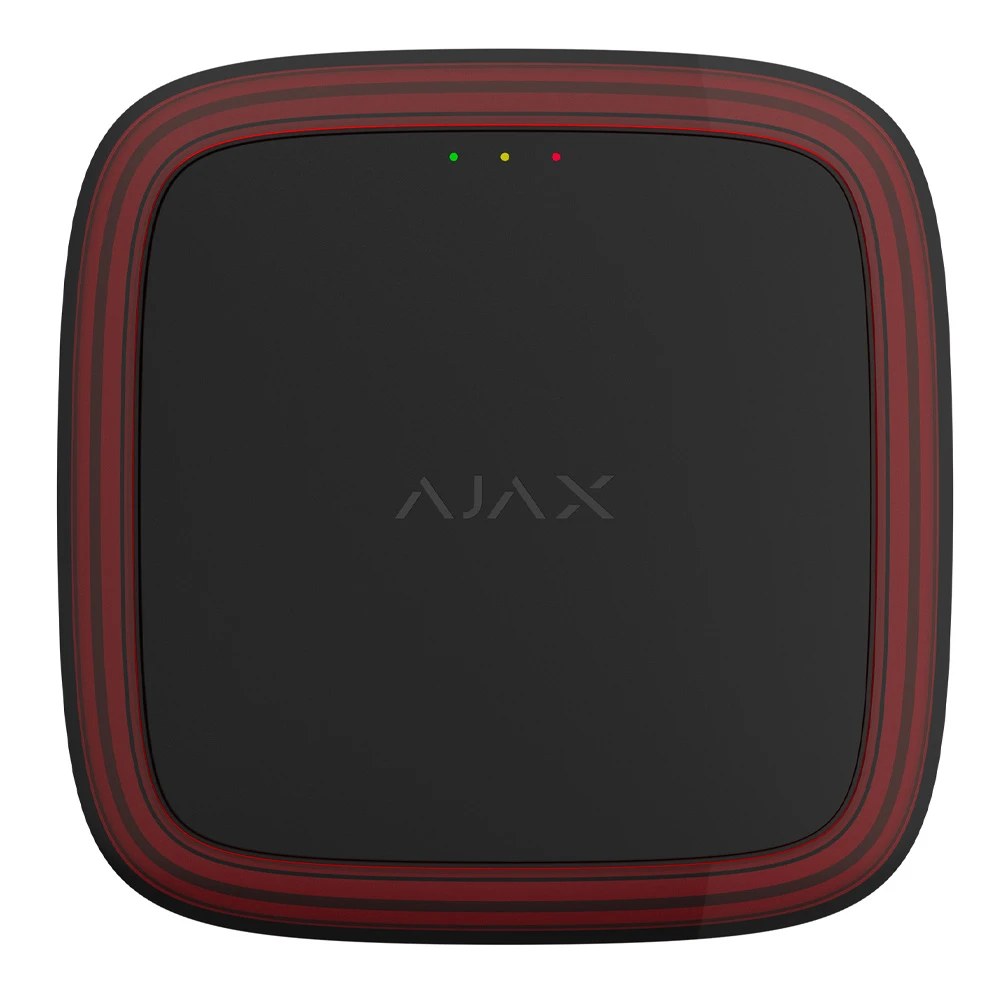

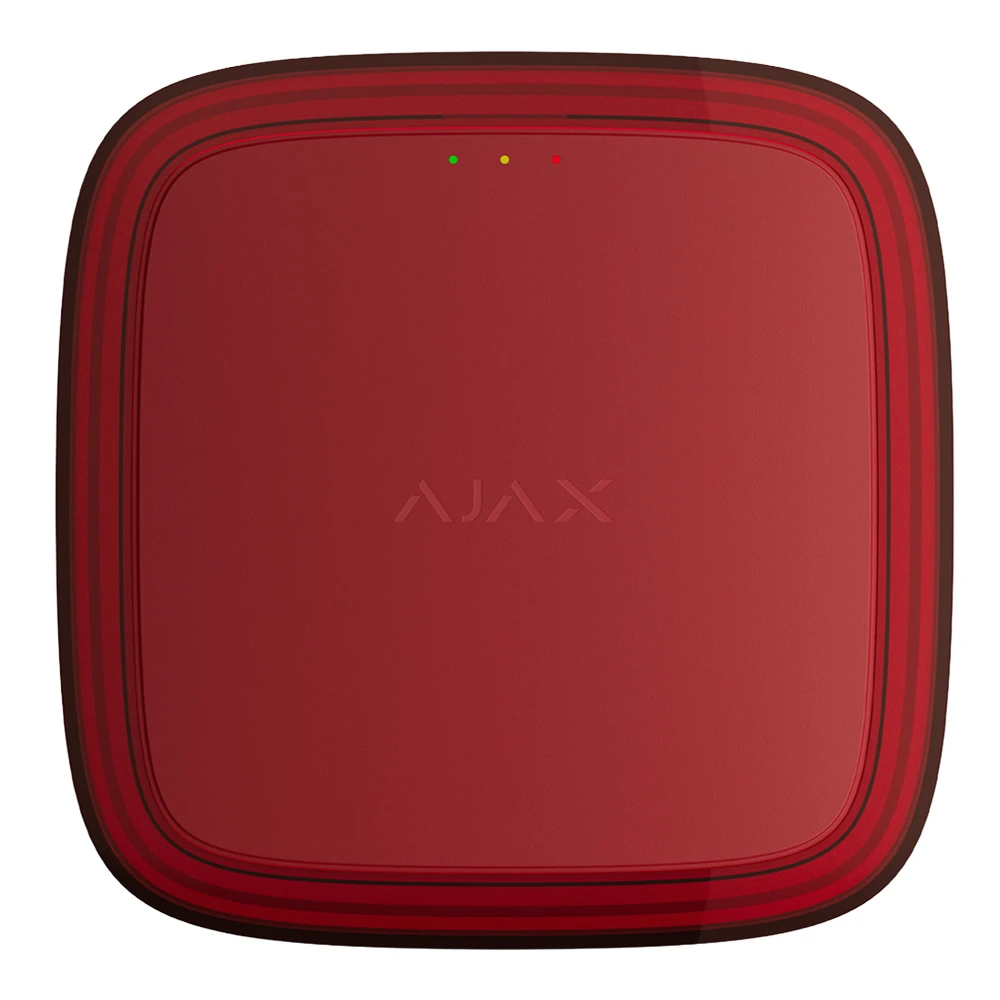

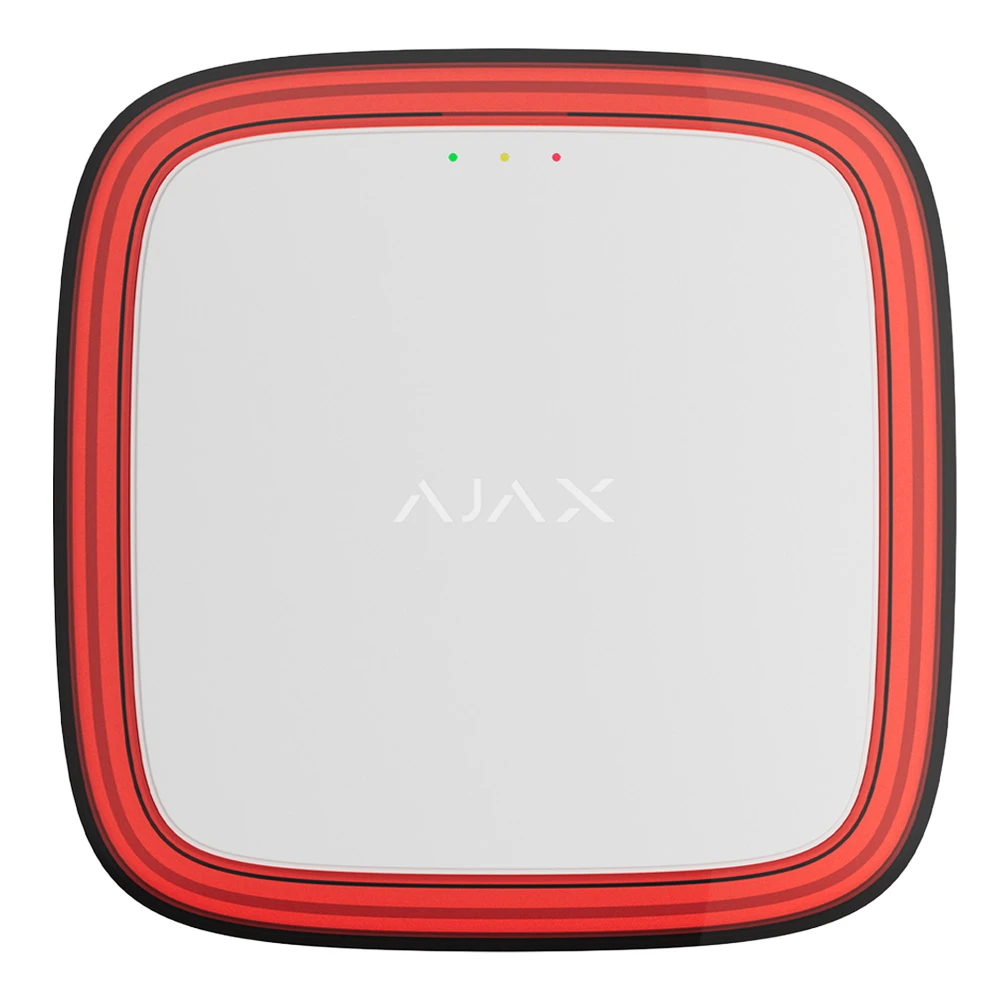

The Ajax FireProtect Jeweller EN54 VAD is a wireless visual alarm device for use within compatible Ajax EN54 fire alarm systems.
Suited to professional fire alarm installations, it addresses environments where visual notification is needed — whether for accessibility compliance, occupant awareness, or supplementary alarm coverage. The wireless design makes it a practical choice for refurbishment work, commercial premises, and any site where conventional cabling would cause significant disruption.
Visual indication is delivered via a high-visibility LED frame. The flash sequence runs 90ms on and 1,910ms off, giving a 2,000ms cycle at 0.5Hz. Coverage areas are defined for installation planning purposes: ceiling mounting at 3m provides an 8m coverage diameter, while wall mounting at 2.4m gives a coverage volume of 2.4m × 8.2m × 8.2m.
Wireless communication runs on Ajax's Jeweller protocol, with a range of up to 1,700 metres in open space alongside compatible control equipment. Commissioning is supported through QR code setup and app-based configuration, with SmartBracket mounting for straightforward fixing.
Pre-installed batteries offer up to 5 years of rated life, and replacement is tool-free, keeping service visits brief.
The device carries EN 54-23 and EN 54-25 compliance as well as BOSEC certification, confirming suitability for recognised professional fire alarm applications.
Ajax FireProtect Jeweller VAD - Wireless Addressable EN54 | ||
Wireless addressable visual alarm device (VAD) | EN 54-23 compliant visual alarm signalling | High-visibility LED frame for visual fire alarm indication |
Ceiling and wall mounting options | 8m ceiling coverage diameter at 3m mounting height | Wall coverage volume of 2.4m x 8.2m x 8.2m |
Ajax Jeweller wireless communication technology | Up to 1,700m wireless communication range in open space | QR code setup and app-based configuration |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller VAD - Wireless Addressable EN54 | |||
Visual Alarm Type | LED frame | Communication Range | Up to 1,700m in open space |
Flash Sequence | 90ms ON / 1,910ms OFF | Battery Type | 4 x CR123A (pre-installed) |
Cycle Duration | 2,000ms | Battery Life | Up to 5 years |
Flash Frequency | 0.5Hz | Operating Temperature | -10°C to +60°C |
Ceiling Coverage Diameter | 8m | Operating Humidity | Up to 95% |
Ceiling Installation Height | 3m | Colour Options | Black, White, Red |
Wall Coverage Volume | 2.4m x 8.2m x 8.2m | Dimensions | 145 × 145 × 51mm |
Wall Installation Height | 2.4m | Weight | 509g |
Standard Compliance | EN 54-23, EN 54-25 | Protection Class | IP54 |
Directive Compliance | 2014/53/EU (RED) | Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz |
Certification | BOSEC | Maximum Effective Radiated Power (ERP) | Up to 20mW |
Communication Technology | Ajax Jeweller | ||
The Ajax FireProtect Jeweller EN54 VAD is a wireless visual alarm device for use within compatible Ajax EN54 fire alarm systems.
Suited to professional fire alarm installations, it addresses environments where visual notification is needed — whether for accessibility compliance, occupant awareness, or supplementary alarm coverage. The wireless design makes it a practical choice for refurbishment work, commercial premises, and any site where conventional cabling would cause significant disruption.
Visual indication is delivered via a high-visibility LED frame. The flash sequence runs 90ms on and 1,910ms off, giving a 2,000ms cycle at 0.5Hz. Coverage areas are defined for installation planning purposes: ceiling mounting at 3m provides an 8m coverage diameter, while wall mounting at 2.4m gives a coverage volume of 2.4m × 8.2m × 8.2m.
Wireless communication runs on Ajax's Jeweller protocol, with a range of up to 1,700 metres in open space alongside compatible control equipment. Commissioning is supported through QR code setup and app-based configuration, with SmartBracket mounting for straightforward fixing.
Pre-installed batteries offer up to 5 years of rated life, and replacement is tool-free, keeping service visits brief.
The device carries EN 54-23 and EN 54-25 compliance as well as BOSEC certification, confirming suitability for recognised professional fire alarm applications.
Ajax FireProtect Jeweller VAD - Wireless Addressable EN54 | ||
Wireless addressable visual alarm device (VAD) | EN 54-23 compliant visual alarm signalling | High-visibility LED frame for visual fire alarm indication |
Ceiling and wall mounting options | 8m ceiling coverage diameter at 3m mounting height | Wall coverage volume of 2.4m x 8.2m x 8.2m |
Ajax Jeweller wireless communication technology | Up to 1,700m wireless communication range in open space | QR code setup and app-based configuration |
Up to 5-year battery life | ||
Ajax FireProtect Jeweller VAD - Wireless Addressable EN54 | |||
Visual Alarm Type | LED frame | Communication Range | Up to 1,700m in open space |
Flash Sequence | 90ms ON / 1,910ms OFF | Battery Type | 4 x CR123A (pre-installed) |
Cycle Duration | 2,000ms | Battery Life | Up to 5 years |
Flash Frequency | 0.5Hz | Operating Temperature | -10°C to +60°C |
Ceiling Coverage Diameter | 8m | Operating Humidity | Up to 95% |
Ceiling Installation Height | 3m | Colour Options | Black, White, Red |
Wall Coverage Volume | 2.4m x 8.2m x 8.2m | Dimensions | 145 × 145 × 51mm |
Wall Installation Height | 2.4m | Weight | 509g |
Standard Compliance | EN 54-23, EN 54-25 | Protection Class | IP54 |
Directive Compliance | 2014/53/EU (RED) | Frequency Bands | 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz |
Certification | BOSEC | Maximum Effective Radiated Power (ERP) | Up to 20mW |
Communication Technology | Ajax Jeweller | ||
