Code: FPS002/962

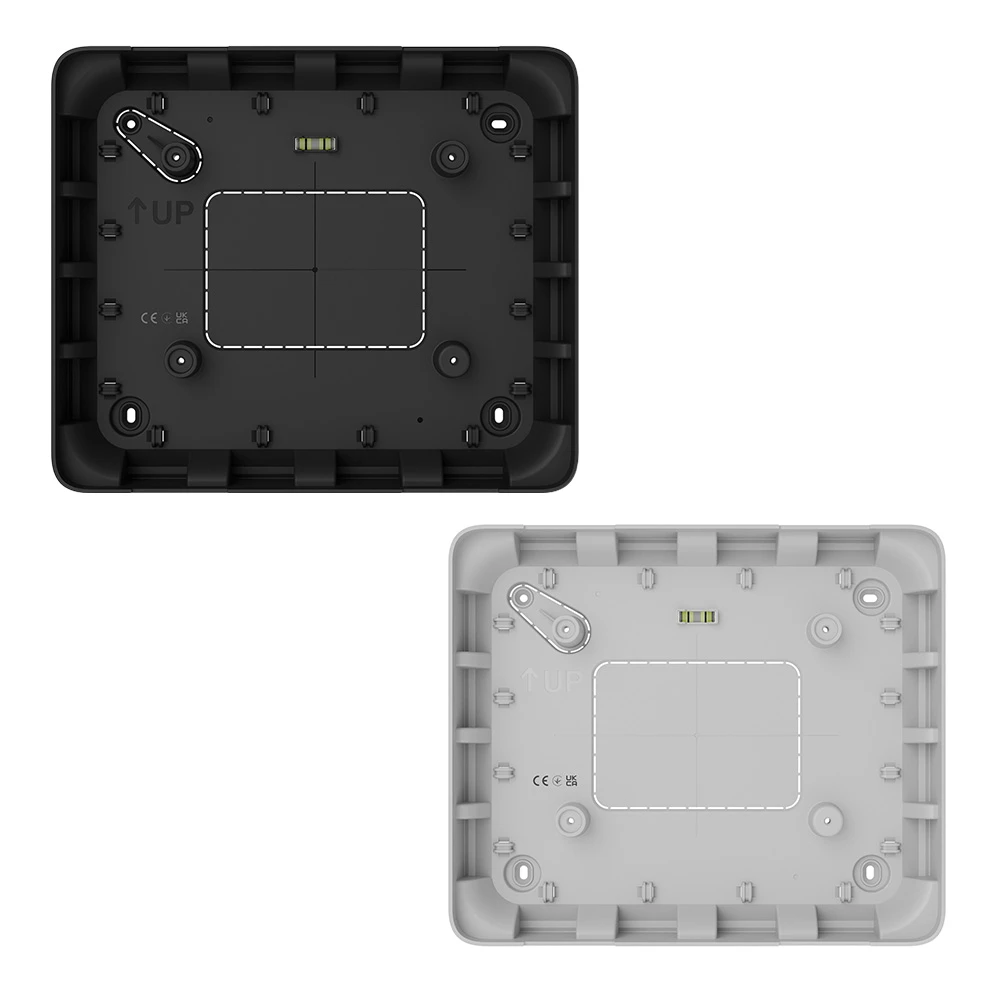

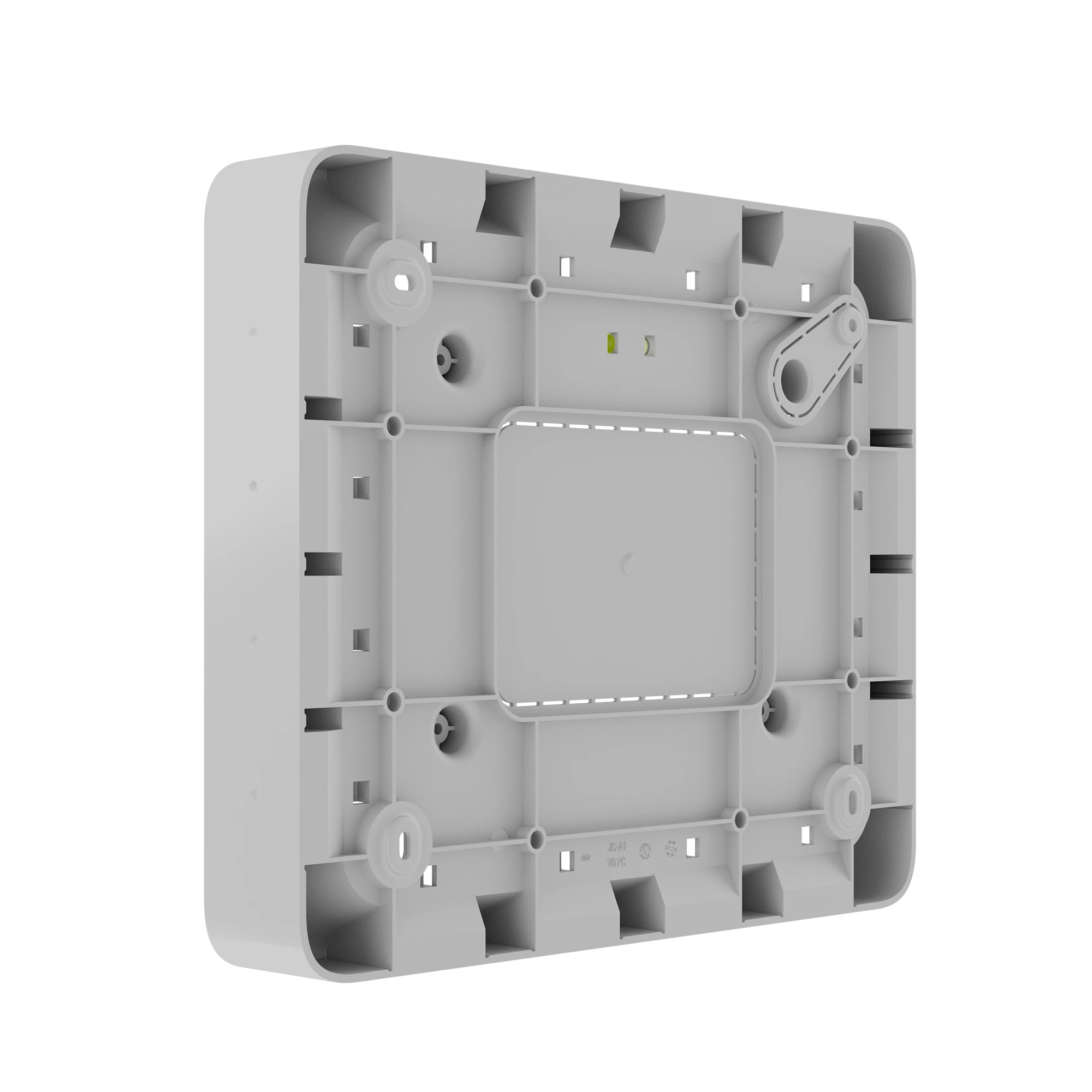

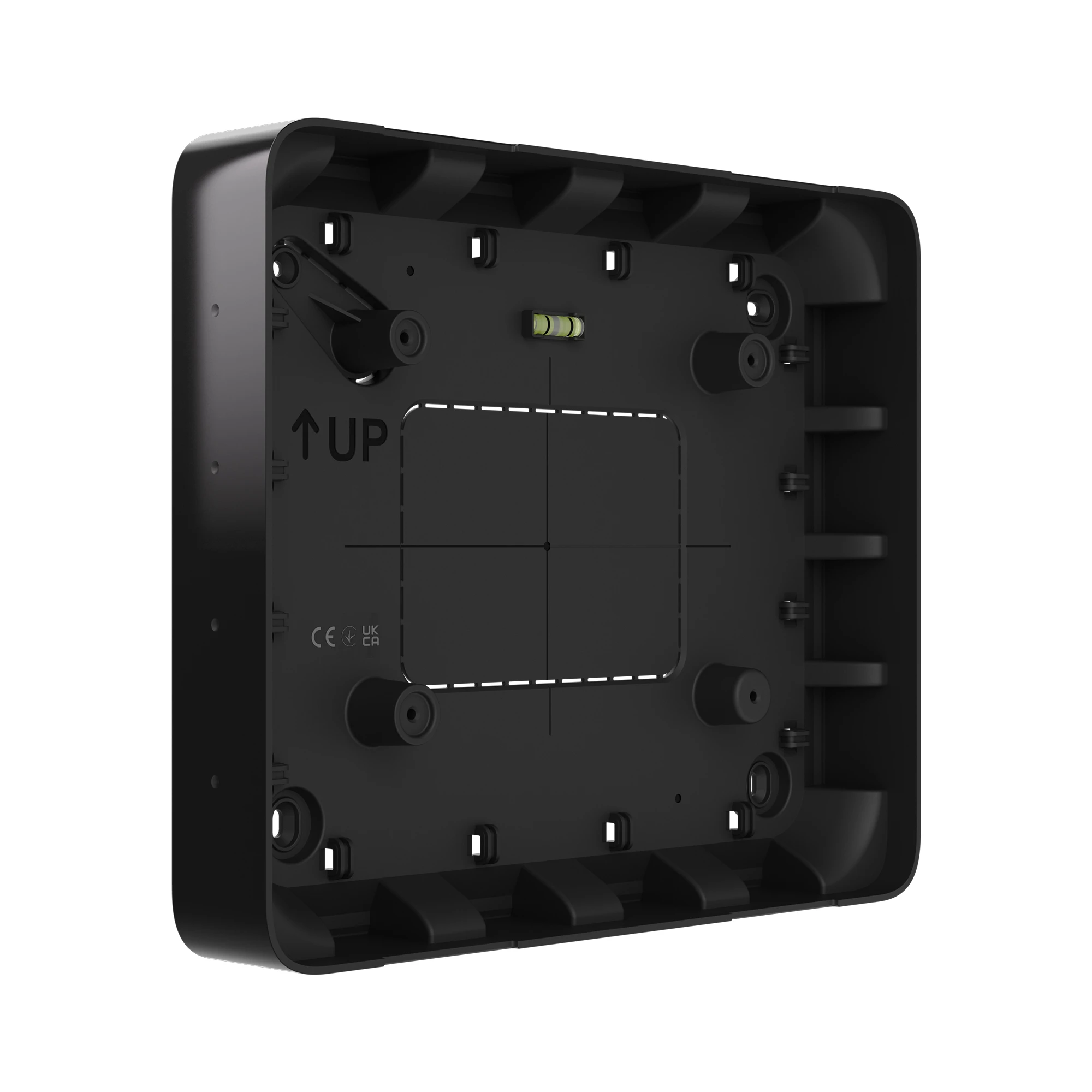

A dedicated wiring accessory that enables neat, professional side-entry cable management for compatible Ajax EN54 fire system control equipment.
Particularly suited to situations where concealed in-wall cabling is not feasible, such as listed buildings, retrofit projects or temporary commercial environments, the GlandBox allows external cables to be routed cleanly without compromising the overall installation appearance. It pairs directly with the Ajax EN54 Fire Hub Jeweller enclosure for a consistent, cohesive look.
Built with the installer in mind, the unit offers multiple cable gland positions, integrated alignment aids and structured cable routing support, making for a straightforward fit and a polished end result.
Ajax GlandBox for Fire Hub - EN54 | ||
Wiring accessory for Ajax EN54 control and indicating equipment | Designed for Ajax EN54 Fire Hub Jeweller | Neat lateral cable entry solution |
Ideal for retrofit and surface cable routing installations | Compact low-profile design | 16 cable gland positions |
Four gland positions on each side | Supports cable glands up to 20mm in diameter | Secure cable routing with fastener support |
Built-in bubble level for easier installation | UP direction marker for alignment | Centre marking for accurate positioning |
Latches for mounting panel fixing | Tamper button support for removal detection | Professional installation finish |
Ajax GlandBox for Fire Hub - EN54 | |||
Product Type | Wiring accessory/gland box | Weight | 335g |
Compatibility | Ajax EN54 Fire Hub Jeweller | Operating Temperature | +10°C to +40°C |
Cable Entry Positions | 16 | Operating Humidity | Up to 75% non-condensing |
Maximum Cable Gland Diameter | 20mm | IP Rating | IP20 |
Dimensions | 263 x 223 x 40mm | Flammability Rating | UL 94 V-0 |
Colour Option | Black, White | ||
A dedicated wiring accessory that enables neat, professional side-entry cable management for compatible Ajax EN54 fire system control equipment.
Particularly suited to situations where concealed in-wall cabling is not feasible, such as listed buildings, retrofit projects or temporary commercial environments, the GlandBox allows external cables to be routed cleanly without compromising the overall installation appearance. It pairs directly with the Ajax EN54 Fire Hub Jeweller enclosure for a consistent, cohesive look.
Built with the installer in mind, the unit offers multiple cable gland positions, integrated alignment aids and structured cable routing support, making for a straightforward fit and a polished end result.
Ajax GlandBox for Fire Hub - EN54 | ||
Wiring accessory for Ajax EN54 control and indicating equipment | Designed for Ajax EN54 Fire Hub Jeweller | Neat lateral cable entry solution |
Ideal for retrofit and surface cable routing installations | Compact low-profile design | 16 cable gland positions |
Four gland positions on each side | Supports cable glands up to 20mm in diameter | Secure cable routing with fastener support |
Built-in bubble level for easier installation | UP direction marker for alignment | Centre marking for accurate positioning |
Latches for mounting panel fixing | Tamper button support for removal detection | Professional installation finish |
Ajax GlandBox for Fire Hub - EN54 | |||
Product Type | Wiring accessory/gland box | Weight | 335g |
Compatibility | Ajax EN54 Fire Hub Jeweller | Operating Temperature | +10°C to +40°C |
Cable Entry Positions | 16 | Operating Humidity | Up to 75% non-condensing |
Maximum Cable Gland Diameter | 20mm | IP Rating | IP20 |
Dimensions | 263 x 223 x 40mm | Flammability Rating | UL 94 V-0 |
Colour Option | Black, White | ||
