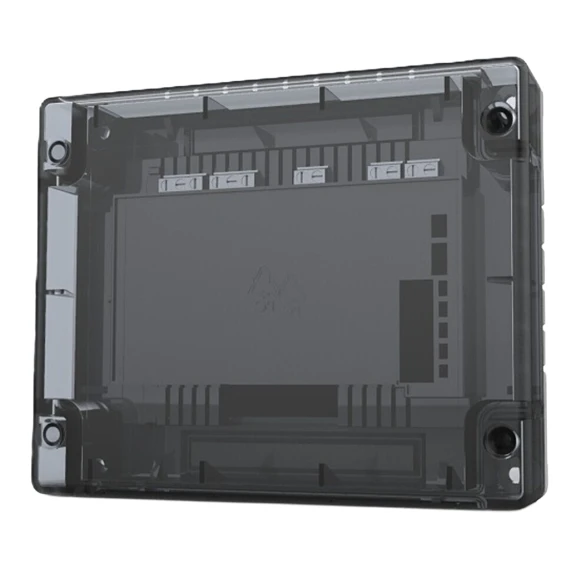

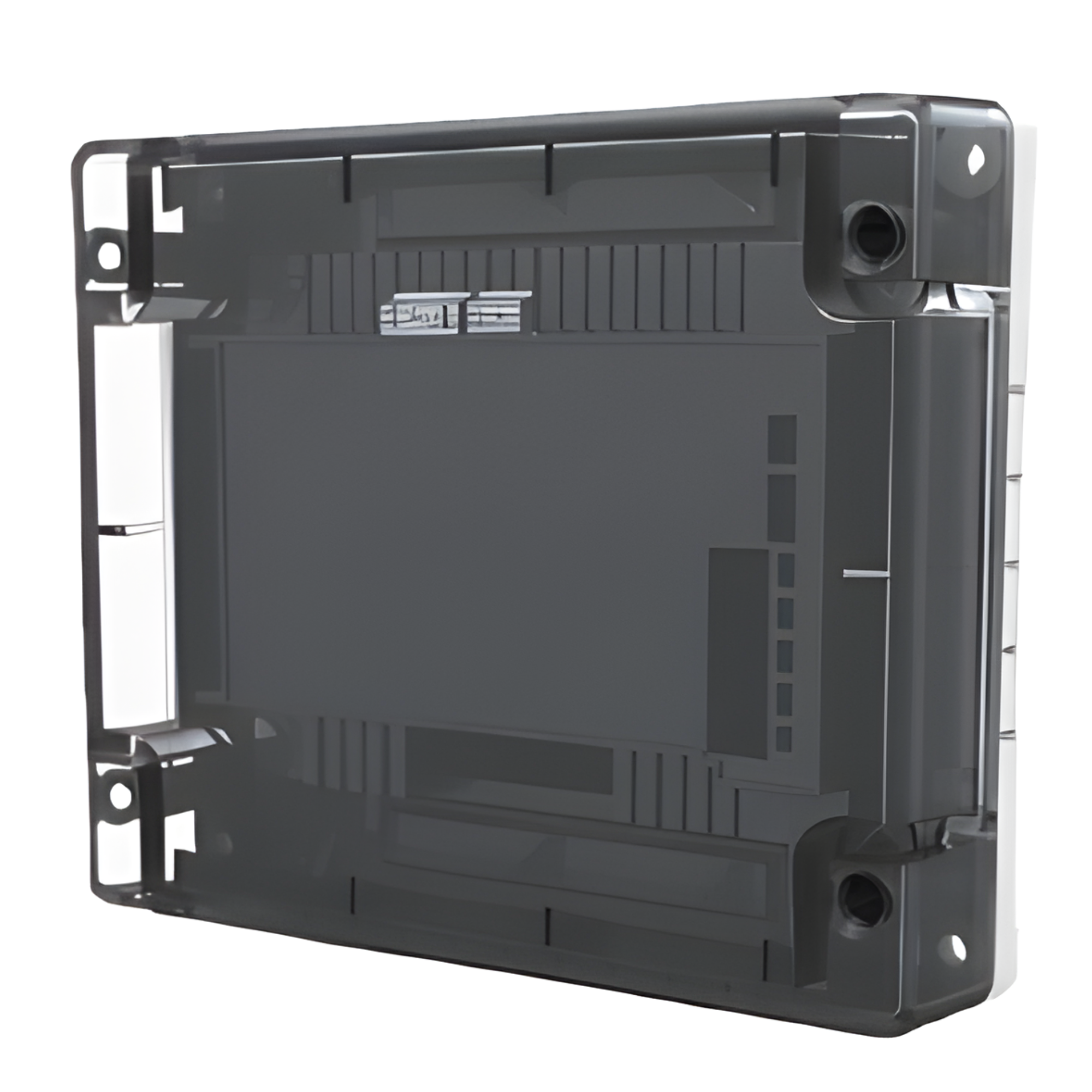

Hochiki CHQ-DIM2(SCI) | Addressable Dual Input Module
We Recommend
Bestseller
Code: FPS002/030
INC VAT
Code: FPS002/030
The Hochiki CHQ-DIM2(SCI) dual input module allows connection to a wide range of external devices, including door contacts, sprinkler flow, door switches, and various items of plant equipment. A DIN-rail-mountable option is also offered, and both variants incorporate a built-in short-circuit isolator.
Hochiki CHQ-DIM2(SCI) | Addressable Dual Input Module | ||
Single loop address | Loop powered | 2 Independent inputs for monitoring of volt free contacts |
Each input can be configured to monitor either N/O or N/C contacts | Boxed module version available | Both models approved by LPCB |
Hochiki CHQ-DIM2(SCI) | Addressable Dual Input Module | |||
Operating voltage | 17-41VDC | Current consumption | 22 mA μ 20 % (polling), 4.3 mA (both inputs active)*1 |
Quiescent current | 280 μA | Current in short-circuit | 8 mA |
Maximum short-circuit current (Loop) | 1A | Input line resistance | ON threshold 100 KΩ |
The Hochiki CHQ-DIM2(SCI) dual input module allows connection to a wide range of external devices, including door contacts, sprinkler flow, door switches, and various items of plant equipment. A DIN-rail-mountable option is also offered, and both variants incorporate a built-in short-circuit isolator.
Hochiki CHQ-DIM2(SCI) | Addressable Dual Input Module | ||
Single loop address | Loop powered | 2 Independent inputs for monitoring of volt free contacts |
Each input can be configured to monitor either N/O or N/C contacts | Boxed module version available | Both models approved by LPCB |
Hochiki CHQ-DIM2(SCI) | Addressable Dual Input Module | |||
Operating voltage | 17-41VDC | Current consumption | 22 mA μ 20 % (polling), 4.3 mA (both inputs active)*1 |
Quiescent current | 280 μA | Current in short-circuit | 8 mA |
Maximum short-circuit current (Loop) | 1A | Input line resistance | ON threshold 100 KΩ |
