Ajax Jeweller Manual Call Point - Wireless Addressable EN54
Code: FPS002/968
INC VAT
Code: FPS002/968

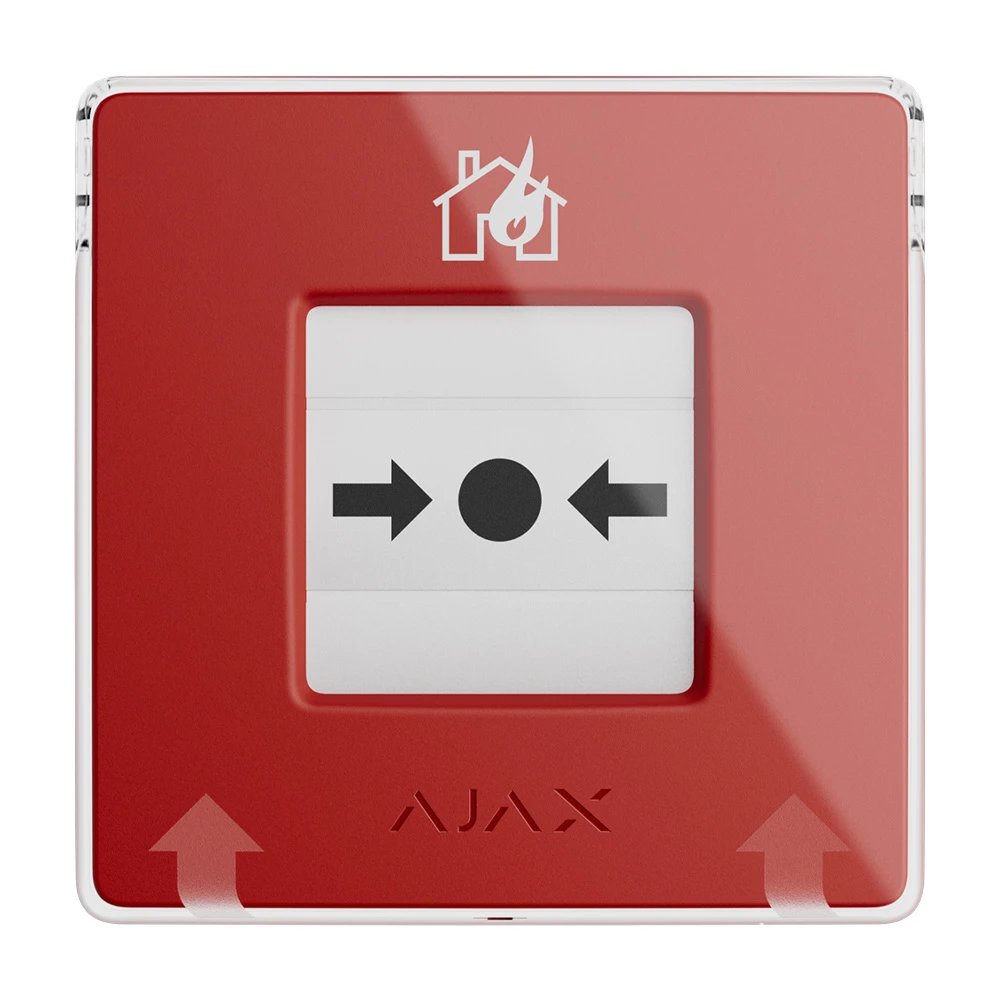

The Ajax Manual Call Point (Red) Jeweller is a wireless, addressable fire alarm initiating device that enables immediate manual activation of a fire alarm system. Upon activation, it can simultaneously trigger a range of pre-programmed emergency responses to facilitate safe building evacuation and coordinated incident management.
Part of the Ajax EN54-certified fire safety ecosystem, the unit pairs wireless connectivity with a straightforward setup process and simple day-to-day operation.
A single button press can set off connected sounders, release door locks, shut down air handling systems, or activate emergency lighting, all depending on how the device has been configured for the specific installation.
The call point features a resettable mechanism, eliminating the need for breakable glass elements. This reduces routine maintenance requirements and allows the system to be quickly returned to operational status using the included reset key.
Communication is handled via Ajax's Jeweller radio protocol, delivering fast alarm transmission and reliable long-range performance. This makes the device well-suited to commercial premises, educational facilities, and public buildings where a flexible, cable-free fire detection installation is preferred.
Ajax Jeweller Manual Call Point - Wireless Addressable EN54 | ||
Red fire alarm version | Compatible with Ajax fire alarm systems using Jeweller communication | Alarm transmission to control equipment within 3 seconds |
Resettable operating element | Reset key included | Transparent front lid to help prevent accidental activation |
LED alarm status indication | Built-in tamper protection | Wireless communication range up to 1,700m in open space |
Frequency hopping communication for improved signal reliability | Automatic communication power adjustment | Up to 7 years battery life |
Supports automation scenario activation | Can trigger indoor and outdoor sirens | Compatible with visual alarm verification via Ajax cameras and MotionCam detectors |
QR code setup for fast commissioning | SmartBracket mounting panel for simplified installation | Configuration and testing via Ajax apps |
Ajax Jeweller Manual Call Point - Wireless Addressable EN54 | |||
Product Type | Wireless resettable manual call point | Battery Type | 2 x CR123A |
Colour | Red | Battery Life | Up to 7 years |
Communication Technology | Ajax Jeweller | Operating Temperature | 0°C to +50°C |
Communication Range | Up to 1,700m (open space) | Operating Humidity | Up to 80% |
Alarm Transmission Time | Within 3 seconds | Dimensions | 102 x 104 x 39mm |
Connection Loss Detection | 36 seconds | Weight | 214g |
Frequency Bands | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz (region dependent) | Compliance | EN 54-11, EN 54-25, BOSEC |
The Ajax Manual Call Point (Red) Jeweller is a wireless, addressable fire alarm initiating device that enables immediate manual activation of a fire alarm system. Upon activation, it can simultaneously trigger a range of pre-programmed emergency responses to facilitate safe building evacuation and coordinated incident management.
Part of the Ajax EN54-certified fire safety ecosystem, the unit pairs wireless connectivity with a straightforward setup process and simple day-to-day operation.
A single button press can set off connected sounders, release door locks, shut down air handling systems, or activate emergency lighting, all depending on how the device has been configured for the specific installation.
The call point features a resettable mechanism, eliminating the need for breakable glass elements. This reduces routine maintenance requirements and allows the system to be quickly returned to operational status using the included reset key.
Communication is handled via Ajax's Jeweller radio protocol, delivering fast alarm transmission and reliable long-range performance. This makes the device well-suited to commercial premises, educational facilities, and public buildings where a flexible, cable-free fire detection installation is preferred.
Ajax Jeweller Manual Call Point - Wireless Addressable EN54 | ||
Red fire alarm version | Compatible with Ajax fire alarm systems using Jeweller communication | Alarm transmission to control equipment within 3 seconds |
Resettable operating element | Reset key included | Transparent front lid to help prevent accidental activation |
LED alarm status indication | Built-in tamper protection | Wireless communication range up to 1,700m in open space |
Frequency hopping communication for improved signal reliability | Automatic communication power adjustment | Up to 7 years battery life |
Supports automation scenario activation | Can trigger indoor and outdoor sirens | Compatible with visual alarm verification via Ajax cameras and MotionCam detectors |
QR code setup for fast commissioning | SmartBracket mounting panel for simplified installation | Configuration and testing via Ajax apps |
Ajax Jeweller Manual Call Point - Wireless Addressable EN54 | |||
Product Type | Wireless resettable manual call point | Battery Type | 2 x CR123A |
Colour | Red | Battery Life | Up to 7 years |
Communication Technology | Ajax Jeweller | Operating Temperature | 0°C to +50°C |
Communication Range | Up to 1,700m (open space) | Operating Humidity | Up to 80% |
Alarm Transmission Time | Within 3 seconds | Dimensions | 102 x 104 x 39mm |
Connection Loss Detection | 36 seconds | Weight | 214g |
Frequency Bands | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz (region dependent) | Compliance | EN 54-11, EN 54-25, BOSEC |
