Code: CTEC001/011
INC VAT
Code: CTEC001/011

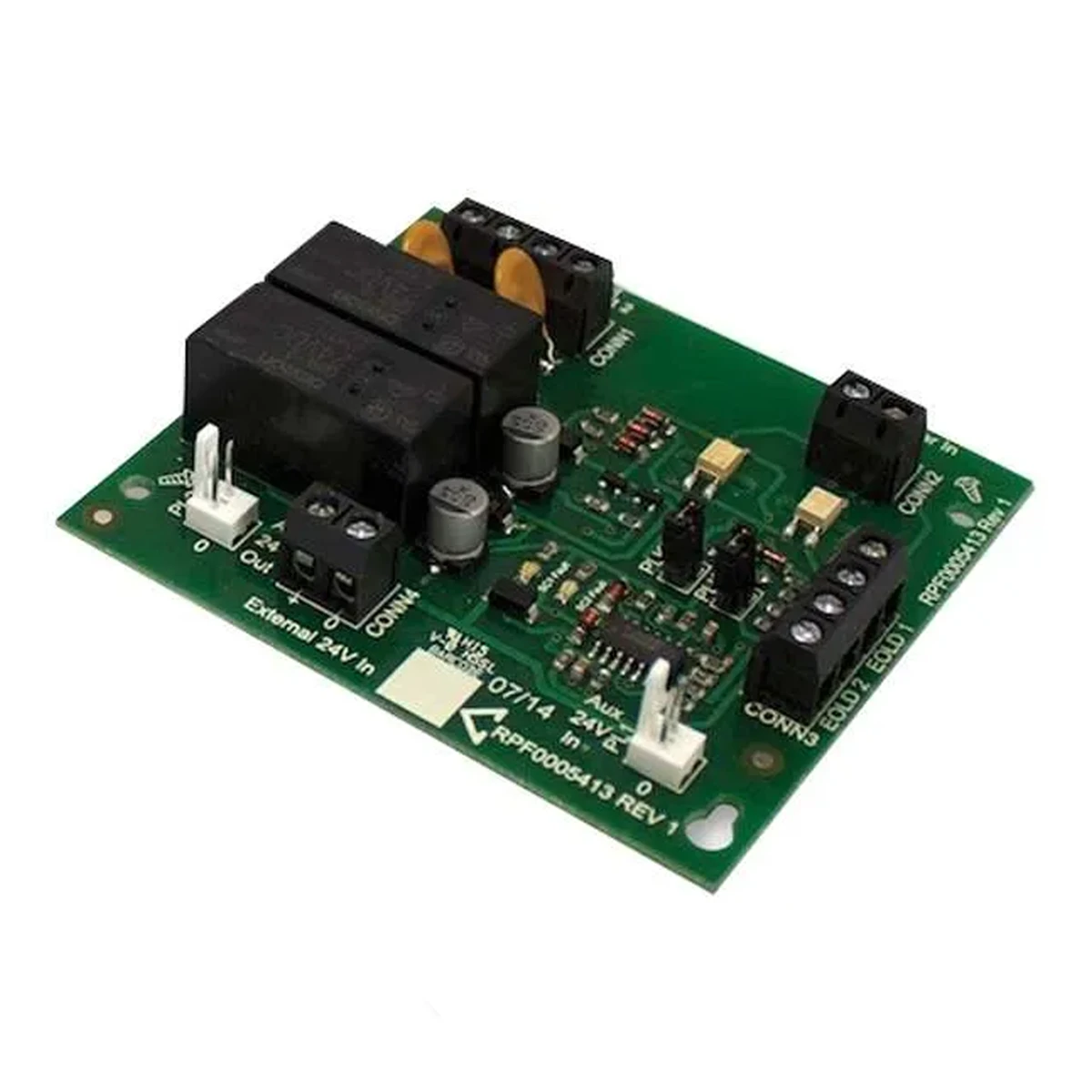

C-Tec (BF354) EN54-13 Interface Board is BSI certified to EN54-13 (Fire detection and fire alarm systems, compatibility assessment of system components).
BSI certified to EN54-13 (Fire detection and fire alarm systems, compatibility assessment of system components).
Fits inside a CFP standard 2-8 zone fire panel to provide two EN54-13 monitored sounder circuits.
When used in conjunction with our CFP Standard 2-8 Zone Fire Panels, ActiV fire detectors and a wide range of specified sounders, VADs and call points, installers can rest-assured the system they are installing is fully compliant with the system compatibility requirements of EN54-13 and is certified as such by the BSI.
Monitors its onboard sounder circuits for partial and full open or short circuit faults when used in conjunction with a BF355 fault monitoring module (one BF355 required per sounder circuit).
Ideal for use in territories where EN54-13 is mandated such as Germany, the Netherlands and Belgium.
Approvals/certifications | Certified to EN54-13 by the BSI (KM615562). |
|---|---|
Application/operation | Detects sounder circuit resistances down to 10Ω plus or minus 10%. |
No. of conventional sounder circuits | 2. |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
Alarm voltage | 27 VDV max., 20 VDC min |
Max. sounder output current | 2 x 400mA (800mA total) |
Product dimensions (mm) | 80 W x 124 H x D 9mm. |
C-Tec (BF354) EN54-13 Interface Board is BSI certified to EN54-13 (Fire detection and fire alarm systems, compatibility assessment of system components).
BSI certified to EN54-13 (Fire detection and fire alarm systems, compatibility assessment of system components).
Fits inside a CFP standard 2-8 zone fire panel to provide two EN54-13 monitored sounder circuits.
When used in conjunction with our CFP Standard 2-8 Zone Fire Panels, ActiV fire detectors and a wide range of specified sounders, VADs and call points, installers can rest-assured the system they are installing is fully compliant with the system compatibility requirements of EN54-13 and is certified as such by the BSI.
Monitors its onboard sounder circuits for partial and full open or short circuit faults when used in conjunction with a BF355 fault monitoring module (one BF355 required per sounder circuit).
Ideal for use in territories where EN54-13 is mandated such as Germany, the Netherlands and Belgium.
Approvals/certifications | Certified to EN54-13 by the BSI (KM615562). |
|---|---|
Application/operation | Detects sounder circuit resistances down to 10Ω plus or minus 10%. |
No. of conventional sounder circuits | 2. |
EOL resistor value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold). |
Alarm voltage | 27 VDV max., 20 VDC min |
Max. sounder output current | 2 x 400mA (800mA total) |
Product dimensions (mm) | 80 W x 124 H x D 9mm. |
