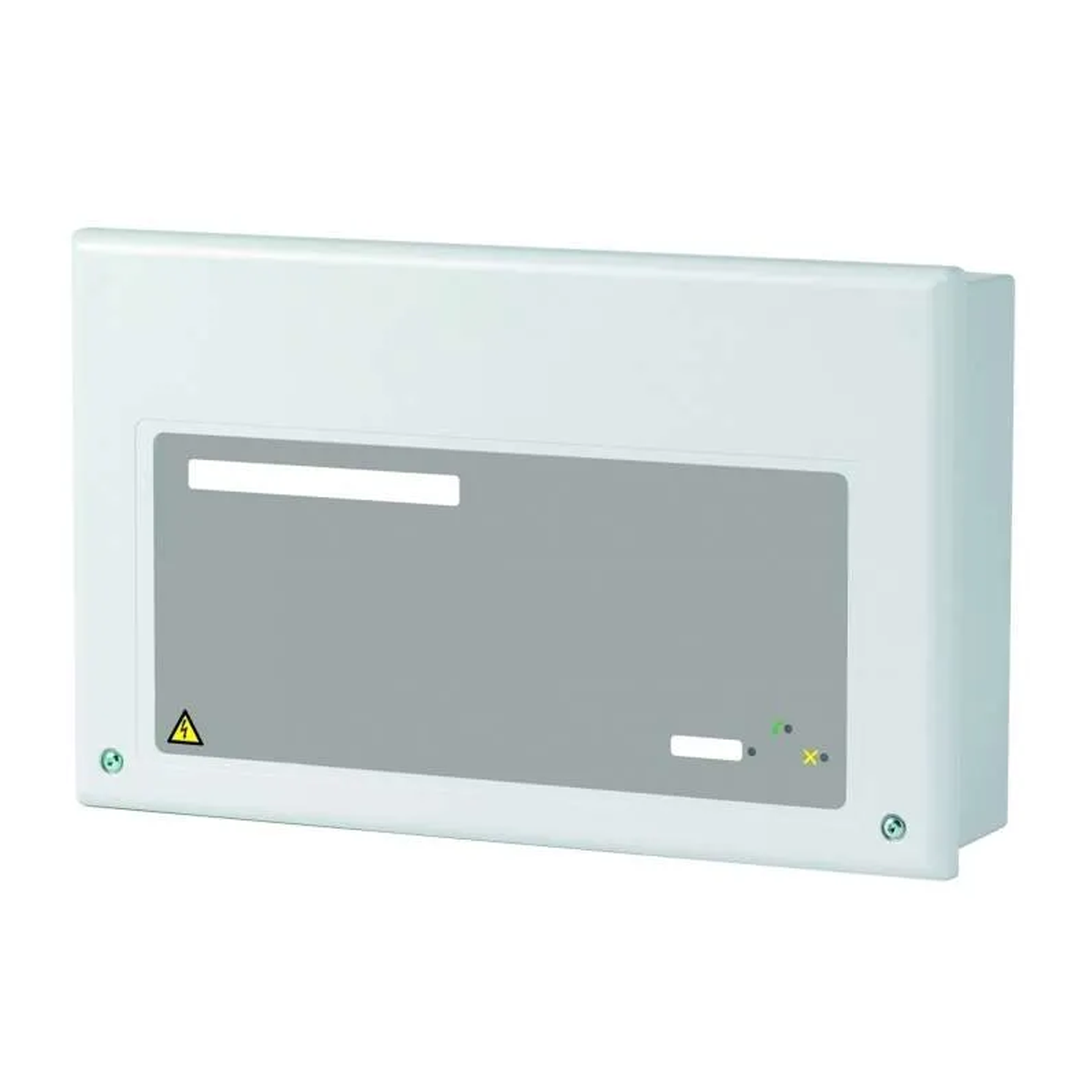

C-TEC BF560-24 24V 1.5A EN54-4 Power Supply Unit
Code: CTEC001/020
INC VAT
Code: CTEC001/020
Ideal for powering beam detectors, auto-dial communicators, aspirating smoke detectors, auto-open vent systems, auxiliary sounder systems or any other device performing a mandatory function of a fire alarm system.
Certified to EN54-4/A2 by the LPCB and VdS (AFNOR pending).
A powerful switch mode/digital hybrid PSU that can be customised* to suit your exact requirements
Plastic cover on PSU PCB guards against touching live parts.
Includes a single-pole volt free changeover relay that switches for any fault condition.
Multiple indicators – supply present, general fault, fault type & aux. equipment fault.
Two selectable battery charge currents.
Battery fault impedance limits can be optimised to suit load current (helps extend battery life)*.
Mains fail simulation mode.
Improved on-board temperature sensor with optional remote sensor.
Electronic functions comply with EN50131-6 grades 1-4 for security applications.
BF560-24/E caged & BF560-24/C PCB-only versions available.
Approvals/certifications | Certified to EN54-4/A2 by the LPCB & VdS. AFNOR approval pending. |
|---|---|
Application/operation | A boxed Mains to regulated DC power supply providing 1.5A @ 24V DC. It includes a single pole volt-free changeover relay that switches for any fault condition. User customisable via a BF423 Configu |
Mains supply | 230V 50/60Hz. |
Mains rated current | 400mA r.m.s. |
Total output current limited to | 1.5A (Max. output current). |
Output | I max.a: 1.3A or 0.8A selectable. A load greater than I max.a will temporarily reduce batt. charging. I.max.b: 1.5A, charging turned off via CONN6. Output is also customisable via a BF423 Configura |
Battery charge capacity | 2Ah up to 12Ah (battery charged to 80% capacity in 24 hrs). Max. battery size/type determined by cabinet size is 3.2Ah VRLA). Output is customisable via a BF423 Configurator to suit different manuf |
Max battery size and type | 2 x 12V 3.2Ah VRLA (min. size is 2 x 12V 2Ah). |
Indicators | 3 external – Supply Present (Green); General Fault (Amber); Auxiliary Fault (Amber) and 2 internal – Hazardous Voltages Present (Red) and PSU Status (Amber). |
Connections | Mains Input (CONN1); Supply Output (CONN3); Battery Input (CONN3); Fault Relay (CONN4); Charge Off Input (CONN5). Battery Charge Current Link (PLK1); Battery Monitoring On/Off Link (PLK2); High Tem |
Expansion connections | A remote thermistor can be connected via PL3 terminals. |
Product dimensions (mm) | 380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required). |
Construction & finish | PVC lid and base; RAL7035 textured. |
IP Rating | IP30 (designed for indoor use only). |
Weight | 1.55kg (without batteries). |
Operating conditions/temperature | -5ºC to +40ºC. Max relative humidity: 95%. |
Notes | *Parameters configurable via a BF423 configurator are: Float voltage temp. compensation; Batt. charge rate (mA); Batt. impedance; Configurable Input/Output settings. Note: Changing the PSU's parame |
