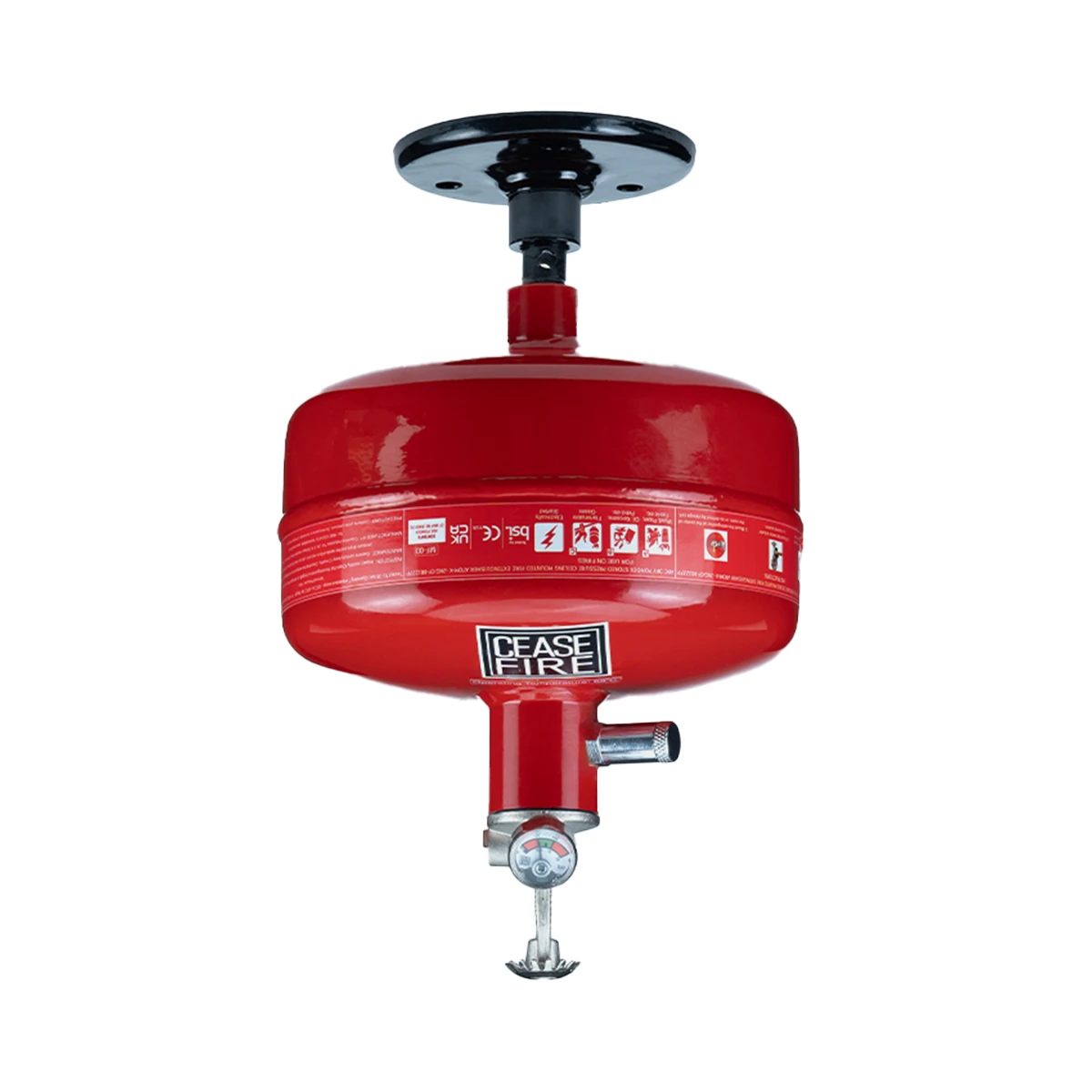

Ceasefire Atom-X M Series Automatic Fire Extinguisher (Ceiling Mounted) Clean Agent (FK-5-1-12)

Ceasefire Atom-X M Series Ceiling Mounted Automatic Clean Agent Extinguishers detect and fight fires at the earliest stage without any human intervention. Each unit is fitted with a precision thermal bulb calibrated to activate automatically at 68°C, instantly discharging a clean FK-5-1-12 (Fluoroketone) agent that suppresses fire rapidly while causing no collateral damage and leaving no residue.

The FK-5-1-12 clean agent is highly effective on Class A, Class B, Class C, and electrically started fires. It is non-conductive and safe for use in occupied and confined spaces. Making them ideal for protecting high-value equipment.

These ceiling-mounted extinguishers are retrofittable, requiring no structural alterations while ensuring valuable floor space remains completely free. They are ideally suited for critical areas that require round-the-clock protection.

Making the Atom-X M Series Automatic Extinguishers Monitorable

With the presence of a pressure port in these extinguisher units, these can be made monitorable by opting for a Pressure Switch and can be integrated to any third-party device, such as a Fire Alarm Panel, a stand-alone Siren Strobe or a Building Management System for monitoring purposes. This enables users to not only get an alert on activation of these units in case of fire, but also to do preventive maintenance monitoring of the units.

Scaling up to a Room Suppression System

The Ceasefire Atom-X M Series extinguishers can be used as building blocks to form an integrated room fire suppression system by opting for Metron Actuators, which can be further connected with a network of detectors via a control panel to form a formidable fire suppression system.

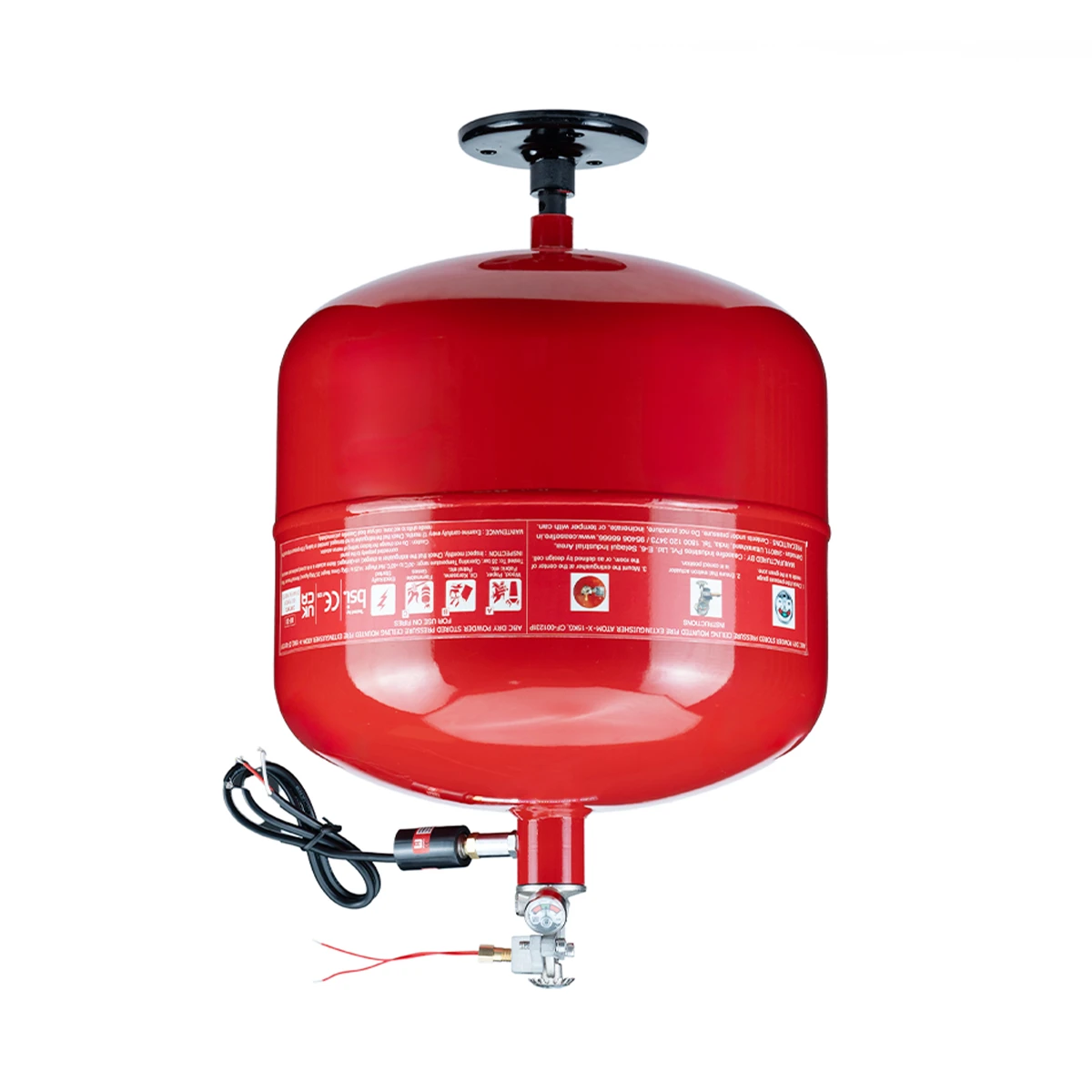

Metron Actuator
Upon receiving an electrical impulse, a metal pin is fired inside the actuator that breaks the glass vial placed at the discharge point of Atom-X M Series units, triggering the discharge of the agent. What makes the Atom-X M Series truly versatile is that all Atom-X M Series units fitted with a metron actuator are triggered simultaneously to achieve total flooding results. Buy Metron Actuator here.


Pressure Switch
Extinguishing units deployed in the network are monitorable with the presence of a pressure switch. A pressure switch will trigger alarms in the event of a fire, which adds an extra element of safety to the Atom-X M Series. Furthermore, a pressure switch allows the user to do preventive maintenance of the system via a control panel. Buy Pressure Switch here.

Looking for a Complete Fire Suppression System?

We offer bespoke automatic fire extinguisher systems tailored to your business needs, all at highly competitive prices. To enquire about a full system at a reduced cost, please contact our sales team on 0330 058 0631 or fill out our contact form.

Classification: Effective against all classes of fire.

Agent Options: Available in Clean agent Fluoroketone (FK) and ABC Dry powder.

Requires Minimal Fittings: A key advantage of the system is that it does not require an extensive network of pipes, fittings and ducts, and the plumbing & mechanical works associated with it.

Easy to Install: The system is a retro-fittable one and hence can be installed in a running and functional premises without hindering the daily business operations of the place. This is because minimal structural changes are required to be made in the premises to install the system.

Scalable & System-Ready: The Atom-X M Series extinguishers can be expanded into a total flooding fire suppression system using Metron actuators, detectors and a control panel, providing a scalable protection solution for enclosed and high-risk areas.

Automatic Operation: The extinguisher activates automatically when the ambient temperature reaches approximately 68°C, enabling a fast response to fire in unmanned or low-traffic spaces.

Monitorable: Can be upgraded with a pressure switch to enable system health monitoring.

Added Safety: Equipped with Non-Return Valve (NRV)

Certification: CE marked, UKCA approved, and BSI tested.
