Code: FPS/DC029

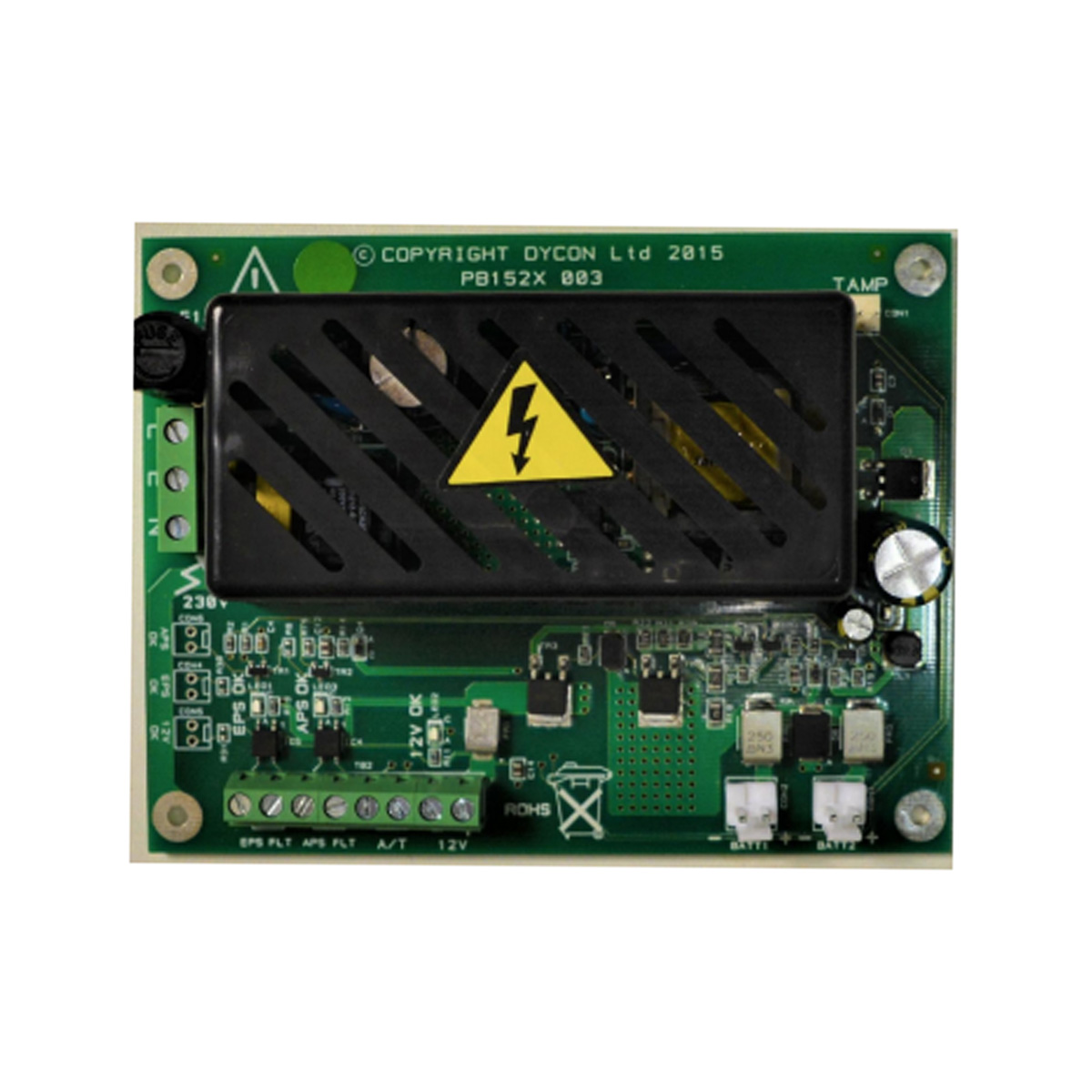

Dycon D152X-Series are 0.5A, 1A & 2AEN-Compliant, switched-mode power supplies which satisfy the requirements of EN50131-1 and PD6662 to Security Grade 2. These Grade 2 units have two voltage free outputs and LEDs are provided to monitor for External Power Supply (EPS) faults and for Auxiliary Power Supply (APS) Faults.
The maximum current available from the ‘Power Output’ terminals depends on the type of power supply and the batteries connected, the D1520 and D1521 versions allow two batteries to be connected whereas the D1522 can have three.
All batteries are monitored for low-voltage, disconnection and load test and, if more than one battery is fitted, they are monitored individually. The batteries and electronics protected against reverse-polarity battery connection by self-resetting electronic fuses and are also protected against deep discharge which will activate if the voltage drops below 10.5Vdc.
Power Supply: Type A; D1520/1/2 Security Grade 2 Environmental Class 2
Voltage Input: 230Vac +10% -15%; 50Hz ± 15%
AC Input Fuse: D1520/1/31-230V, 1A
Output Voltage with AC Power: Maximum 13.7Vdc nominal
Output Ripple: < 50mV peak-to-peak at full rated output
Maximum Output Current at Full Load: D1520-0.5A
Battery Recharge Time: D1520/1/2 < 72 hours
Minimum Standby Output Voltage: 9.6Vdc
Maximum Over-Voltage Cut-Out: 14.4Vdc ±3%
Low Battery Fault: 11Vdc ±3%
Low-Voltage Power Output Fault: 12.3Vdc ±3%
Battery Deep Discharge Voltage Limit: 10.5Vdc ±3%
Automatic Reset Time *: 10ms to 18s
Operating Temperature Range: -10˚C to +40˚C
Humidity: 95% non-condensing
PCB size (h x w x d): 130 x 100 x 38mm
Weights: PCB-0.19kg
Note: * Depending on the nature and duration of the fault.
