Code: FPS/DC245
from
INC VAT
Code: FPS/DC245

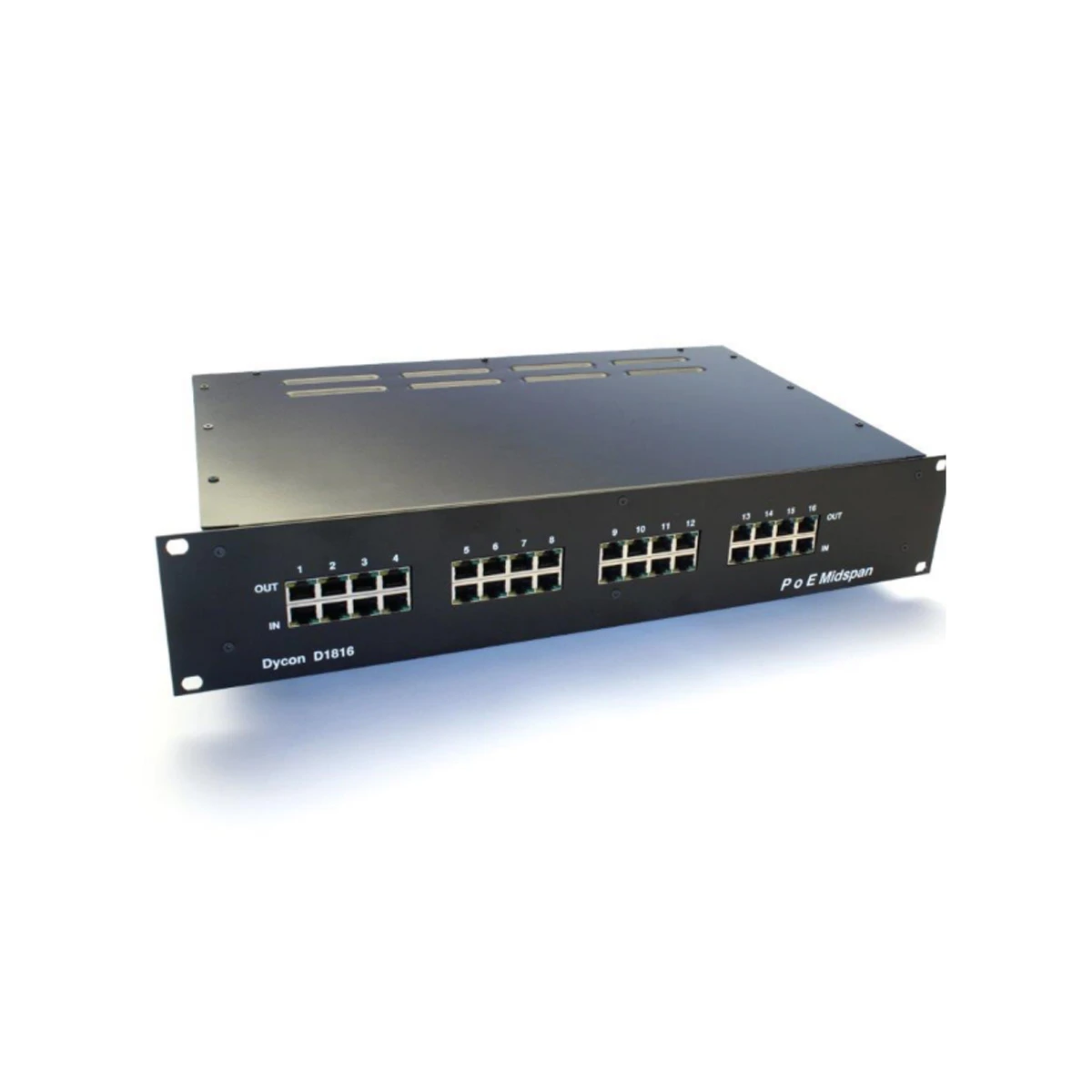

The Dycon D18XX-series provides a simple way of powering a wide range of IP network peripherals, eliminating the need for individual, localized power supply units. The range provides true ‘plug-&-play’ connectivity – no programming is required making this the ideal, economical way to mix different applications, such as CCTV, access control and EPOS in a single power source.
As well as providing a full mid-span 35W per channel output, the Dycon D18XX-series can dramatically simplify installation cabling with subsequent reductions in installation or repositioning costs by utilizing existing network data cables instead of having to provide separate power feeds. Supplied in a 19” rack 2U housing, the D18XX-series fits easily into existing control equipment or IP networks.
As the units use Dycon’s advanced switched-mode technology, they generate such little heat that they do not require noisy cooling fans and these silent-running units can be mounted in such noise sensitive areas as control rooms. Dycon’s advanced switched-mode technology is a market leader in lowering the electricity consumption of connected systems, making the D18XX-series and important component in reducing both users’ electricity costs and carbon footprints.
Max Power available: 140 watts
Max input current: 0.65A
Voltage Input: 230Vac +10% -15%; 50Hz ± 15%
Inputs: 10.100 Base-T / 580 watts maximum @ 230Vac, 50Hz/49Hz to 61Hz AC input/input 207Vac to 253Vac
Outputs: 35 watts per port @ 52Vdc to 56Vdc / < 0.6V noise and ripple/negative output on 7/8 wire pair / 0V output on 4/5 wire pair
Indicators: Yellow LEDs on RJ45 power jacks = power available / Green LEDs on RJ45 power jacks = power on / Neon AC indicator on switched IEC socket
Mounting: 19” rack-mounting (optional desk-mounting feet supplied)
Fuse rating: Time delay T6.3A 20mm fuse, 250V
Operating Temperature Range: -10˚C to +40˚C
Humidity: 95% non-condensing
IEEEE Compliance: IEEE802.3at compliant – IEEE802.3af backwards compatible
Other Compliance: CE and RoHS
The Dycon D18XX-series provides a simple way of powering a wide range of IP network peripherals, eliminating the need for individual, localized power supply units. The range provides true ‘plug-&-play’ connectivity – no programming is required making this the ideal, economical way to mix different applications, such as CCTV, access control and EPOS in a single power source.
As well as providing a full mid-span 35W per channel output, the Dycon D18XX-series can dramatically simplify installation cabling with subsequent reductions in installation or repositioning costs by utilizing existing network data cables instead of having to provide separate power feeds. Supplied in a 19” rack 2U housing, the D18XX-series fits easily into existing control equipment or IP networks.
As the units use Dycon’s advanced switched-mode technology, they generate such little heat that they do not require noisy cooling fans and these silent-running units can be mounted in such noise sensitive areas as control rooms. Dycon’s advanced switched-mode technology is a market leader in lowering the electricity consumption of connected systems, making the D18XX-series and important component in reducing both users’ electricity costs and carbon footprints.
Max Power available: 140 watts
Max input current: 0.65A
Voltage Input: 230Vac +10% -15%; 50Hz ± 15%
Inputs: 10.100 Base-T / 580 watts maximum @ 230Vac, 50Hz/49Hz to 61Hz AC input/input 207Vac to 253Vac
Outputs: 35 watts per port @ 52Vdc to 56Vdc / < 0.6V noise and ripple/negative output on 7/8 wire pair / 0V output on 4/5 wire pair
Indicators: Yellow LEDs on RJ45 power jacks = power available / Green LEDs on RJ45 power jacks = power on / Neon AC indicator on switched IEC socket
Mounting: 19” rack-mounting (optional desk-mounting feet supplied)
Fuse rating: Time delay T6.3A 20mm fuse, 250V
Operating Temperature Range: -10˚C to +40˚C
Humidity: 95% non-condensing
IEEEE Compliance: IEEE802.3at compliant – IEEE802.3af backwards compatible
Other Compliance: CE and RoHS
