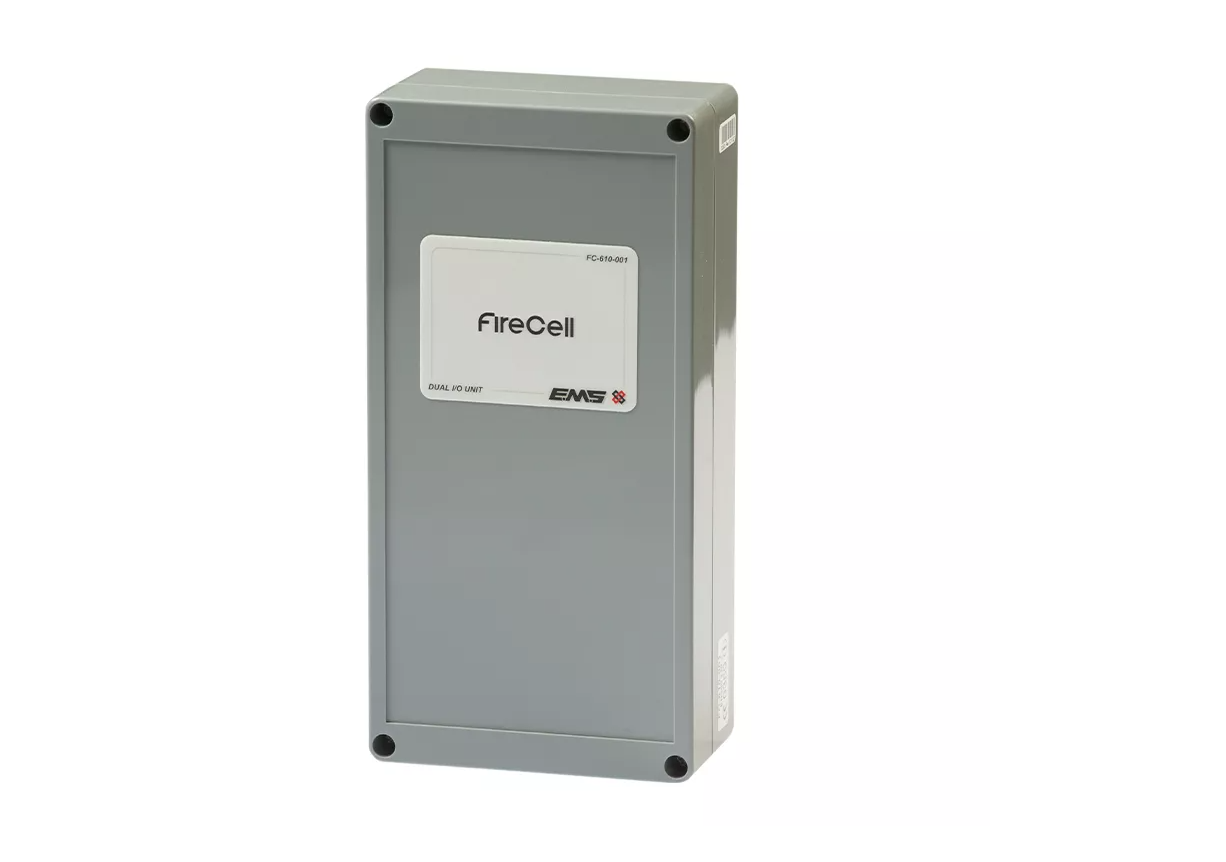

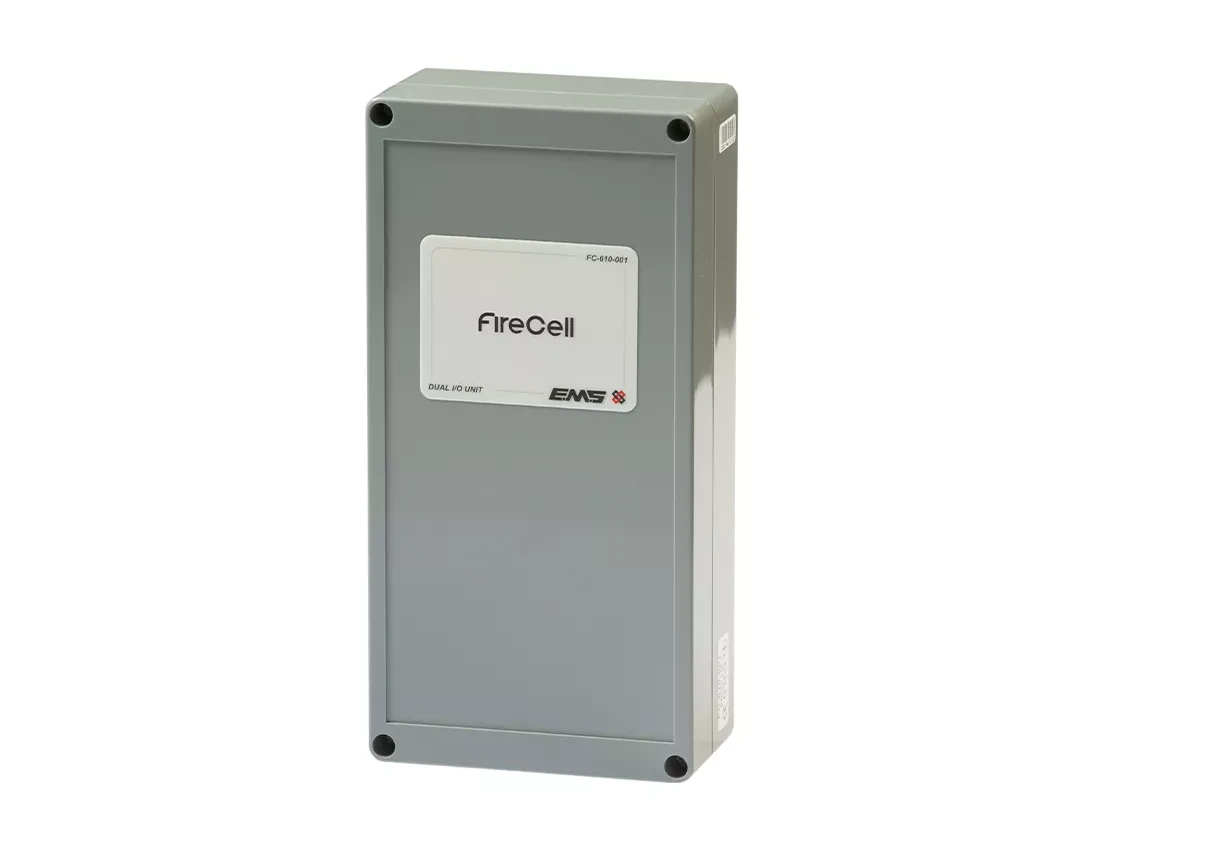

EMS FireCell FC-610-001 Wireless Dual Input / Output Unit
Code: FPS008/002
INC VAT
Code: FPS008/002
The EMS FireCell FC-610-001 Wireless Input/Output Unit offers fast installation, individual addressing at the Fire Control Panel and efficient use of just one system address. It provides two supervised inputs and two voltage-free outputs rated 2A @ 24V.
Fully EN certified, it integrates seamlessly with the EMS FireCell system, Fusion Radio Loop Module (RLM) and Wireless Zone Monitor (WZM). An optional 230 Vac Auxiliary Relay Module adds high-voltage switching capability.
Robust Wireless I/O: Reliable control and monitoring without cables
Dual-Band 868 MHz: Strong, interference-resistant signal every time
Smart Inputs: Two fully supervised channels for assured detection
High-Power Outputs: Two 2 A @ 24 V voltage-free outputs for critical loads
Easy Expansion: Optional 230 Vac relay module for high-voltage switching
Fully Certified: EN54-18 & EN54-25 approved for total compliance
Dimensions: | W:120mm x H:240mm x D:60mm |
Supply: Caution: Fitting of an incorrect battery type invalidates the product certification & may result in poor performance | 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
Operating frequency: | 868 MHz |
Output rating: | 2A @ 24V dc |
Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
IP rating: | IP65 |
Operating temperature: | -10oC to +55oC |
Storage temperature: | 5oC to 30oC |
Humidity: | 0 - 95% non-condensing |
Location: | Type A: for indoor use |
Weight: | 0.95 kg |
The EMS FireCell FC-610-001 Wireless Input/Output Unit offers fast installation, individual addressing at the Fire Control Panel and efficient use of just one system address. It provides two supervised inputs and two voltage-free outputs rated 2A @ 24V.
Fully EN certified, it integrates seamlessly with the EMS FireCell system, Fusion Radio Loop Module (RLM) and Wireless Zone Monitor (WZM). An optional 230 Vac Auxiliary Relay Module adds high-voltage switching capability.
Robust Wireless I/O: Reliable control and monitoring without cables
Dual-Band 868 MHz: Strong, interference-resistant signal every time
Smart Inputs: Two fully supervised channels for assured detection
High-Power Outputs: Two 2 A @ 24 V voltage-free outputs for critical loads
Easy Expansion: Optional 230 Vac relay module for high-voltage switching
Fully Certified: EN54-18 & EN54-25 approved for total compliance
Dimensions: | W:120mm x H:240mm x D:60mm |
Supply: Caution: Fitting of an incorrect battery type invalidates the product certification & may result in poor performance | 6 x AA alkaline (Panasonic LR6AD Powerline / Varta 4006 Industrial) |
Operating frequency: | 868 MHz |
Output rating: | 2A @ 24V dc |
Output transmitter power: | Auto adjusting 0 to 14dBm (0 to 25mW) |
IP rating: | IP65 |
Operating temperature: | -10oC to +55oC |
Storage temperature: | 5oC to 30oC |
Humidity: | 0 - 95% non-condensing |
Location: | Type A: for indoor use |
Weight: | 0.95 kg |
