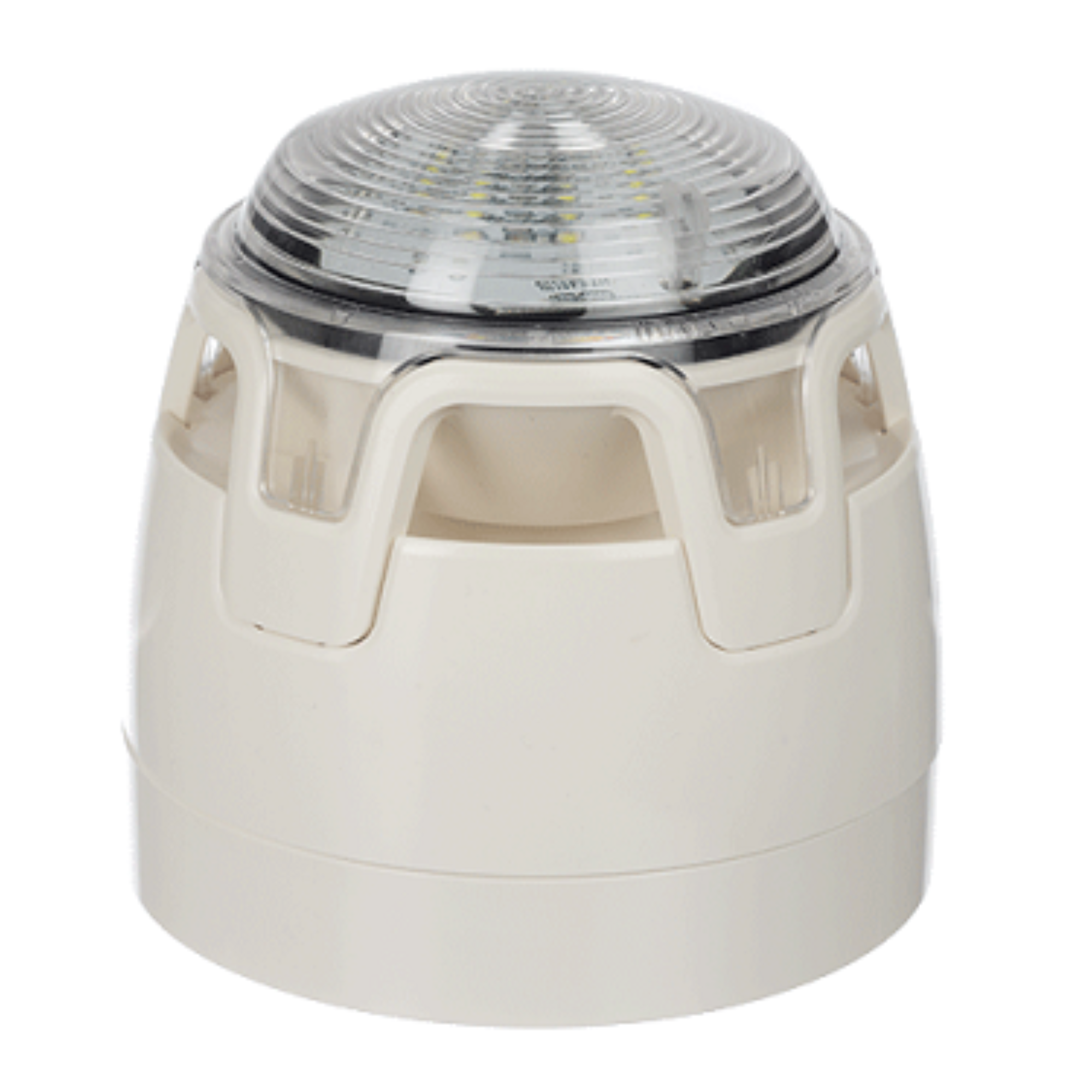

KAC Conventional White Sounder VAD Shallow Base w/ White Flash (CWSS-WW-S5)
Code: FPS003/027
INC VAT
Code: FPS003/027
The KAC (CWSS-WW-S5) is an EN54-approved combined sounder and flashing beacon unit. Delivering outstanding quality, reliability and extended operational life.
The conventional white sounder VAD shallow base with flashing light is ideal for use where audible and visual alerts are essential. It features a folded horn design, powerful LEDs, advanced optics and a sepcially engineered lens - providing outstanding sound output and omnidirectional light coverage at low current draw.
Engineered with full range of common fixing centres.
First fix capability enables electrical continuity testing before the device is installed.
Positive fit engagement and feedback of base with device for straightforward installation.
Omni-directional light distribution removes the need to position the device in a specific direction.
Operating Voltage | 9 to 29VDC (Approved to EN54-3 @ 9-14V and 18-29V) |
Average Current Consumption | 31mA @ 29VDC (Tone 8) |
Maximum Sound Output | 107dB (A) @ 1m (Tone 23) |
Operating Temperature | -25°C to 70°C |
Relative Humidity | 93% ±3% non condensing |
Ingress Protection | IP21C – low profile base |
Body Colour | White |
Volume Setting | High or medium |
Material | Flame retardant PC/ABS |
The KAC (CWSS-WW-S5) is an EN54-approved combined sounder and flashing beacon unit. Delivering outstanding quality, reliability and extended operational life.
The conventional white sounder VAD shallow base with flashing light is ideal for use where audible and visual alerts are essential. It features a folded horn design, powerful LEDs, advanced optics and a sepcially engineered lens - providing outstanding sound output and omnidirectional light coverage at low current draw.
Engineered with full range of common fixing centres.
First fix capability enables electrical continuity testing before the device is installed.
Positive fit engagement and feedback of base with device for straightforward installation.
Omni-directional light distribution removes the need to position the device in a specific direction.
Operating Voltage | 9 to 29VDC (Approved to EN54-3 @ 9-14V and 18-29V) |
Average Current Consumption | 31mA @ 29VDC (Tone 8) |
Maximum Sound Output | 107dB (A) @ 1m (Tone 23) |
Operating Temperature | -25°C to 70°C |
Relative Humidity | 93% ±3% non condensing |
Ingress Protection | IP21C – low profile base |
Body Colour | White |
Volume Setting | High or medium |
Material | Flame retardant PC/ABS |
