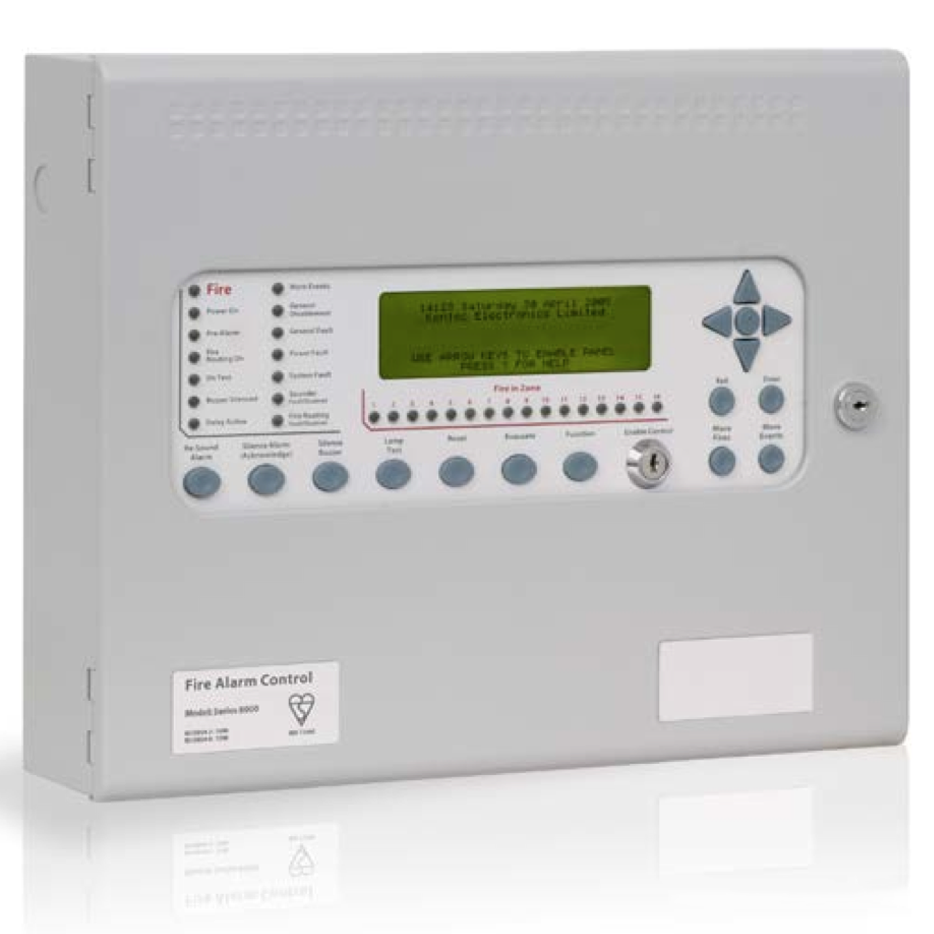

Kentec Syncro AS Lite Addressable Control Panel
Code: FPS200/002
from
INC VAT
Code: FPS200/002
The Kentec Syncro AS Lite uses the same advanced microprocessor-based technology as the standard Syncro range but does not support networking with other panels.
Designed for reliability and ease of use, the Syncro AS Lite features a large graphical display, along with a user-friendly layout of buttons and indicators—making it easy to operate for installers, commissioning engineers, and end users.
The Kentec LA81161M2 Syncro AS Lite is an addressable fire alarm control panel that supports the open Apollo XP95 and Discovery protocols. It comes equipped with one loop card.
The Kentec LH81161M2 Syncro AS Lite is a similar addressable control panel but supports the Hochiki ESP protocol. It also includes one loop card.
Kentec LA81161M2/LH81161M2
Code Access
1 loop addressable panel
Apollo or Hochiki protocol (Selectable)
16 zone incl. led indicators
2 sounder circuits
5 inputs
3 outputs
3A power supply
500 event log
Powerful cause and effect programming
Cannot be networked
Fully certified EN54-2 / EN54-4
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - Lid & Box | BS 00 A 05 grey - fine texture |
Colour - Control Plates & Labels | RAL 7047 light grey - satin |
Weight | 6kg (standard panel) |
Display | 8 lines of 40 characters graphic LCD |
Mains Voltage Supply | 110 or 230V AC 50 or 60 Hz (specify when ordering, default is 230V) |
Mains Supply Fuse | 1.6A 250V |
Power Supply DC Rating | 24V 3 Amps Aux 25V supply (Fused at 500mA) |
Maximum Battery Size | 9Ah 12V (2 per panel) (non-networked) |
Fault Contact Rating | 30V DC 1 Amp |
Fire Contact Rating | 30V DC 1 Amp |
Alarm Contact Rating | 30V DC 1 Amp |
Sounder Output Rating | Fused at 1 Amp each |
Detection Loop | 400mA output |
Detector Protocols | Apollo (S90, XP95, Discovery) |
Printer Port | Serial RS232 |
Serial Expansion Port | Not available |
PC Port | Serial RS232 |
Network Connection | Not available |
Remote Silence Input (SIL) | Switched -ve |
Remote Fault Input (FLT) | Switched -ve |
Remote Reset Input (RES) | Switched -ve |
Remote Alert Input (INT) | Switched -ve |
Remote Evacuate Input (CNT) | Switched -ve |
Download Lead | Standard S187, X187LS economy |
Configuration | Via Loop Explorer PC utility |
PC Graphics | Via Ockular |
Modem | Optional dial-up modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
The Kentec Syncro AS Lite uses the same advanced microprocessor-based technology as the standard Syncro range but does not support networking with other panels.
Designed for reliability and ease of use, the Syncro AS Lite features a large graphical display, along with a user-friendly layout of buttons and indicators—making it easy to operate for installers, commissioning engineers, and end users.
The Kentec LA81161M2 Syncro AS Lite is an addressable fire alarm control panel that supports the open Apollo XP95 and Discovery protocols. It comes equipped with one loop card.
The Kentec LH81161M2 Syncro AS Lite is a similar addressable control panel but supports the Hochiki ESP protocol. It also includes one loop card.
Kentec LA81161M2/LH81161M2
Code Access
1 loop addressable panel
Apollo or Hochiki protocol (Selectable)
16 zone incl. led indicators
2 sounder circuits
5 inputs
3 outputs
3A power supply
500 event log
Powerful cause and effect programming
Cannot be networked
Fully certified EN54-2 / EN54-4
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - Lid & Box | BS 00 A 05 grey - fine texture |
Colour - Control Plates & Labels | RAL 7047 light grey - satin |
Weight | 6kg (standard panel) |
Display | 8 lines of 40 characters graphic LCD |
Mains Voltage Supply | 110 or 230V AC 50 or 60 Hz (specify when ordering, default is 230V) |
Mains Supply Fuse | 1.6A 250V |
Power Supply DC Rating | 24V 3 Amps Aux 25V supply (Fused at 500mA) |
Maximum Battery Size | 9Ah 12V (2 per panel) (non-networked) |
Fault Contact Rating | 30V DC 1 Amp |
Fire Contact Rating | 30V DC 1 Amp |
Alarm Contact Rating | 30V DC 1 Amp |
Sounder Output Rating | Fused at 1 Amp each |
Detection Loop | 400mA output |
Detector Protocols | Apollo (S90, XP95, Discovery) |
Printer Port | Serial RS232 |
Serial Expansion Port | Not available |
PC Port | Serial RS232 |
Network Connection | Not available |
Remote Silence Input (SIL) | Switched -ve |
Remote Fault Input (FLT) | Switched -ve |
Remote Reset Input (RES) | Switched -ve |
Remote Alert Input (INT) | Switched -ve |
Remote Evacuate Input (CNT) | Switched -ve |
Download Lead | Standard S187, X187LS economy |
Configuration | Via Loop Explorer PC utility |
PC Graphics | Via Ockular |
Modem | Optional dial-up modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
