Code: MOR/DXC1
from
INC VAT
Code: MOR/DXC1

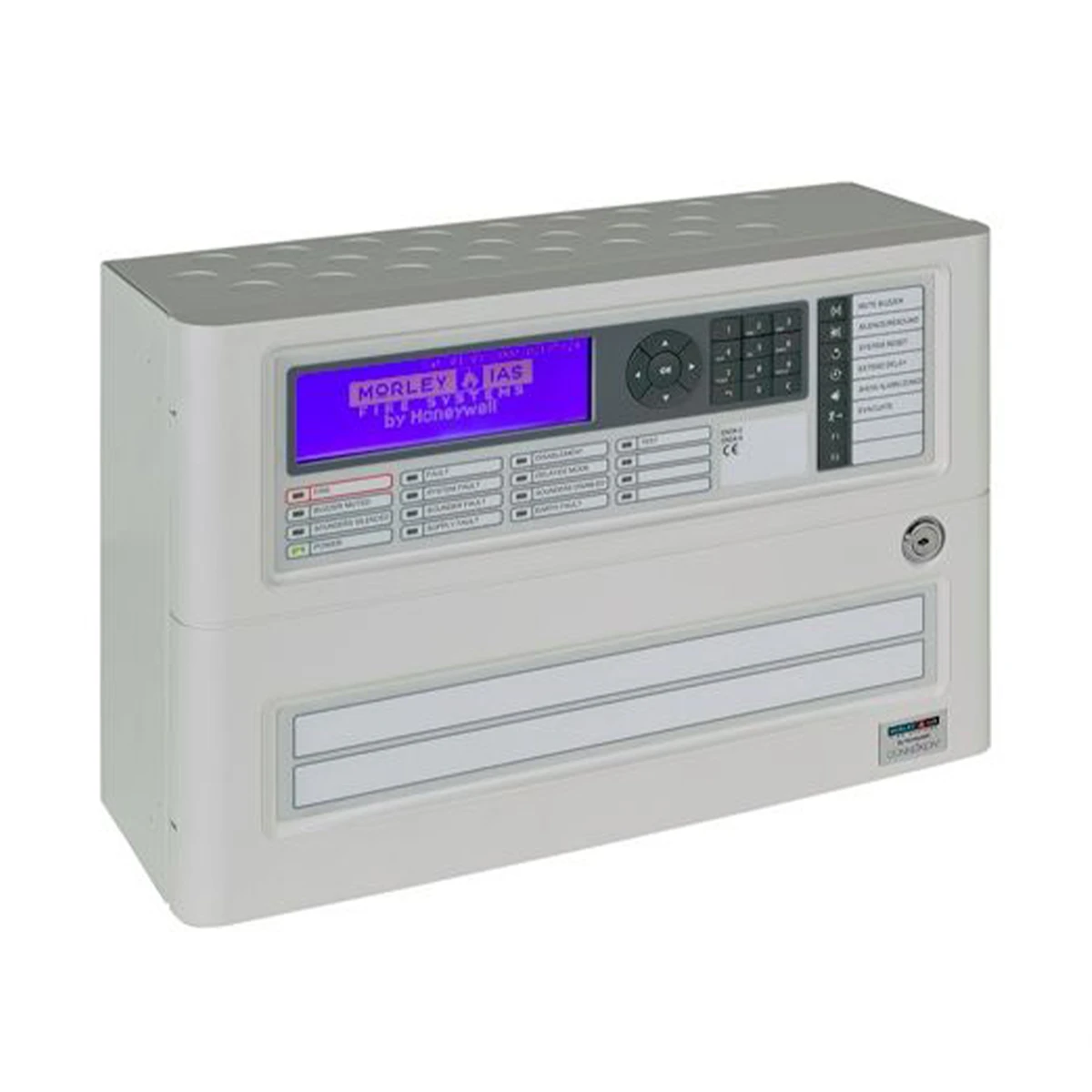

The Morley-IAS DX Connexion panel is ideally suited for use in the protection of small to medium-sized buildings. All in all, a compact, high-performance, feature-rich, economical fire alarm control panel designed to help both the installer and the end user.
The DX Connexion is an enhancement of the Morley-IAS Dimension panel range, connecting the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality.
The multi-protocol DX Connexion range of fire alarm control panels has been developed to be the most time-efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button pressesyou can have a compliant, working fire alarm system. The panel's large graphical display provides a clear menu structure, making the whole initial set-up process quick, clear and intuitive.
Additionally, programming the control panel couldn't be easier. Complex configuration can be achieved by using either the panels mobile phone-style keypad or by using the Windows PC programming tool supplied with the panel.
Morley-IAS Loop Addressable Control Panel | ||
Supports Apollo, Hochiki ESP, and System Sensor protocols | Network up to 16 loops (any mix of 1, 2, or 4-loop panels) | True peer-to-peer, fault-tolerant network (BS5839-1 compliant) |
Large blue LCD display | Quick 5-key setup | Disable all relays function |
USB upload/download support | Alpha-numeric keypad with navigation keys | Supports 160-zone compact mimic |
Morley-IAS 714-001-111 Single Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 260mm | Width | 390mm |
Depth | 147mm | Weight | 4.0kg |
Morley-IAS 714-001-221 Two Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 391.5mm | Width | 390mm |
Depth | 147mm | Weight | 4.5kg |
Morley-IAS 714-001-241 Four Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 391.5mm | Width | 390mm |
Depth | 147mm | Weight | 4.5kg |
The Morley-IAS DX Connexion panel is ideally suited for use in the protection of small to medium-sized buildings. All in all, a compact, high-performance, feature-rich, economical fire alarm control panel designed to help both the installer and the end user.
The DX Connexion is an enhancement of the Morley-IAS Dimension panel range, connecting the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality.
The multi-protocol DX Connexion range of fire alarm control panels has been developed to be the most time-efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button pressesyou can have a compliant, working fire alarm system. The panel's large graphical display provides a clear menu structure, making the whole initial set-up process quick, clear and intuitive.
Additionally, programming the control panel couldn't be easier. Complex configuration can be achieved by using either the panels mobile phone-style keypad or by using the Windows PC programming tool supplied with the panel.
Morley-IAS Loop Addressable Control Panel | ||
Supports Apollo, Hochiki ESP, and System Sensor protocols | Network up to 16 loops (any mix of 1, 2, or 4-loop panels) | True peer-to-peer, fault-tolerant network (BS5839-1 compliant) |
Large blue LCD display | Quick 5-key setup | Disable all relays function |
USB upload/download support | Alpha-numeric keypad with navigation keys | Supports 160-zone compact mimic |
Morley-IAS 714-001-111 Single Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 260mm | Width | 390mm |
Depth | 147mm | Weight | 4.0kg |
Morley-IAS 714-001-221 Two Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 391.5mm | Width | 390mm |
Depth | 147mm | Weight | 4.5kg |
Morley-IAS 714-001-241 Four Loop Control Panel, 230Vac, 2 sounder circuits | |||
Height | 391.5mm | Width | 390mm |
Depth | 147mm | Weight | 4.5kg |
