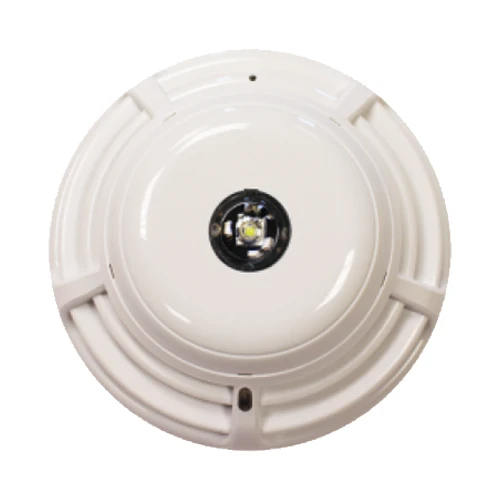

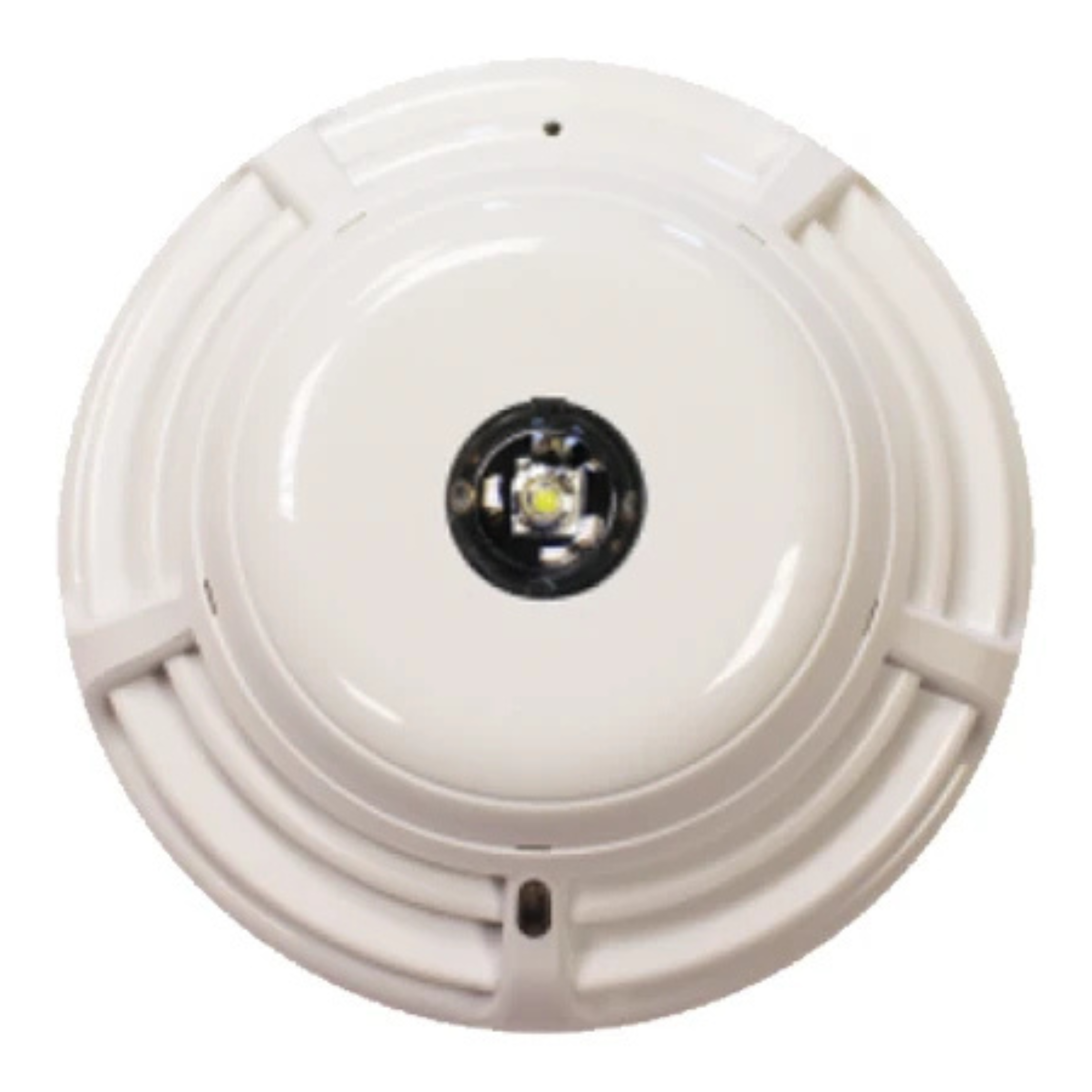

SmartCell SC-23-0220-0001 | Wireless Dual Smoke/Heat Detector with Sounder & Beacon
Code: FPS331/326
INC VAT
Code: FPS331/326
SmartCell SC-23-0220-0001 Wireless Dual Smoke/Heat Detector with Sounder & Beacon meets BS 5839-1 standards, providing both visual and audible fire detection alerting in a single, compact unit.
Fully wireless, it features an integrated sounder and white flashing beacon for dependable fire detection in homes, HMOs and smaller commercial premises.
When connected to the SmartCell Wireless Control Panel, it offers flexible detection options, including smoke, heat, or combined modes.
In locations where both visual and audio warnings are essential, the SC-23-0220-0001 delivers advanced protection. It features 32 selectable sounder tones, a highly visible white VAD beacon, tamperproof mounting, annd a long-life 5-year battery.
As part of the SmartCell wireless fire detection system, it supports a maximum of 64 wireless devices, including a maximum of 32 detection devices.
Dual detection: smoke, heat or combined (selectable)
Integrated 90 dB sounder with 32 tone options
White VAD flashing beacon for visual alarm indication
Fully wireless with compact, aesthetic housing
BS 5839-1:2017 and EN approved
Tamperproof mounting
Supplied with 5-year lithium battery
Compatible with up to 64 SmartCell wireless devices
Ideal for HMOs, residential buildings and light commercial use
Part number | SC-23-0220-0001 |
Compatible control panel | SC-11-1201-0001 |
Max number of devices per panel | 32 detectors with sounder and beacon |
Operating frequency | 868 to 870 MHz |
Sounder output | 89dB(A) @ 1m |
Sounder tones | 32 tones selectable high or low volume |
Visual alarm | fully compliant white flash |
IP rating | IP21C indoor use only |
Power supply | 3 x ER140505M (supplied) |
Dimensions | 110x58mm |
IP rating | indoor use only |
Complies with | CE and CPR compliant EN54-3 EN54-5 EN54-7 EN54-13 EN54-23 EN54-25 |
