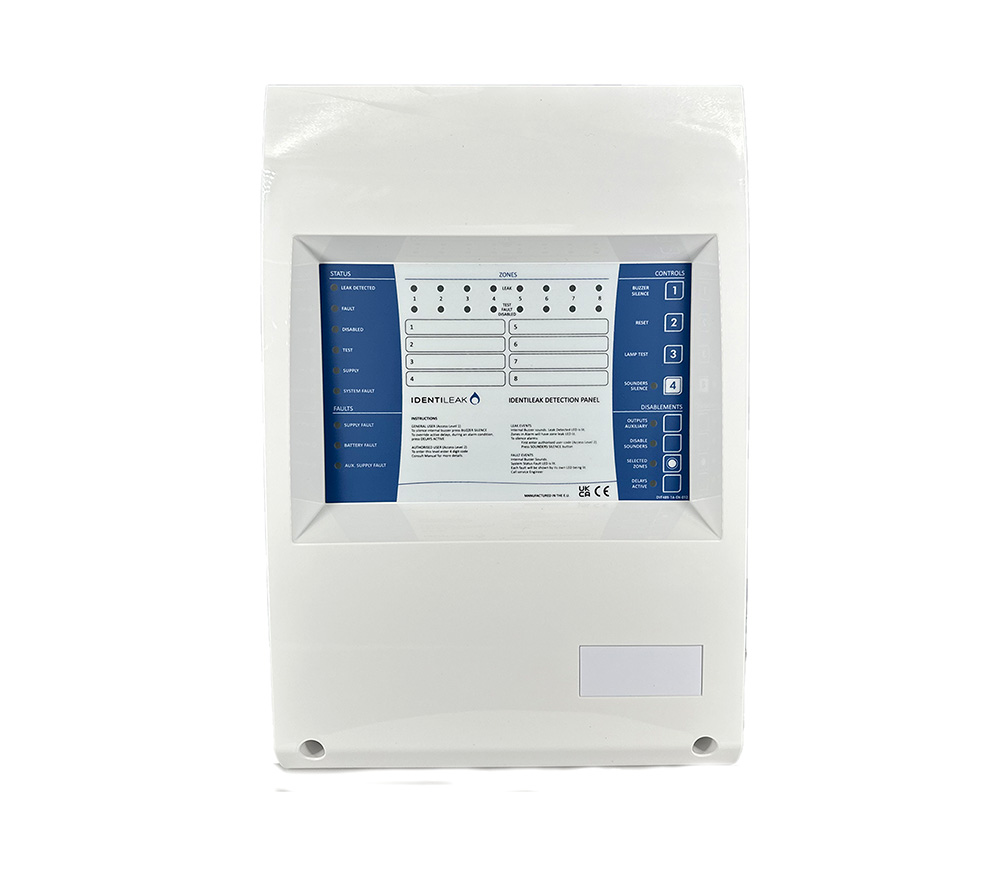

The Vimpex Identi-Leak Water Leak Detection Panel offers reliable monitoring for both linear and point-type water detection systems.
It supports connection with Identi-Leak detection cable and probes, allowing flexible coverage across small to medium-sized sites.
Panels are available in versions from two to eight detection zones, each featuring two dedicated sounder circuits for alert signalling.
Built-in alarm and fault relays enable easy integration with BMS systems and solenoid valves.
The system includes a 72-hour battery backup to ensure continued leak monitoring during power interruptions.
Leaks or faults trigger clear visual and audible indicators on the panel.
With the optional Mobile Communicator, alerts can be instantly transmitted to a mobile app for remote monitoring.
Each zone supports up to 50 metres of detection cable or 20 probes, with the ability to mix both within the same zone.
Supports cable and probe detection
Up to 8 detection zones per panel
Two sounder circuits included as standard
72-hour battery backup for power loss protection
Visual and audible leak/fault alerts
Integrates with BMS and solenoid valves
Mobile app alerts via optional communicator
Up to 50m cable or 20 probes per zone
Cable and probes can be mixed in one zone
Specification | Details |
|---|---|
Mains Supply | 230 Vac (100 Watts Max) |
Mains Supply Fuse | 4 A – 250 V Slow Blow – 20 mm |
Output Voltage | 28.5 V nominal Vdc |
Battery Size Max | 12 Vdc 7Ah (2 Batteries) |
Dedicated Sounder Circuits | 24 Vdc, fused at 500 mA |
Aux. Relay Output | 1 × Alarm, 1 × Fault (NO, NC, C) |
Relay Contact Rating | 50 Vdc – 2 A resistive loads |
Detection Circuit EOL | Active EOL – Capacitor |
Sounder Circuit EOL | 10K Ohms, 0.25 W |
IP Rating | 30 |
Operating Temperature | -10°C to 50°C |
Construction | Fire Rated ABS |
Colour | White |
Dimensions (H × W × D) | 404 × 272 × 107 mm |
Weight | 1.7 Kg |
