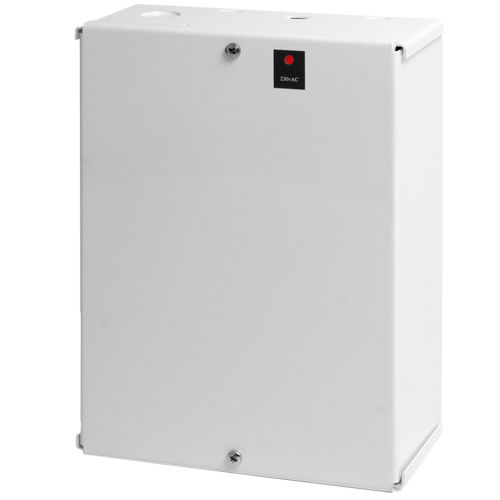

Vimpex VPSU-24-01-SN-A Boxed 24Vdc Power Supply - 24V 1A - 'A' Enclosure
Code: FPS100/640
INC VAT
Code: FPS100/640
The 24 V SN Range of power supplies consists of both low-profile and IP68 variants. The units are available in either 1 Amp, 2 Amp and 4 Amp power ratings with options of up to 8 individually fused output circuits.
Individual fused outputs can provide isolation of selected circuits when servicing or in the event one circuit fails, allowing the rest of the system to operate normally, maintaining system integrity.
All units feature ‘fuse health’ LED’s which are illuminated to show which powered circuit is functioning correctly. Each fused output circuit may have different value fuses to suit individual loads eg camera, lighting etc...
The 4 Amp Versions are offered in a lockable enclosure (keyed alike) while the 2 Amp versions possess a hinged screw lid. Cable entry is achieved by utilising either cable gland knockouts or via the allocated rear cable entry points of the enclosures.
Individual “fuse health” LED indication
White powder coated 1.2 mm thick steel enclosure
Lockable lid (4 A) variants
Low profile design (50 mm) - internal models
Fully regulated 24 V dc output
High efficiency and cost-effective switch mode technology
Full rated current to load
Electronic short-circuit protection
Installer safe, shrouded high voltage electronics
Replaceable 20 mm mains and output fuses
Universal 90 - 264 V ac mains supply
Multiple cable entry/exit options
Modular construction for easy servicing
The 24 V SN Range of power supplies consists of both low-profile and IP68 variants. The units are available in either 1 Amp, 2 Amp and 4 Amp power ratings with options of up to 8 individually fused output circuits.
Individual fused outputs can provide isolation of selected circuits when servicing or in the event one circuit fails, allowing the rest of the system to operate normally, maintaining system integrity.
All units feature ‘fuse health’ LED’s which are illuminated to show which powered circuit is functioning correctly. Each fused output circuit may have different value fuses to suit individual loads eg camera, lighting etc...
The 4 Amp Versions are offered in a lockable enclosure (keyed alike) while the 2 Amp versions possess a hinged screw lid. Cable entry is achieved by utilising either cable gland knockouts or via the allocated rear cable entry points of the enclosures.
Individual “fuse health” LED indication
White powder coated 1.2 mm thick steel enclosure
Lockable lid (4 A) variants
Low profile design (50 mm) - internal models
Fully regulated 24 V dc output
High efficiency and cost-effective switch mode technology
Full rated current to load
Electronic short-circuit protection
Installer safe, shrouded high voltage electronics
Replaceable 20 mm mains and output fuses
Universal 90 - 264 V ac mains supply
Multiple cable entry/exit options
Modular construction for easy servicing
