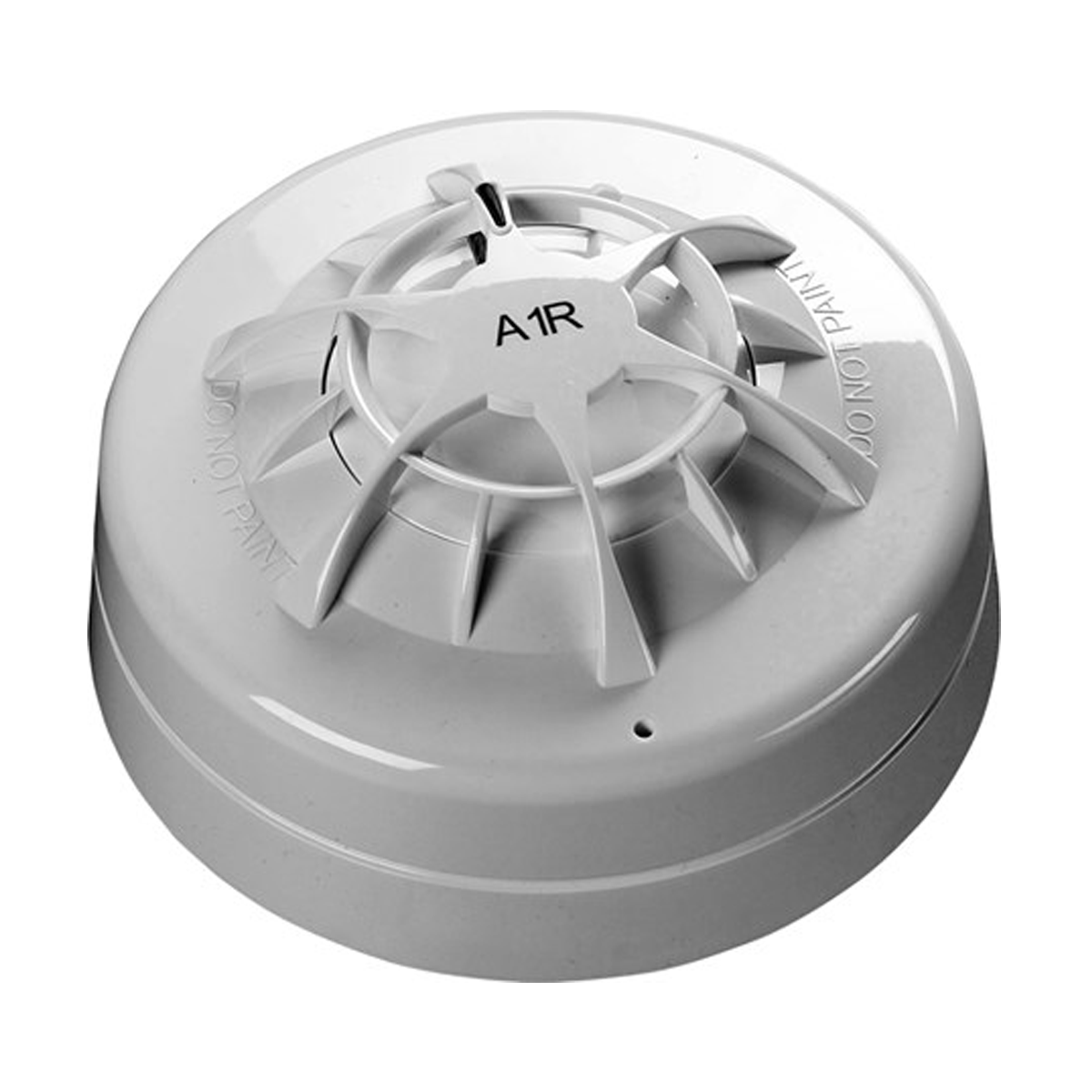

Apollo ORB-HT-11001-APO Orbis A1R Conventional Heat Detector
We Recommend
Bestseller
INC VAT
Code: APORBD001/003
The Apollo ORB-HT-11001-APO Orbis A1R Conventional Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Orbis optical smoke detector
Ideal for when smoke detectors are unsuitable
Suitable in environments that are dirty or smoky under normal conditions
Red flashing LED at start up to confirm the device is operating
SensAlert yellow flashing LED indicates faulty operation
FasTest takes just four seconds to test and confirms detectors are functioning correctly
Base not included
Colour | White |
Fire Type | Slow burning, smouldering fires |
Material exterior | Polycarbonate |
Product diameter | 97mm |
Weight | 70g |
Product length | 1.42in |
Product diameter | 3.82in |
Detection principle | Photo-electric light scattering. |
Polarity | L1 & L2 are polarity insensitive |
Approvals | VdS, LPCB, FG, BOSEC, SBSC, CPR |
Chamber type | Chevron |
Maximum power-up time | <20 seconds |
Quiescent current | 95μA |
Quiescent current tested at | 24V dc |
Polarity | L1 & L2 are polarity sensitive |
Sampling frequency | Once every 4 seconds |
Minimum 'detector active' voltage | 6V |
Holding voltage | 5 to 33V |
Holding voltage (max) | 33V |
Holding voltage (min) | 5V |
Minimum voltage to light alarm LED | 5V |
Alarm reset time | 1s |
Alarm load | 600Ω |
Humidity (max) | 98% RH |
Humidity (min) | 0% RH |
Operating temperature | -40 to 70°C |
Operating temperature (max) | 70°C |
Operating temperature (min) | -40°C |
IP rating Value | IP23D |
Storage temperature (max) | 70°C |
Storage temperature (min) | -40°C |
Storage temperature | -40 to 70°C |
Operating temperature | -40 to 158°F |
Operating temperature (max) | 158°F |
Operating temperature (min) | -40°F |
The Apollo ORB-HT-11001-APO Orbis A1R Conventional Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.
Orbis optical smoke detector
Ideal for when smoke detectors are unsuitable
Suitable in environments that are dirty or smoky under normal conditions
Red flashing LED at start up to confirm the device is operating
SensAlert yellow flashing LED indicates faulty operation
FasTest takes just four seconds to test and confirms detectors are functioning correctly
Base not included
