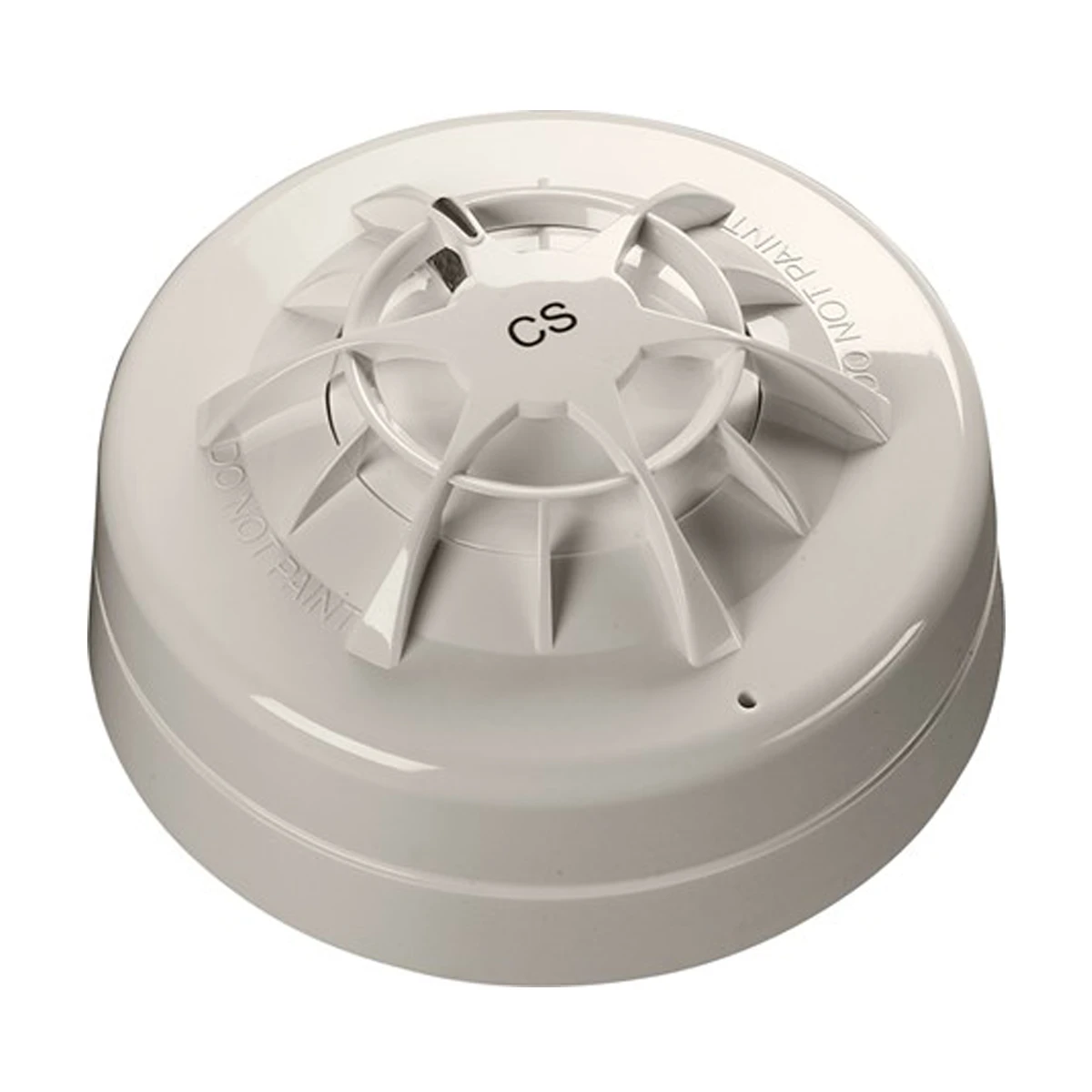

Apollo ORB-HT-41006-MAR Orbis Marine CS Heat Detector
INC VAT
Code: APORBD001/039
The Orbis Marine Heat Detector uses a single thermistor to sense the air temperature around the detector.
There are twelve heat detectors in the Orbis Marine range designed to suit a wide variety of operating conditions.
ORB-HT-41006-MAR
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions
Flashing LED option
Approved for use in marine environments
Modern, low-profile design
TimeSaver® Base for fast installation
Transient rejection for false alarm reduction
High humidity tolerance at up to 98% RH
Wide operating temperature -40°C to +70°C
Heat classification | CS |
Colour | White |
Weight | 70g |
Material exterior | Polycarbonate |
Product length | 36mm |
Product diameter | 97mm |
Product length | 1.42in |
Product diameter | 3.82in |
Approvals | BV, LR, DNV.GL, CCS, KRS, ABS, MED |
Maximum power-up time | <20 seconds |
Quiescent current | 95μA |
Quiescent current tested at | 24V dc |
Polarity | L1 & L2 are polarity sensitive |
Minimum 'detector active' voltage | 6V |
Holding voltage | 5 to 33V |
Holding voltage (max) | 33V |
Holding voltage (min) | 5V |
Minimum voltage to light alarm LED | 5V |
Alarm reset voltage | <1V |
Alarm reset time | 1s |
Alarm load | 600Ω |
Sampling frequency | Once every 4 seconds |
Humidity (max) | 98% RH |
Humidity (min) | 0% RH |
Humidity Note | no condensation or icing |
Humidity | 0% to 98% (no condensation or icing) |
IP rating Value | IP23D |
The Orbis Marine Heat Detector uses a single thermistor to sense the air temperature around the detector.
There are twelve heat detectors in the Orbis Marine range designed to suit a wide variety of operating conditions.
ORB-HT-41006-MAR
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions
Flashing LED option
Approved for use in marine environments
Modern, low-profile design
TimeSaver® Base for fast installation
Transient rejection for false alarm reduction
High humidity tolerance at up to 98% RH
Wide operating temperature -40°C to +70°C
Heat classification | CS |
Colour | White |
Weight | 70g |
Material exterior | Polycarbonate |
Product length | 36mm |
Product diameter | 97mm |
Product length | 1.42in |
Product diameter | 3.82in |
Approvals | BV, LR, DNV.GL, CCS, KRS, ABS, MED |
Maximum power-up time | <20 seconds |
Quiescent current | 95μA |
Quiescent current tested at | 24V dc |
Polarity | L1 & L2 are polarity sensitive |
Minimum 'detector active' voltage | 6V |
Holding voltage | 5 to 33V |
Holding voltage (max) | 33V |
Holding voltage (min) | 5V |
Minimum voltage to light alarm LED | 5V |
Alarm reset voltage | <1V |
Alarm reset time | 1s |
Alarm load | 600Ω |
Sampling frequency | Once every 4 seconds |
Humidity (max) | 98% RH |
Humidity (min) | 0% RH |
Humidity Note | no condensation or icing |
Humidity | 0% to 98% (no condensation or icing) |
IP rating Value | IP23D |
