Code: FPS522/001
from
INC VAT
Code: FPS522/001

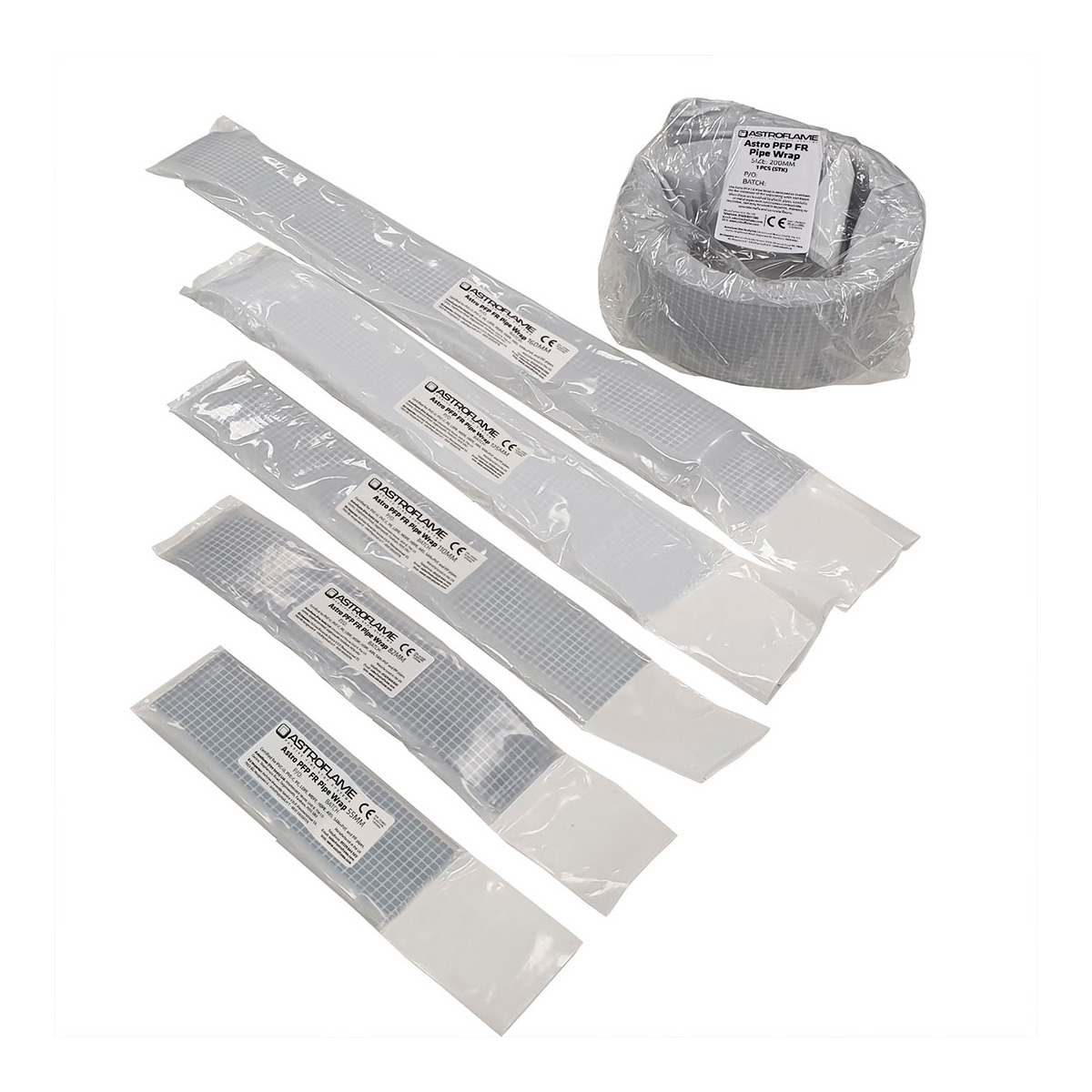

The Astro PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.

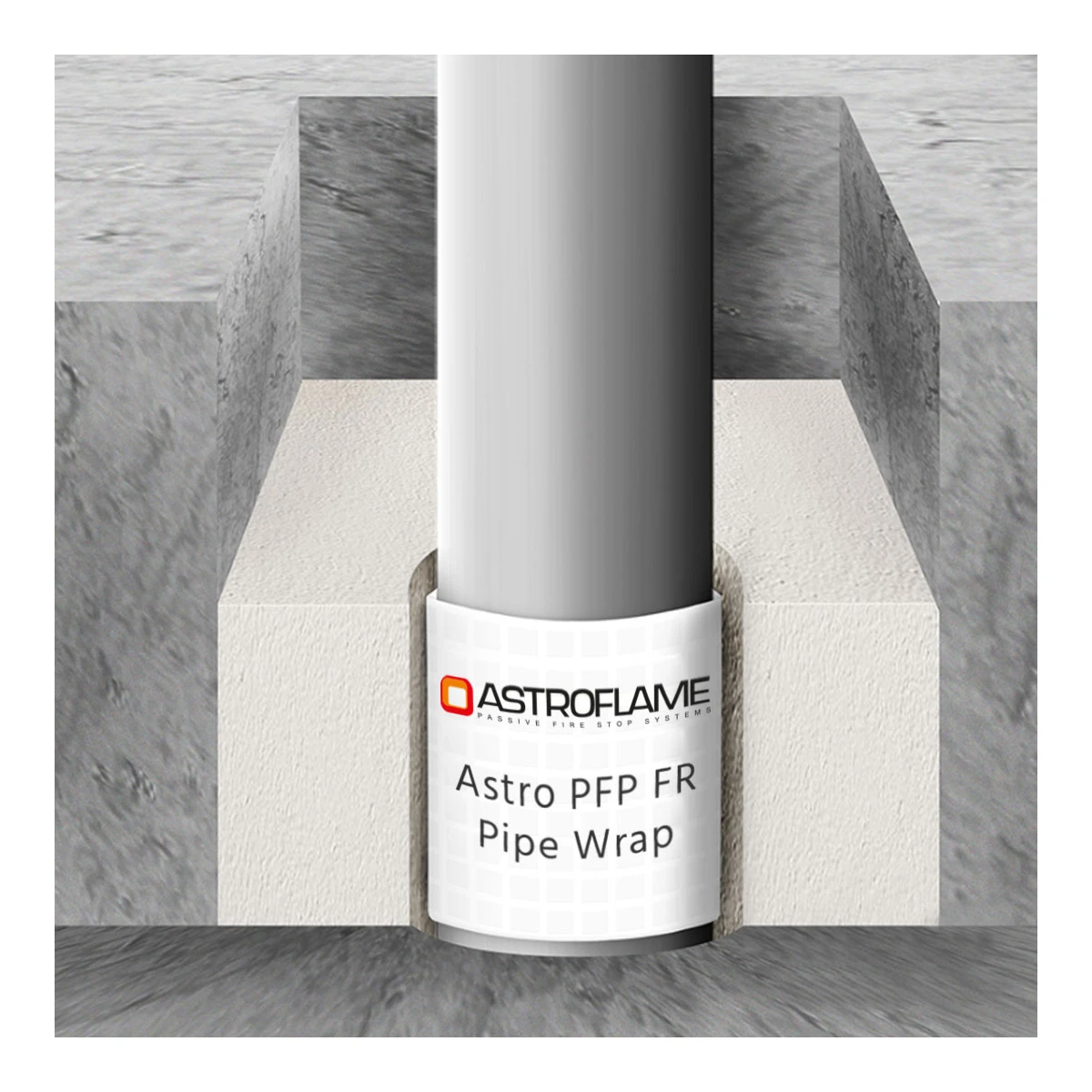

Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with Astro PFP FR EX Mortar or Astro PFP FR Boards.
For plastic pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses.
For metal pipes with continuous combustible pipe insulation.
For plastic pipes with cables (conduits).
Pipe wraps comes ready made for most common diameters.
Fire classifications up to 240 minutes for both integrity and insulation.
Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
Tested and certified for U/U pipe end applications.
Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar.
For internal use.
Technical Approval | ETAG 026-2 |
Durability according to ETAG 026-2 | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C. |
Conditioning procedure | EN 13238:2010 |
Expansion ratio | 28:1 |
Expansion pressure | 55 N |
Colour | Anthracite |
Graphite weight | 1.3 kg/m2 per mm thickness |
Graphite density | 1300 kg/m3 |
Normal expansion time | Less than 10 minutes |
Minimum expansion temperature | 150°C |
Storage | Store in temperatures between 5°C and 30°C |
Life | Under normal conditions; 30 years + |
The Astro PFP FR Pipe Wrap is designed to maintain the fire resistance of fire separating walls and floors when these are breached by plastic pipes, conduits or metal pipes with continuous combustible insulation, and may be used in drywalls, masonry or concrete walls and concrete floors.
Each pipe wrap consists of a graphite based reactive intumescent strip, which reacts to heat and closes the opening left by the softening plastic pipe or pipe insulation in a fire. The pipe wrap is installed completely around the pipes or insulation and secured with the self adhesive tab. The annular space around the pipe wrap is sealed with Astro PFP FR EX Mortar or Astro PFP FR Boards.
For plastic pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses.
For metal pipes with continuous combustible pipe insulation.
For plastic pipes with cables (conduits).
Pipe wraps comes ready made for most common diameters.
Fire classifications up to 240 minutes for both integrity and insulation.
Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes.
Tested and certified for U/U pipe end applications.
Simple to install in both Astro PFP FR Board and Astro PFP FR EX Mortar.
For internal use.
Technical Approval | ETAG 026-2 |
Durability according to ETAG 026-2 | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C. |
Conditioning procedure | EN 13238:2010 |
Expansion ratio | 28:1 |
Expansion pressure | 55 N |
Colour | Anthracite |
Graphite weight | 1.3 kg/m2 per mm thickness |
Graphite density | 1300 kg/m3 |
Normal expansion time | Less than 10 minutes |
Minimum expansion temperature | 150°C |
Storage | Store in temperatures between 5°C and 30°C |
Life | Under normal conditions; 30 years + |
