Vimpex Banshee Excel Capsule Horn Sounder - Red
Code:
INC VAT
Code:

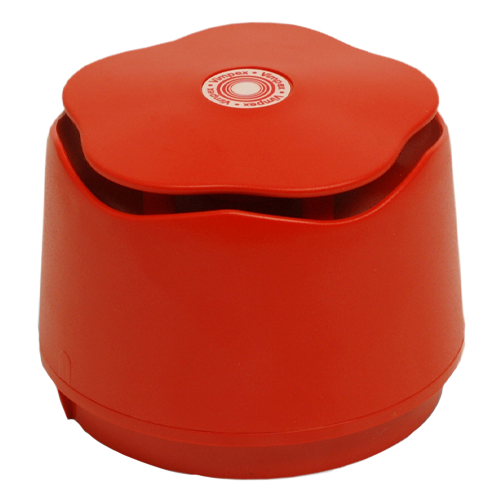

The Banshee Excel Red Capsule Horn Sounder (CH) is a modern, acoustically advanced conventional electronic sounder designed for high performance, versatility, and ease of installation.
Fully approved to EN 54 Part 3, the Excel CH offers exceptional acoustic output with 32 user-selectable tones, ensuring compatibility with industry-standard systems. It also features three selectable volume levels, allowing flexibility across a range of applications.
32 selectable tones for broad compatibility
Three volume settings for adaptable sound output
Red colour (also available in other colours)
Flame-retardant ABS housing for enhanced safety
Low power consumption
Capsule-driven horn for superior sound clarity
Push-and-twist bayonet fitting using the Banshee MT base, compatible across the Excel range
Supplied with a wide range of accessories for flexible installation
The Banshee Excel CH combines sleek design with robust engineering, making it ideal for fire alarm and general signalling applications.
Red colour
32 user-selectable tones - industry standard compatible
Very low current consumption
EN 54-3 tested and fully approved in accordance with CPR
VdS approved
Uses same bases as Banshee MT - simple push and twist bayonet mounting with locking screw
Easy to install with side and rear cable entry
Robust 'two in two out' 2.5 mm terminals
Three selectable volume levels
Extensive family of accessories for a wide range of applications
Recyclable
Specification | Description |
|---|---|
Termination | Screw terminals for 0.28mm² to 2.5mm² wire conductor |
EN54-3 Voltage Range | 24VDC (20VDC to 28VDC) |
Operating Voltage Range | 9-30VDC* |
Not Used Switch 6 | |
Current Consumption | See Sound output table |
Operating Temperature | -25°C to +70°C |
Synchronisation | Synchronised start |
Environment Category | Type A – Shallow Base, Type B – Deep Base |
Second Tone | Connect *terminal to –ve |
Case Material | ABS |
IP Rating | Shallow Base IP45, Deep Base IP66 |
