Astro Intumescent Fire Door Strip - Fire Seal (Twin Blade)
We Recommend
Bestseller
Bulk Buy Options
Code: AFFOS001/045
from
INC VAT
Code: AFFOS001/045
Our intumescent fire and smoke seals are specially developed for fire-rated doors to provide maximum safety and compliance. Each seal features a graphite-based intumescent core encased in a robust PVC sleeve, designed to slot easily into a rebate in either the door leaf or frame.
In the event of a fire, the intumescent strip expands to many times its original size, effectively sealing the gap around the door. This creates a protective barrier against the spread of fire, smoke, and hot gases.
We also offer versions with or without an integrated cold smoke seal in the form of a nylon brush. The smoke seal option provides extra security against smoke, which is particularly important as smoke can travel further and faster than flames.
For ease of installation, all seals come with a self-adhesive backing as standard.
30-minute protection with 10mm and 15mm seals – Certifire Approved
60-minute protection with 20mm and 25mm seals
Smoke seals tested in line with EN1634-3

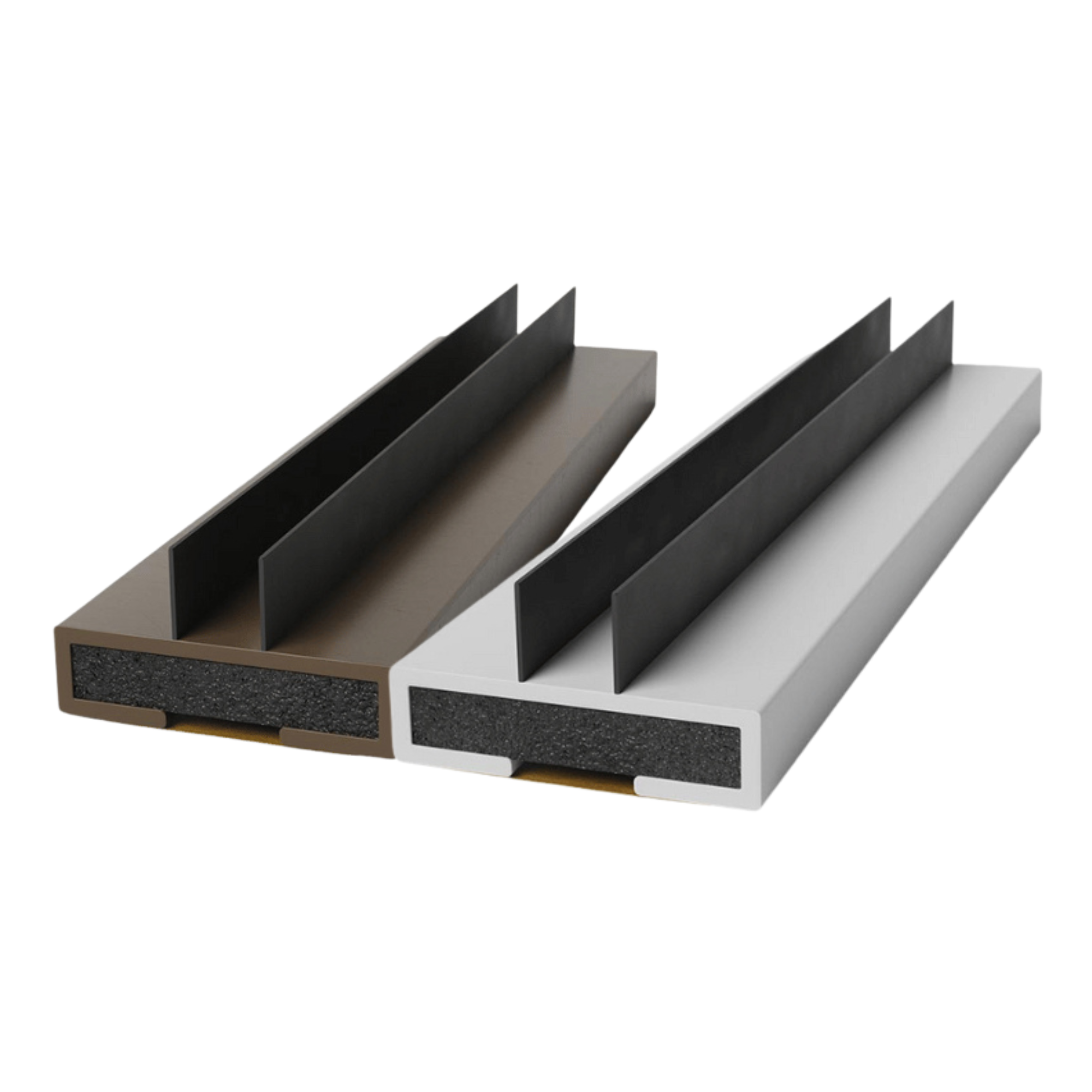

The Astrostrip TB combines intumescent fire protection with a black Neoprene twin-blade smoke seal, delivering both fire resistance and effective smoke control. Available in a range of colours, it not only offers safety but also blends neatly with different door finishes.
Astro Intumescent Fire Door Strip - Fire Seal (Twin Blade) | ||
Certifire-approved fire and smoke seals | BS 476 Part 22:1987 tested | 30 or 60 min rated |
Avaialbe in 1.05 and 2.1 m lengths | Self-adhesive backing | Available in White or Brown |
Astro Intumescent Fire Door Strip -Fire Seal (Twin Blade) | |||
Product Code | AF1004 TB | AF1504 TB | AF2004 TB |
Type | Fire & Smoke | Fire & Smoke | Fire & Smoke |
Fire Rating | 30 Mins | 30 Mins | 60 Mins |
Profile Size | 10mm x 4mm | 15mm x 4mm | 20mm x 4mm |
Lengths | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m |
A. Intumescent seals are materials that expand significantly when exposed to heat, such as during a fire.
This expansion helps to close gaps around fire doors, preventing the passage of fire and smoke.
They are a form of passive fire protection, meaning they work automatically without needing human intervention.
A. Fire doors are designed to contain fires, and intumescent seals are a key component in achieving this.
They help to maintain the fire and smoke resistance of the door assembly.
Without them, gaps around the door can allow fire and smoke to spread, potentially causing significant damage and endangering lives.
Fire-only seals: Expand under heat to block fire
Fire and smoke seals: Expand under heat and also include a brush or rubber seal to block smoke at ambient temperatures.
Always use the correct type of intumescent seal for your fire door.
Regularly inspect and maintain the seals.
If you are unsure about any aspect of intumescent seals, consult with a fire safety professional.
Our intumescent fire and smoke seals are specially developed for fire-rated doors to provide maximum safety and compliance. Each seal features a graphite-based intumescent core encased in a robust PVC sleeve, designed to slot easily into a rebate in either the door leaf or frame.
In the event of a fire, the intumescent strip expands to many times its original size, effectively sealing the gap around the door. This creates a protective barrier against the spread of fire, smoke, and hot gases.
We also offer versions with or without an integrated cold smoke seal in the form of a nylon brush. The smoke seal option provides extra security against smoke, which is particularly important as smoke can travel further and faster than flames.
For ease of installation, all seals come with a self-adhesive backing as standard.
30-minute protection with 10mm and 15mm seals – Certifire Approved
60-minute protection with 20mm and 25mm seals
Smoke seals tested in line with EN1634-3
The Astrostrip TB combines intumescent fire protection with a black Neoprene twin-blade smoke seal, delivering both fire resistance and effective smoke control. Available in a range of colours, it not only offers safety but also blends neatly with different door finishes.
Astro Intumescent Fire Door Strip - Fire Seal (Twin Blade) | ||
Certifire-approved fire and smoke seals | BS 476 Part 22:1987 tested | 30 or 60 min rated |
Avaialbe in 1.05 and 2.1 m lengths | Self-adhesive backing | Available in White or Brown |
Astro Intumescent Fire Door Strip -Fire Seal (Twin Blade) | |||
Product Code | AF1004 TB | AF1504 TB | AF2004 TB |
Type | Fire & Smoke | Fire & Smoke | Fire & Smoke |
Fire Rating | 30 Mins | 30 Mins | 60 Mins |
Profile Size | 10mm x 4mm | 15mm x 4mm | 20mm x 4mm |
Lengths | 1.05m or 2.1m | 1.05m or 2.1m | 1.05m or 2.1m |
A. Intumescent seals are materials that expand significantly when exposed to heat, such as during a fire.
This expansion helps to close gaps around fire doors, preventing the passage of fire and smoke.
They are a form of passive fire protection, meaning they work automatically without needing human intervention.
A. Fire doors are designed to contain fires, and intumescent seals are a key component in achieving this.
They help to maintain the fire and smoke resistance of the door assembly.
Without them, gaps around the door can allow fire and smoke to spread, potentially causing significant damage and endangering lives.
Fire-only seals: Expand under heat to block fire
Fire and smoke seals: Expand under heat and also include a brush or rubber seal to block smoke at ambient temperatures.
Always use the correct type of intumescent seal for your fire door.
Regularly inspect and maintain the seals.
If you are unsure about any aspect of intumescent seals, consult with a fire safety professional.
