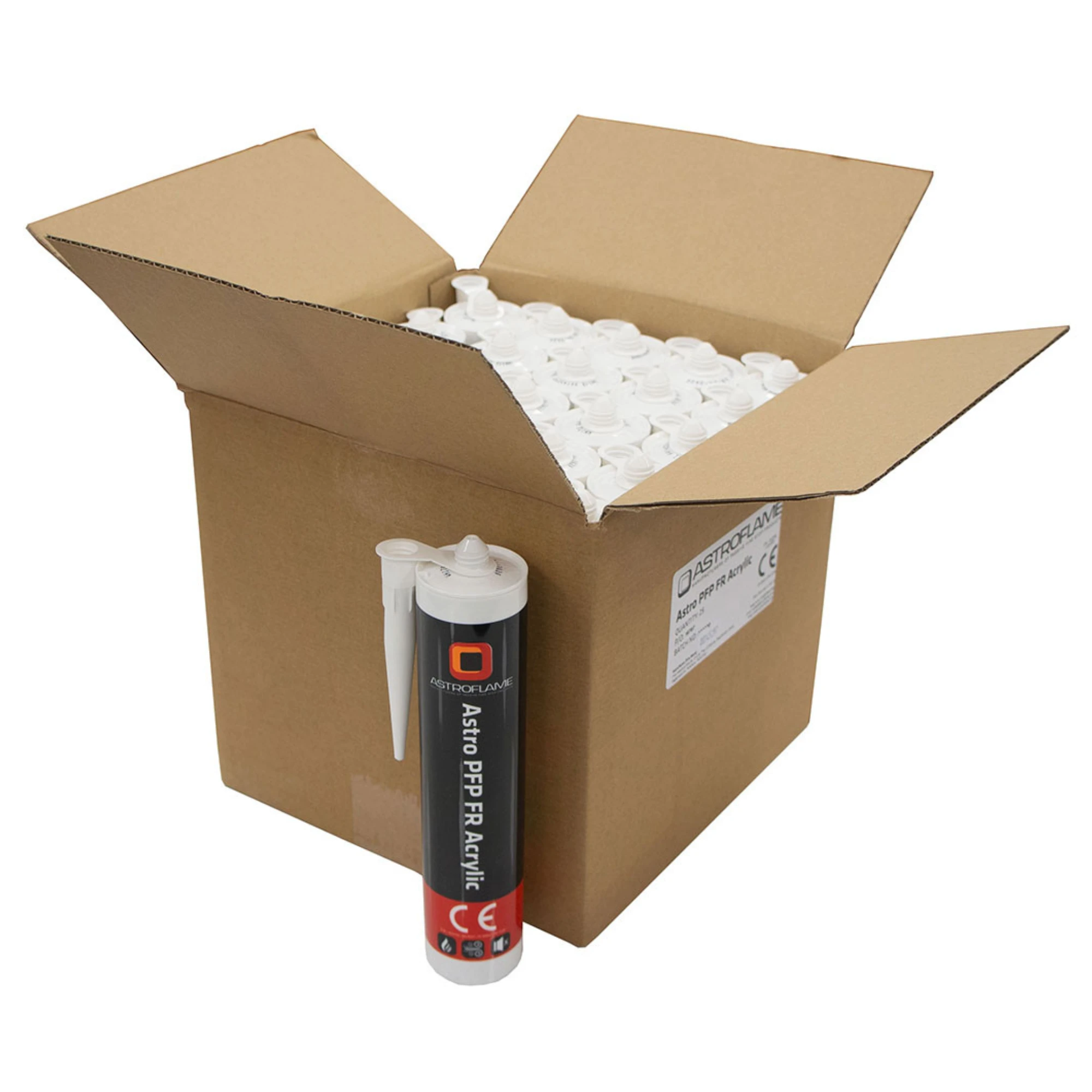

Bulk Buy Options
Code: IM001/004
INC VAT
Code: IM001/004

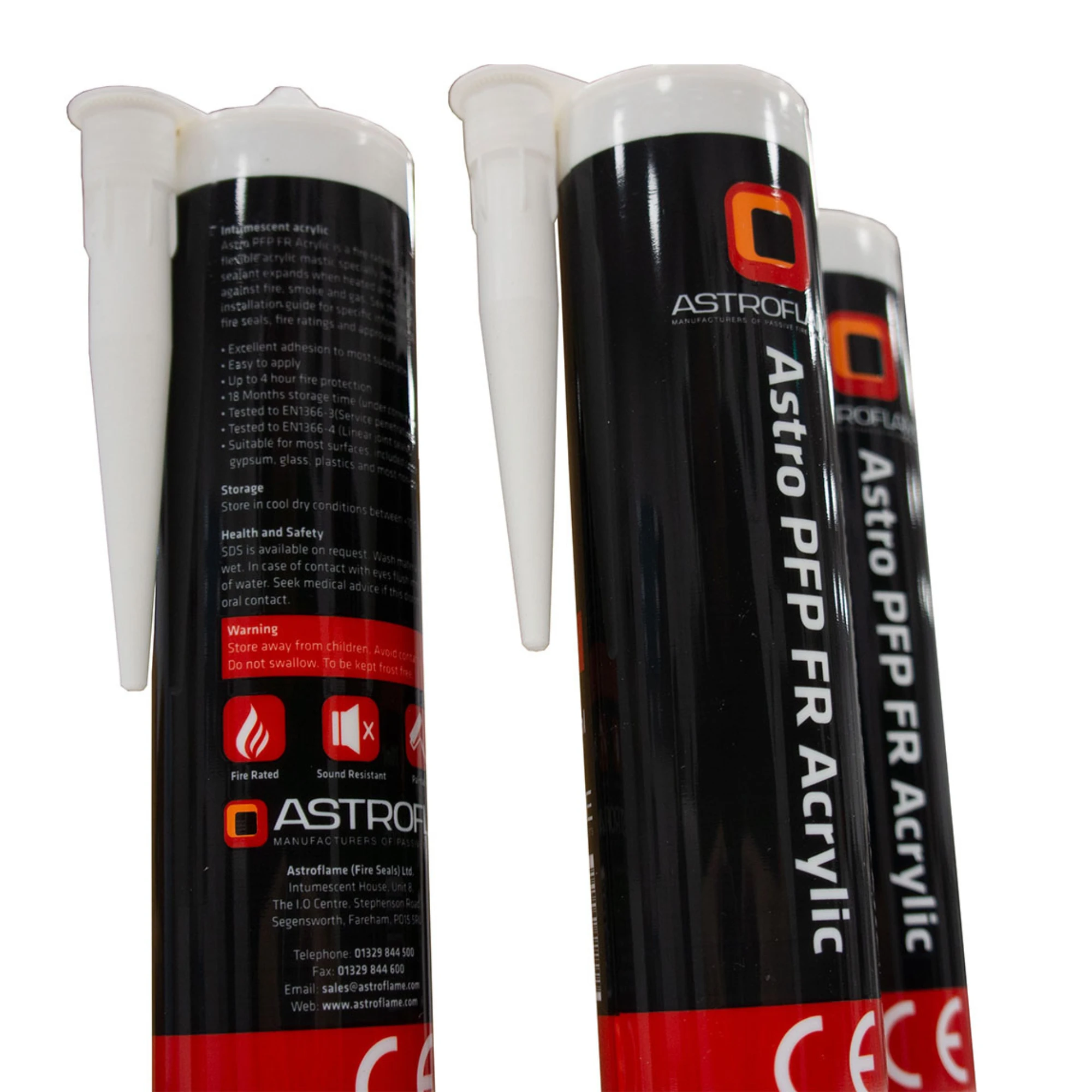

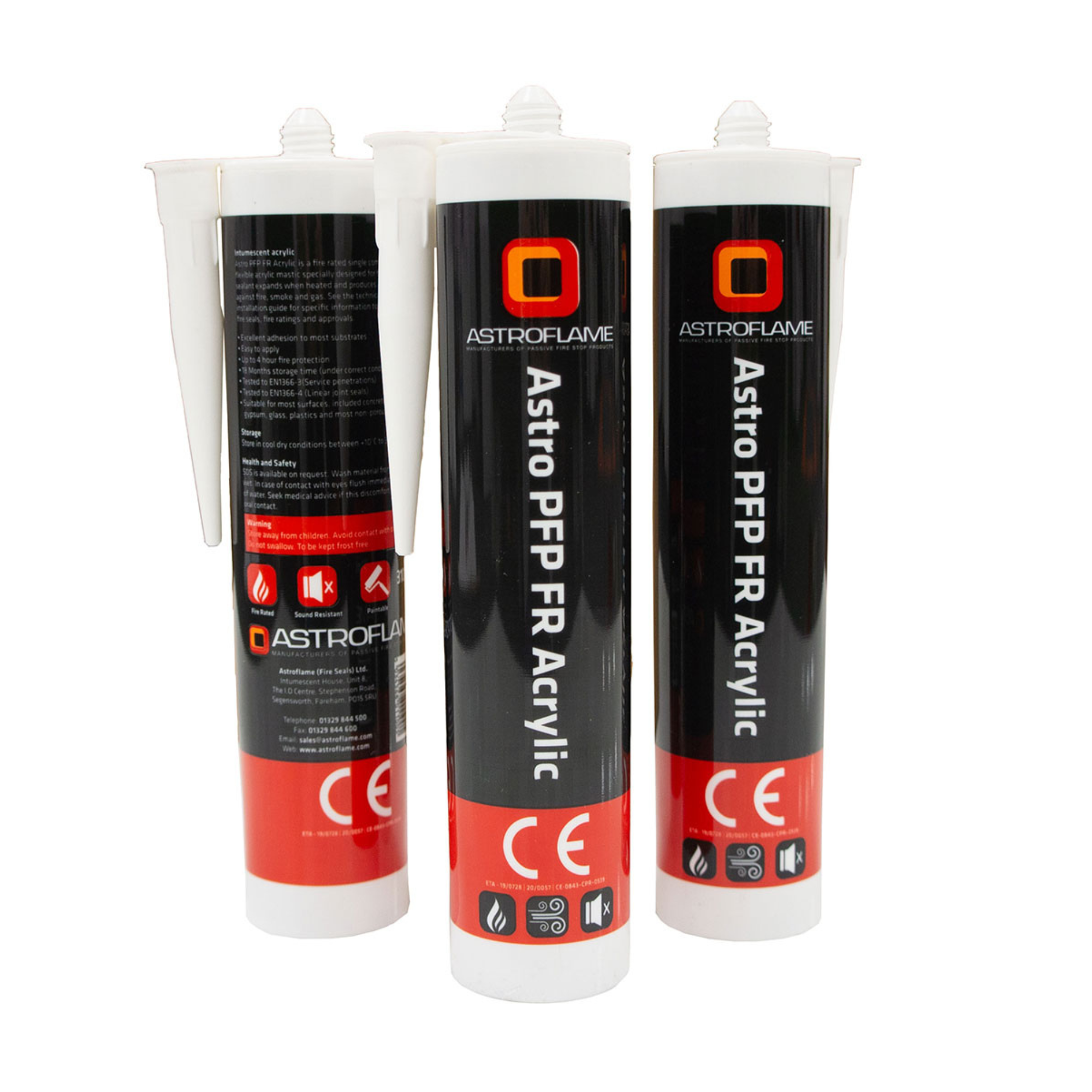

Astro PFP FR Acrylic is designed to prevent the spread of fire and smoke through joints and openings in fire-rated walls and floors, including gaps around building service penetrations. It also preserves the acoustic performance of the structure.
When exposed to normal atmospheric conditions, the sealant cures while retaining flexibility to accommodate joint movement. Under fire conditions, it forms a strong fire seal by expanding into a durable intumescent char.

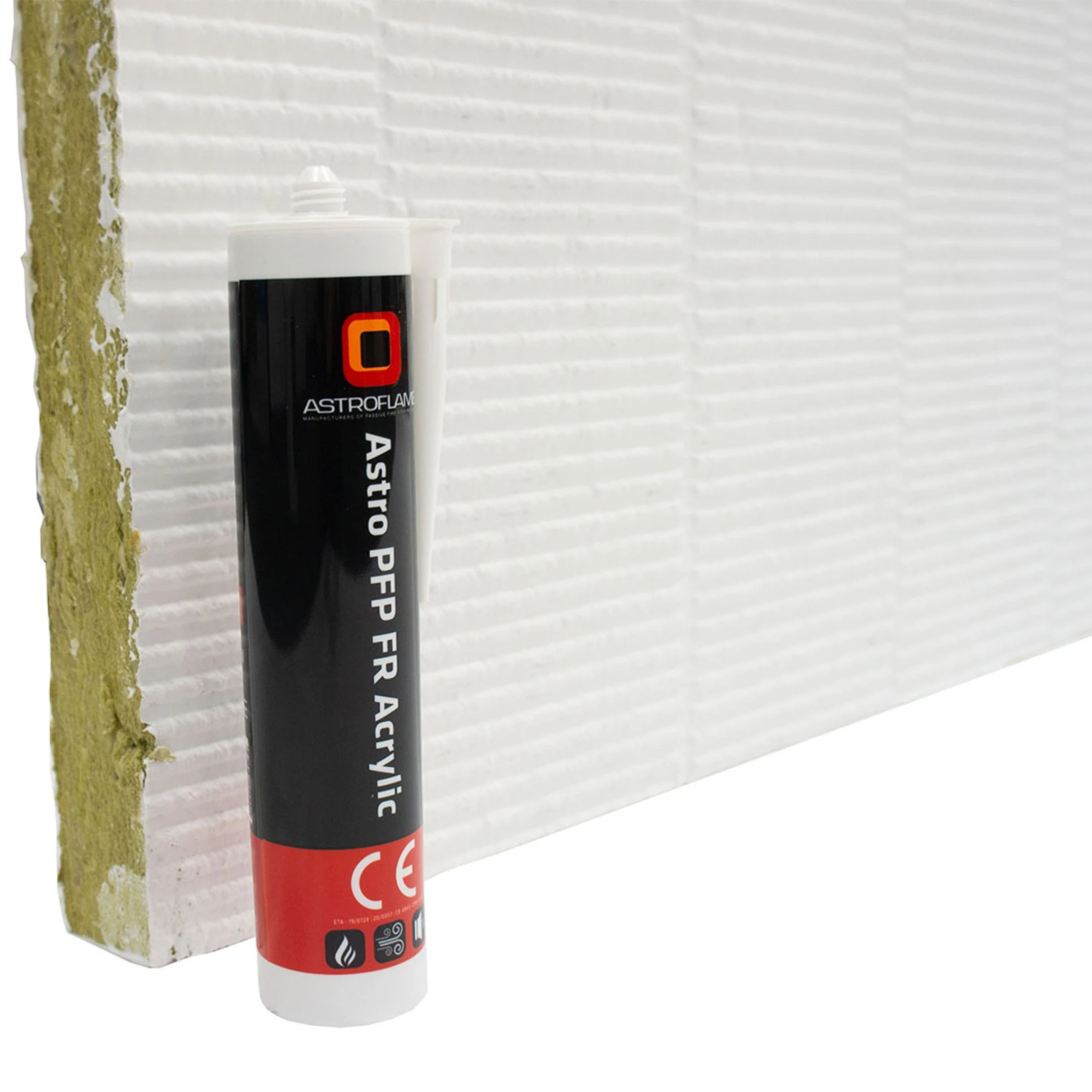

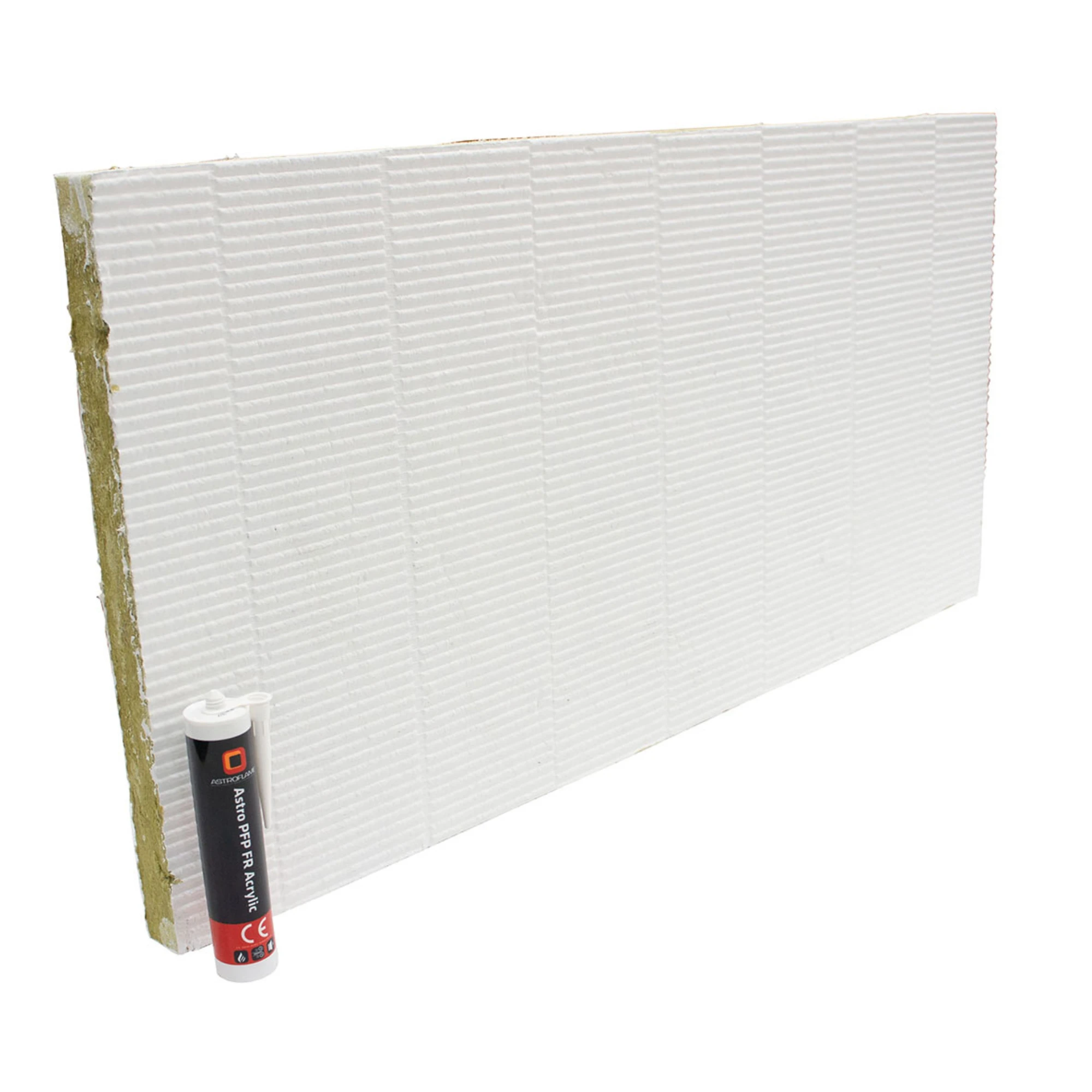

For best results, it should be used with a suitable backing material, such as stone wool or Astro PFP FR backing, to achieve the correct width-to-depth ratio and minimise shrinkage during curing. Installation instructions specify the minimum depth and maximum joint width.
When testing pipes, configurations vary: the pipe may be left uncapped, capped inside the furnace, capped outside the furnace, or capped on both sides. The choice depends on the intended use of the pipe and the installation environment.
The capping configuration is indicated after the fire classification. For example, EI 60 C/U means the pipe was capped inside the furnace and left uncapped outside. The chosen test configuration determines the range of approvals possible.
Astro Intumescent Acrylic Sealant | ||
High-end formula, globally certified | Fire sealing for all construction types & service penetrations | Very high sound insulation |
Low emissions – safe & eco-friendly | Shelf life 24 months | Flexible for movement up to 12.5% |
No priming on most materials | Adheres to concrete, masonry, steel, gypsum, glass, plastics & non-porous surfaces | Tack-free in 1 hour* |
Astro Intumescent Acrylic Sealant | |||
Condition | Ready for use, acrylic based filler | Flash point | None |
Specific gravity | 1.56 - 1.60. | Reaction to fire | B - S1, d0 |
Expansion in fire | 1 : 2-3 | Non-sticky | Max. 75 minutes |
Film forming | Max. 25 minutes | Durability | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C |
Totally hardened | 3 to 5 days depending on thickness and temperature | Flexibility | 12.5% in mortar/concrete/masonry EN ISO 9046 |
BWR 3 | Use category IA1, S/W3 | Thermal conduct. | 0.845 W/mK (+/- 3%) @ 20mm depth |
Storage | 24 months stored in unopened cartridges. To be stored in temperatures between 10°C and 30°C | Service temp. | -20 to +70°C |
Compatibility | Suitable for use with most materials, but should not be used In direct contact with bituminous materials | Application temp. | +5 to +30°C |
Limitations | Should not be used in permanently damp areas or in joints with high movement | Classification | CE-marked - Sealant for fire rated joints and penetrations class EI 240 |
Standard colours | Standard white | Colour codes | White: RAL 9002 |
Astro PFP FR Acrylic is designed to prevent the spread of fire and smoke through joints and openings in fire-rated walls and floors, including gaps around building service penetrations. It also preserves the acoustic performance of the structure.
When exposed to normal atmospheric conditions, the sealant cures while retaining flexibility to accommodate joint movement. Under fire conditions, it forms a strong fire seal by expanding into a durable intumescent char.
For best results, it should be used with a suitable backing material, such as stone wool or Astro PFP FR backing, to achieve the correct width-to-depth ratio and minimise shrinkage during curing. Installation instructions specify the minimum depth and maximum joint width.
When testing pipes, configurations vary: the pipe may be left uncapped, capped inside the furnace, capped outside the furnace, or capped on both sides. The choice depends on the intended use of the pipe and the installation environment.
The capping configuration is indicated after the fire classification. For example, EI 60 C/U means the pipe was capped inside the furnace and left uncapped outside. The chosen test configuration determines the range of approvals possible.
Astro Intumescent Acrylic Sealant | ||
High-end formula, globally certified | Fire sealing for all construction types & service penetrations | Very high sound insulation |
Low emissions – safe & eco-friendly | Shelf life 24 months | Flexible for movement up to 12.5% |
No priming on most materials | Adheres to concrete, masonry, steel, gypsum, glass, plastics & non-porous surfaces | Tack-free in 1 hour* |
Astro Intumescent Acrylic Sealant | |||
Condition | Ready for use, acrylic based filler | Flash point | None |
Specific gravity | 1.56 - 1.60. | Reaction to fire | B - S1, d0 |
Expansion in fire | 1 : 2-3 | Non-sticky | Max. 75 minutes |
Film forming | Max. 25 minutes | Durability | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C |
Totally hardened | 3 to 5 days depending on thickness and temperature | Flexibility | 12.5% in mortar/concrete/masonry EN ISO 9046 |
BWR 3 | Use category IA1, S/W3 | Thermal conduct. | 0.845 W/mK (+/- 3%) @ 20mm depth |
Storage | 24 months stored in unopened cartridges. To be stored in temperatures between 10°C and 30°C | Service temp. | -20 to +70°C |
Compatibility | Suitable for use with most materials, but should not be used In direct contact with bituminous materials | Application temp. | +5 to +30°C |
Limitations | Should not be used in permanently damp areas or in joints with high movement | Classification | CE-marked - Sealant for fire rated joints and penetrations class EI 240 |
Standard colours | Standard white | Colour codes | White: RAL 9002 |
