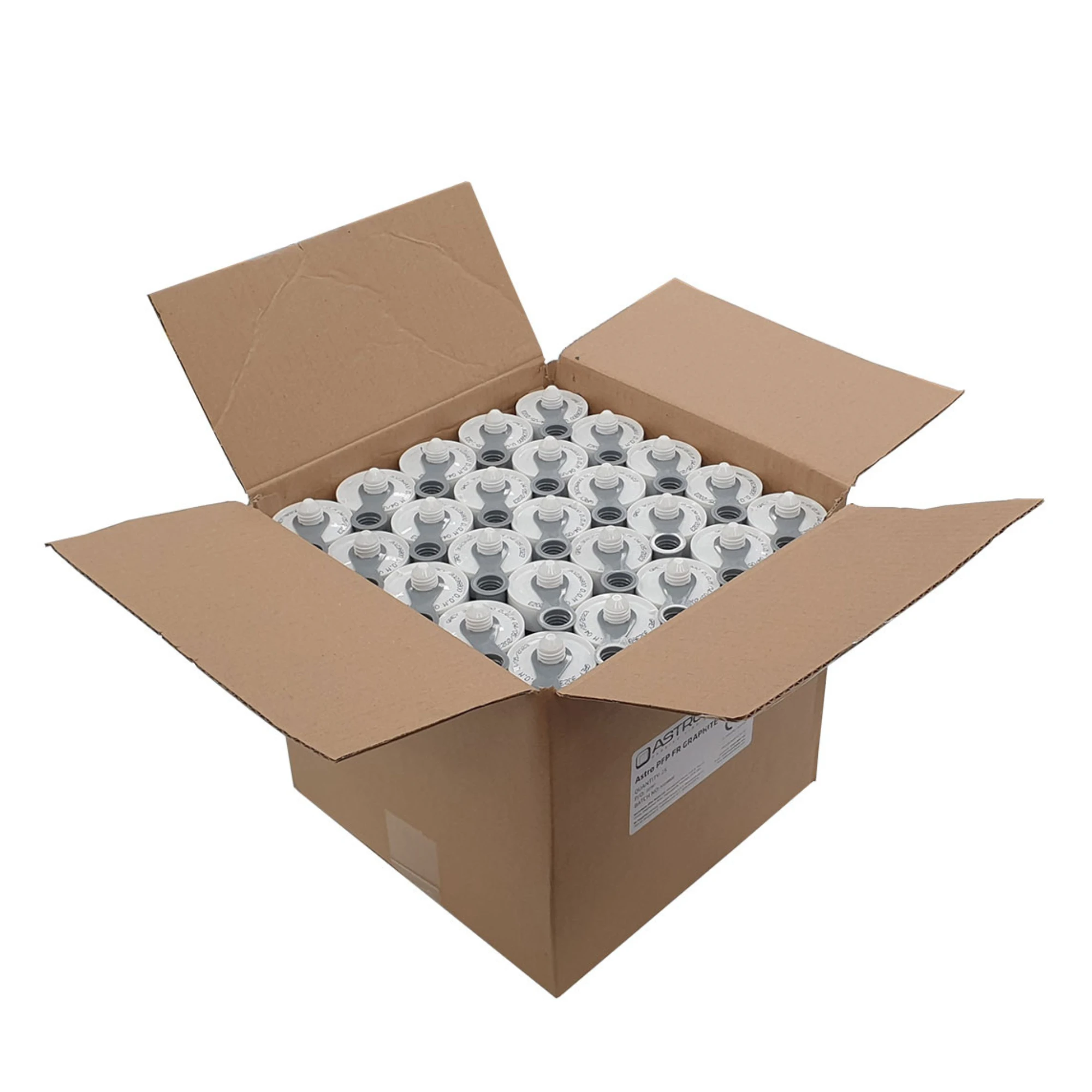

Bulk Buy Options
Code: IM001/005
INC VAT
Code: IM001/005

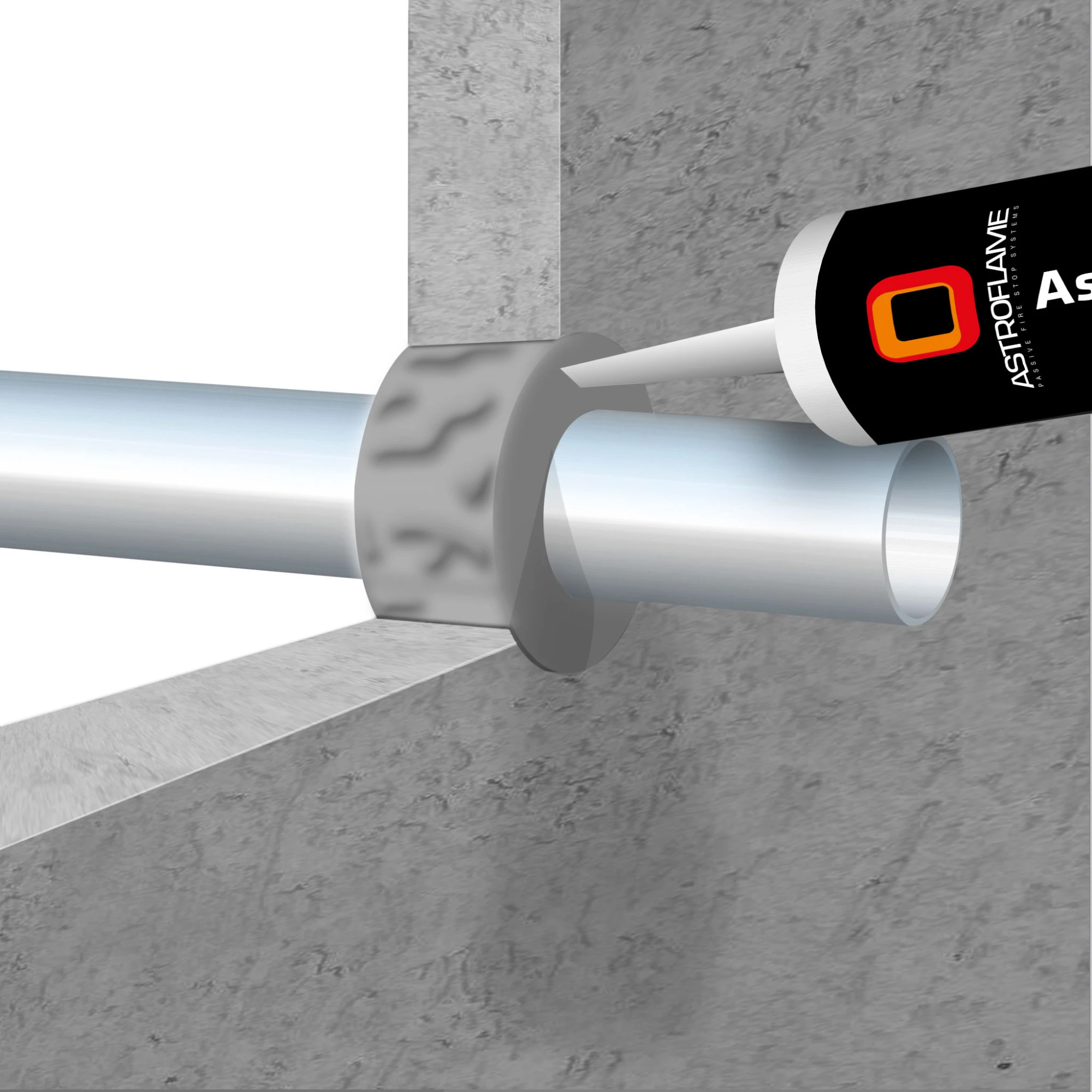

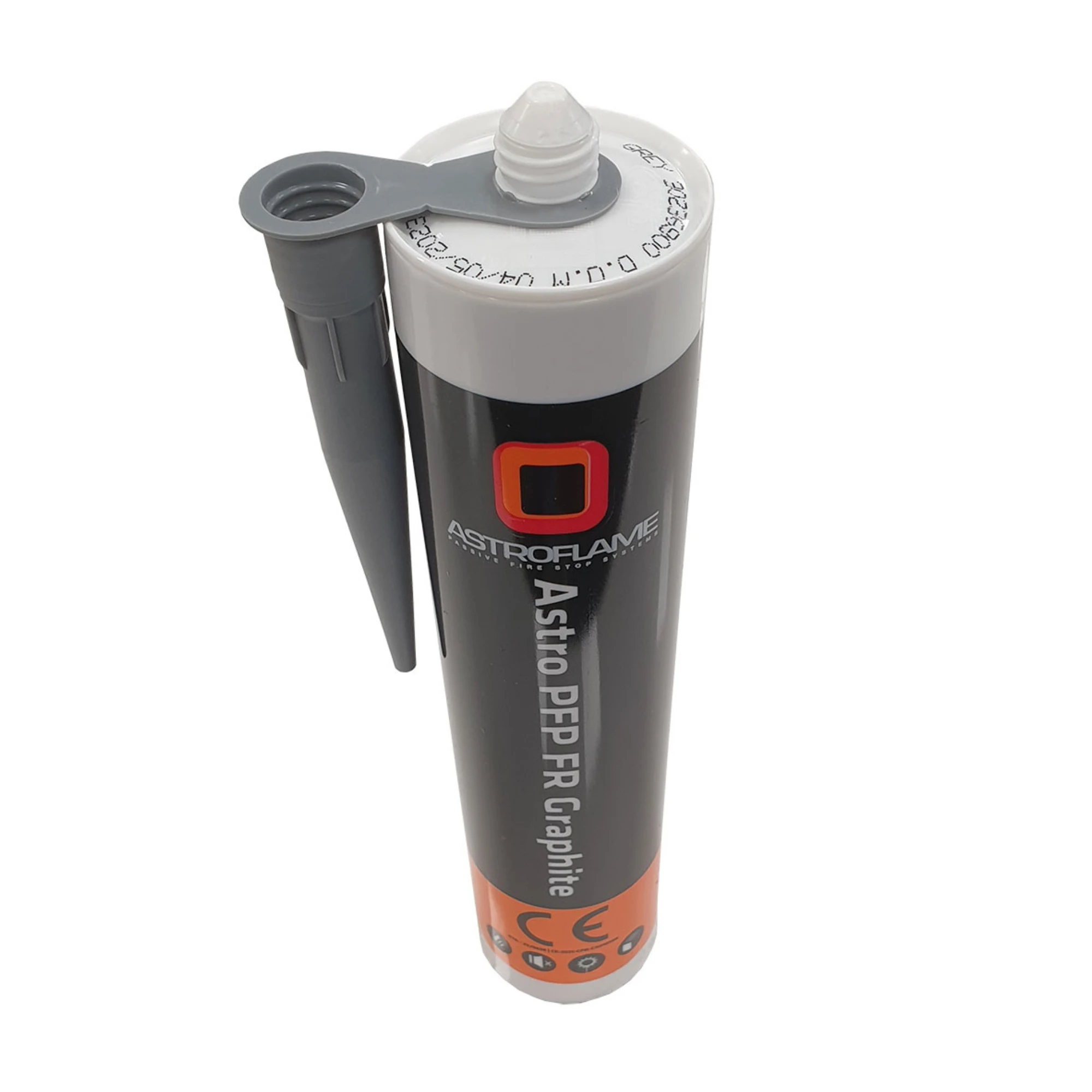

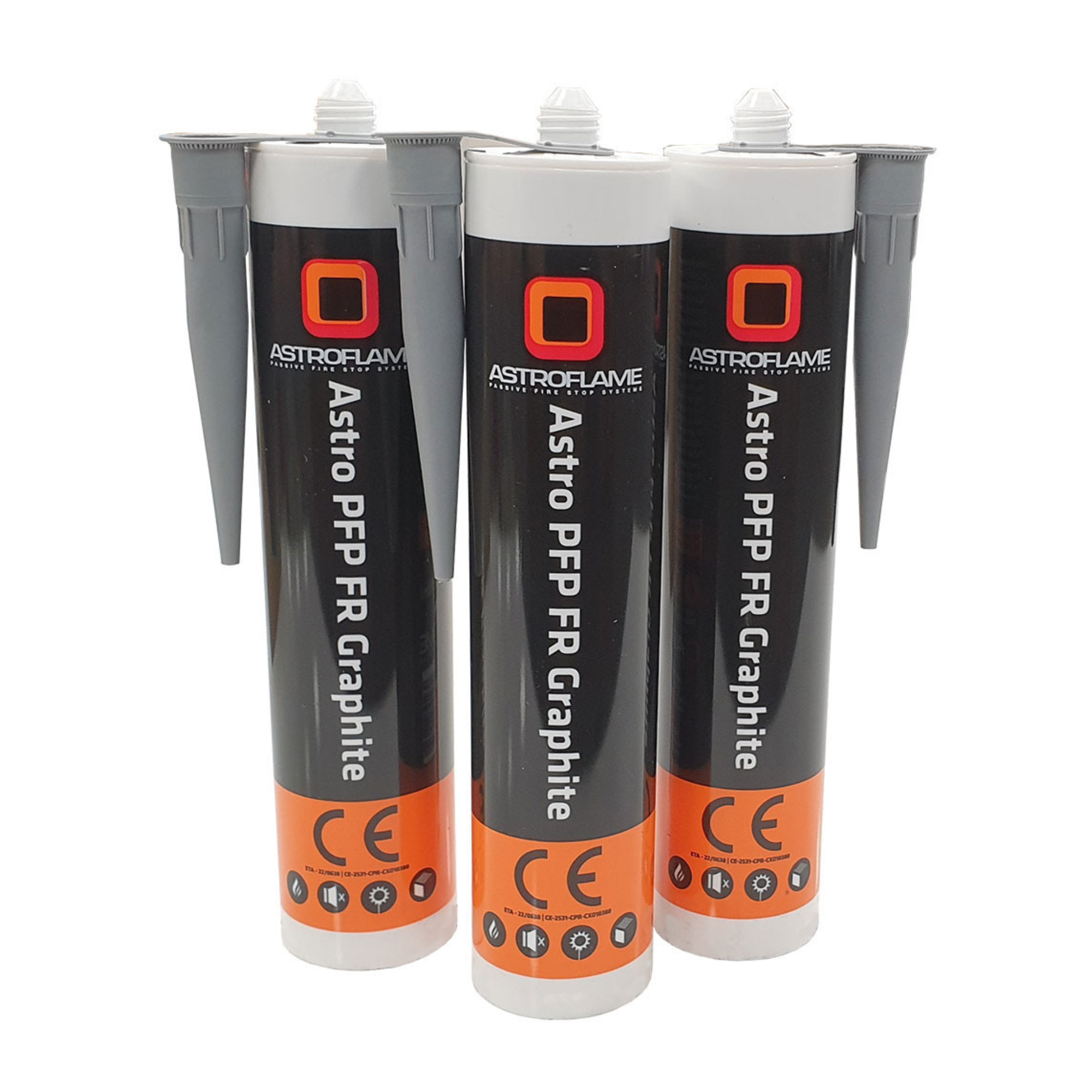

Astro PFP FR Graphite is a premium-grade fire protection sealant developed to block the passage of fire, smoke, and gases through gaps in fire-rated walls and floors. When exposed to high temperatures, it expands to fill openings around penetrations, sealing spaces left when combustible or low-melting-point materials have been destroyed by fire.
It is particularly effective for sealing challenging services that standard fire-rated mastics cannot handle, such as large plastic pipe penetrations.
For best results, it can be applied alongside an appropriate backing material, such as stone wool or Astroflame Backing Material, to achieve the correct width-to-depth ratio and minimise shrinkage during curing. Installation guidelines outline the minimum depth and maximum joint width. The sealant activates thermally at approximately 150 °C, expanding to form an intumescent barrier that can resist the passage of fire and smoke for up to four hours.
Astro High Pressure Sealant | ||
High sound insulation | Fire-rated for plastic pipes, cables & combustible insulation | Low emissions, eco & user friendly |
No priming needed for most surfaces | Suitable for concrete, brick, steel, wood, gypsum, glass, plastics & more | Flexible (up to 12.5% movement) |
Quick hardening, tack-free in 1 hr | Fire rating based on 30-day cure | 12-month storage, 30-year lifespan |
Astro High Pressure Sealant | |||
Condition | Ready for use, water based graphite sealant | Flash point | None |
Specific gravity | 1.56 - 1.60 | Reaction to fire | B - S1, d0 |
Expansion in fire | Approx. 1 : 25 | Non-sticky | 60 minutes |
Film forming | 30 minutes | Durability | Class Z2 intended for internal conditions with humidity classes other than Z1, excluding temperatures below 0°C |
Totally hardened | 3 to 5 days depending on thickness and temperature, full cure may take up to 30 days | Flexibility | Low to medium 12.5% according to ISO 11600 |
pH | 8.00 – 9.50 | Thermal conduct. | 0.845 W/mK (+/- 3%) @ 20mm depth |
Storage | 12 months stored in unopened cartridges. To be stored in temperatures between 5°C and 30°C | Service temp. | -15 to +75°C |
Compatibility | Suitable for use with most materials, but should not be used In direct contact with bituminous materials | Application temp. | +4 to +30°C |
Limitations | Should not be used in permanently damp areas or in joints with excessive movement, joints at floor level or joints below the ground | Classification | CE-marked - Sealant for fire rated penetrations class EI 240 |
Standard colours | Dark grey (may grow darker during curing) | Working life | 30 years |
Astro PFP FR Graphite is a premium-grade fire protection sealant developed to block the passage of fire, smoke, and gases through gaps in fire-rated walls and floors. When exposed to high temperatures, it expands to fill openings around penetrations, sealing spaces left when combustible or low-melting-point materials have been destroyed by fire.
It is particularly effective for sealing challenging services that standard fire-rated mastics cannot handle, such as large plastic pipe penetrations.
For best results, it can be applied alongside an appropriate backing material, such as stone wool or Astroflame Backing Material, to achieve the correct width-to-depth ratio and minimise shrinkage during curing. Installation guidelines outline the minimum depth and maximum joint width. The sealant activates thermally at approximately 150 °C, expanding to form an intumescent barrier that can resist the passage of fire and smoke for up to four hours.
Astro High Pressure Sealant | ||
High sound insulation | Fire-rated for plastic pipes, cables & combustible insulation | Low emissions, eco & user friendly |
No priming needed for most surfaces | Suitable for concrete, brick, steel, wood, gypsum, glass, plastics & more | Flexible (up to 12.5% movement) |
Quick hardening, tack-free in 1 hr | Fire rating based on 30-day cure | 12-month storage, 30-year lifespan |
Astro High Pressure Sealant | |||
Condition | Ready for use, water based graphite sealant | Flash point | None |
Specific gravity | 1.56 - 1.60 | Reaction to fire | B - S1, d0 |
Expansion in fire | Approx. 1 : 25 | Non-sticky | 60 minutes |
Film forming | 30 minutes | Durability | Class Z2 intended for internal conditions with humidity classes other than Z1, excluding temperatures below 0°C |
Totally hardened | 3 to 5 days depending on thickness and temperature, full cure may take up to 30 days | Flexibility | Low to medium 12.5% according to ISO 11600 |
pH | 8.00 – 9.50 | Thermal conduct. | 0.845 W/mK (+/- 3%) @ 20mm depth |
Storage | 12 months stored in unopened cartridges. To be stored in temperatures between 5°C and 30°C | Service temp. | -15 to +75°C |
Compatibility | Suitable for use with most materials, but should not be used In direct contact with bituminous materials | Application temp. | +4 to +30°C |
Limitations | Should not be used in permanently damp areas or in joints with excessive movement, joints at floor level or joints below the ground | Classification | CE-marked - Sealant for fire rated penetrations class EI 240 |
Standard colours | Dark grey (may grow darker during curing) | Working life | 30 years |
