Astro Intumescent Pipe Closer - 60mm Depth - 4 Hour Protection
We Recommend
Bestseller
Bulk Buy Options
Code: ASXPC001/022
from
INC VAT
Code: ASXPC001/022

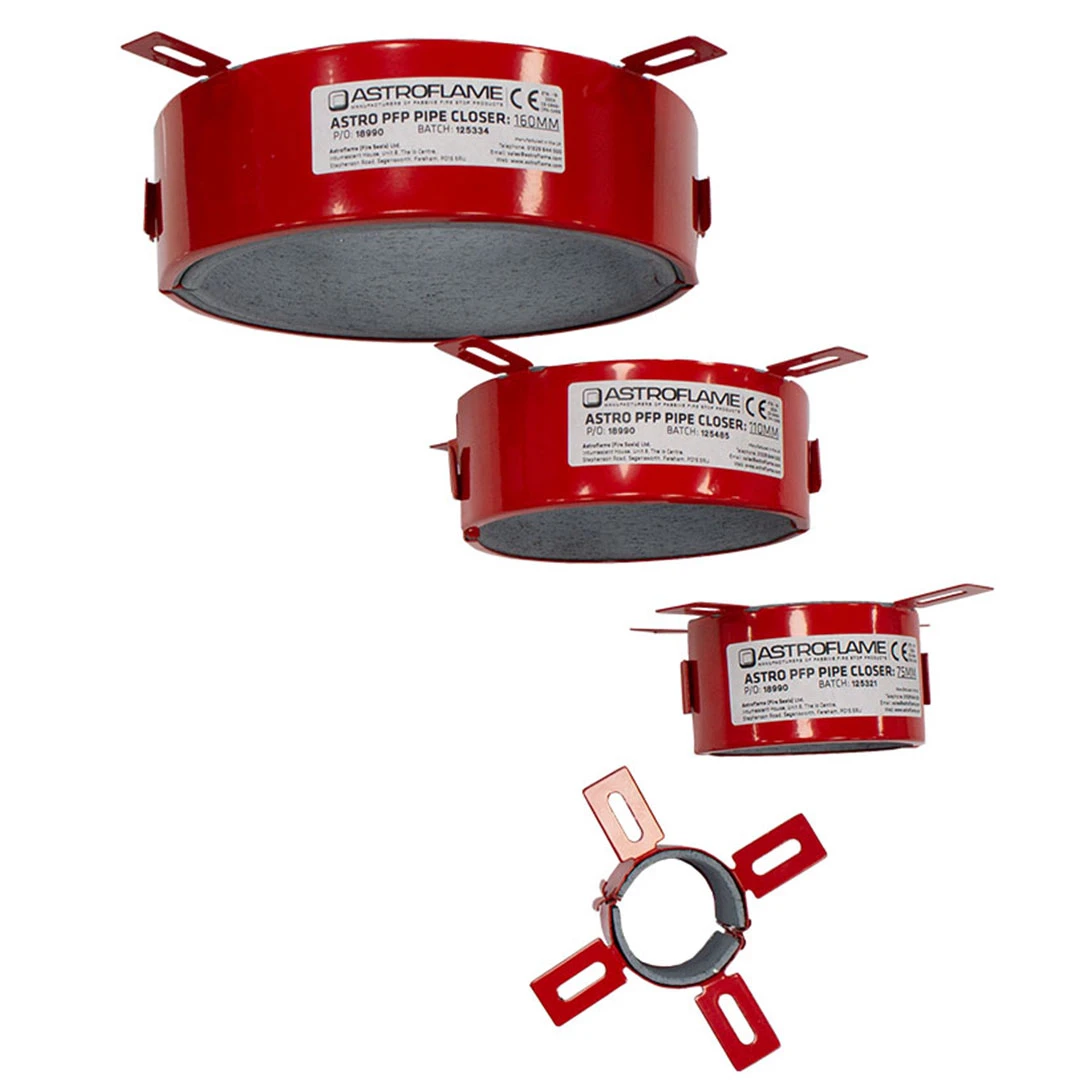

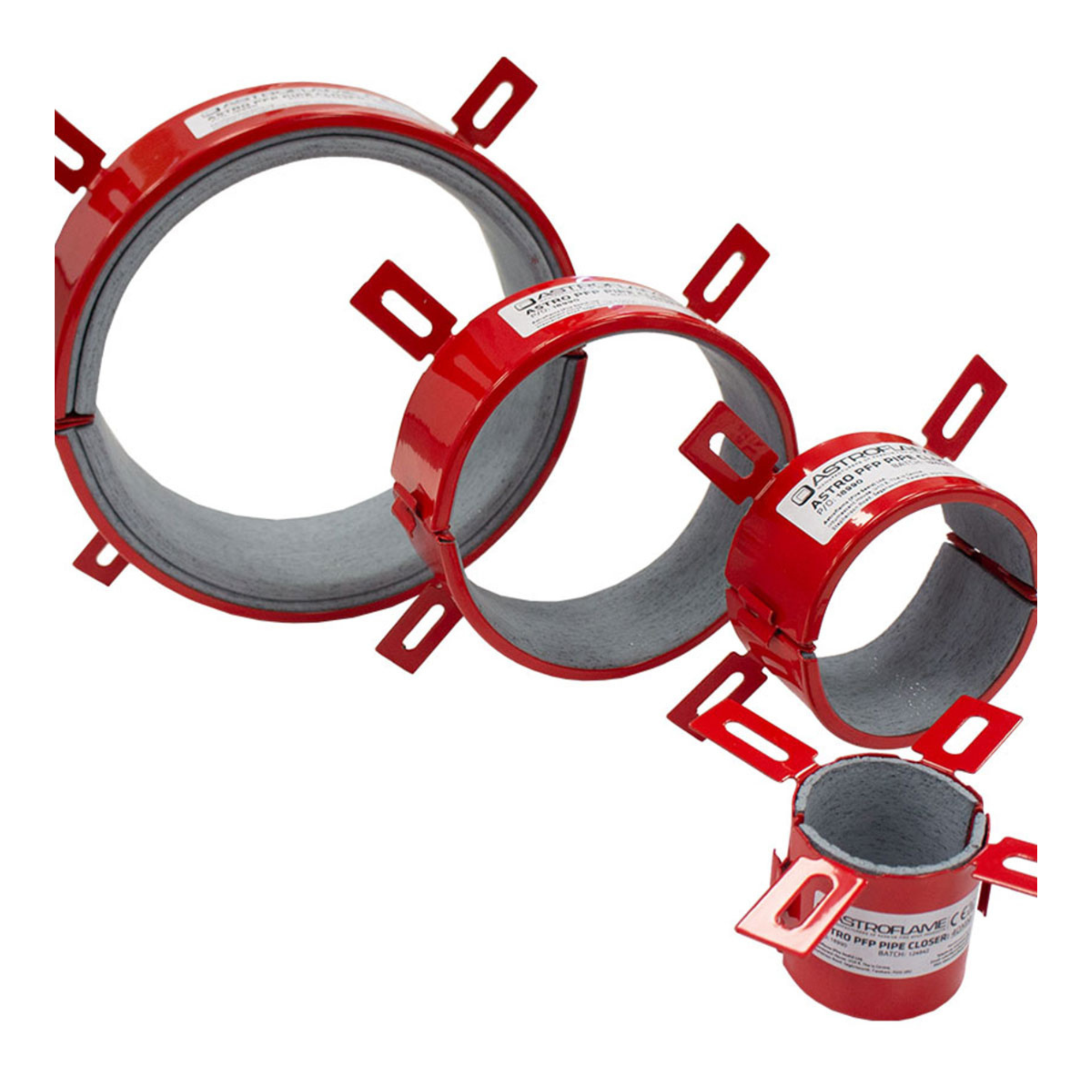

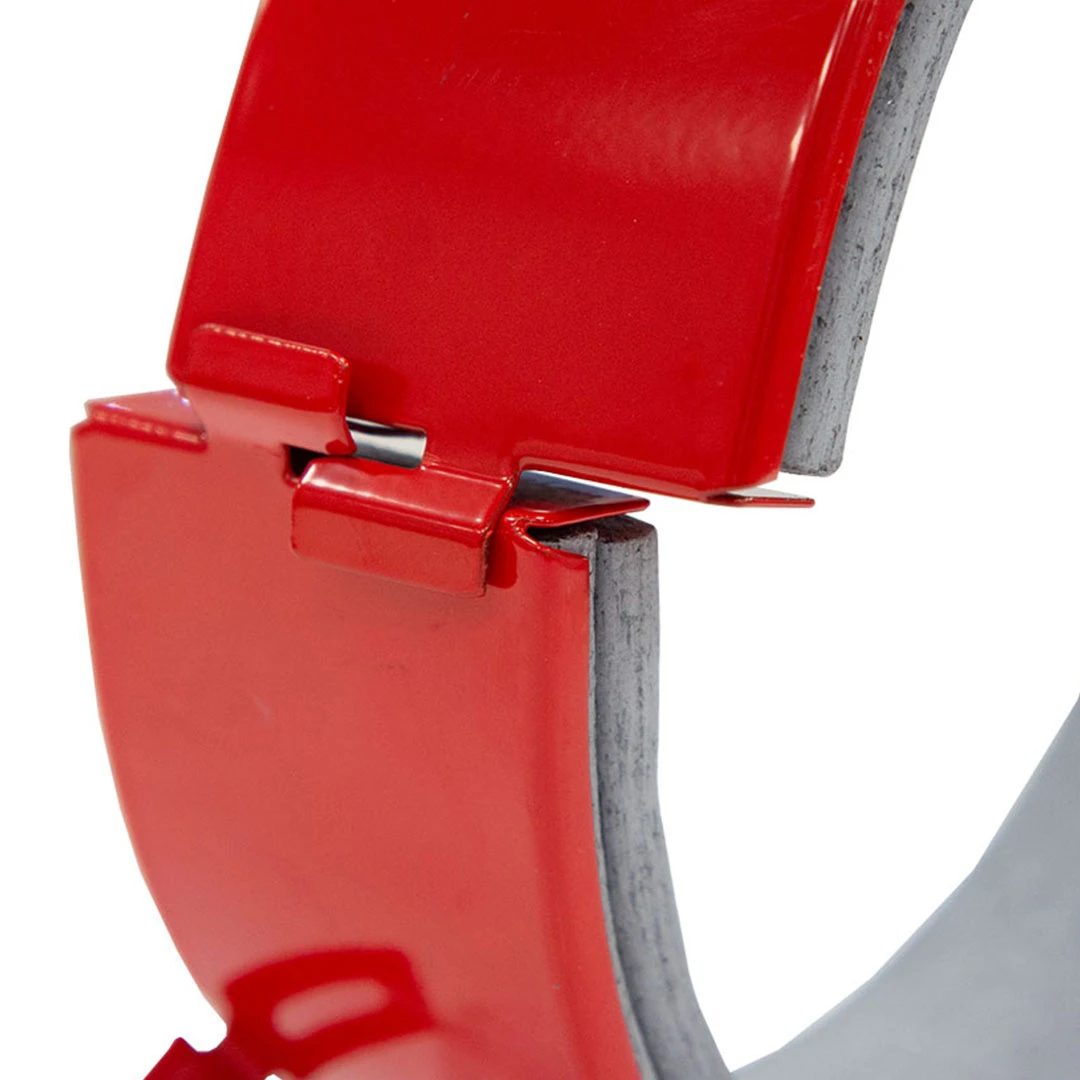

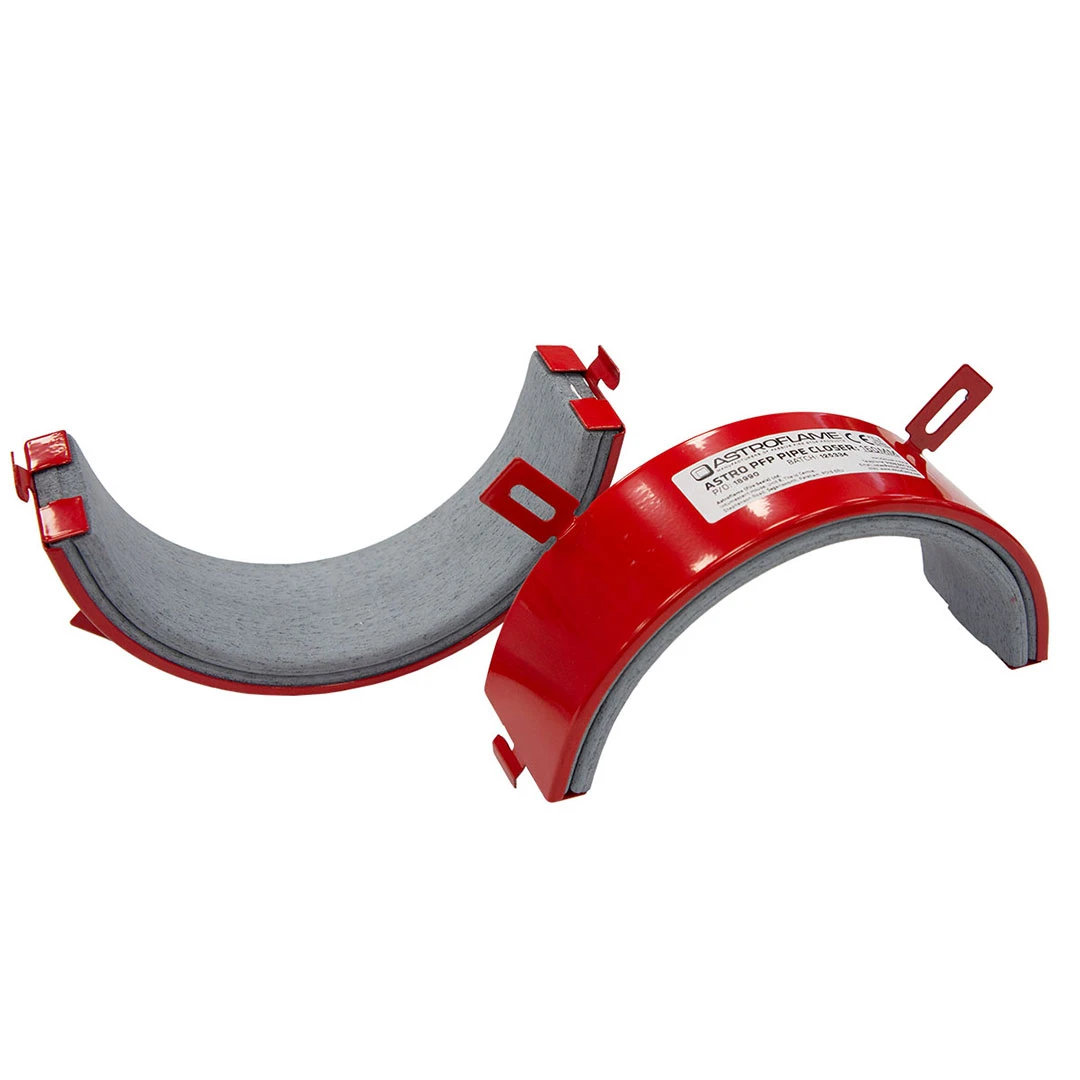

Each Astro Intumescent Pipe Closer consists of a red/silver-coated circular steel shell that splits into two halves to easily fit around the service penetrations using a simple 'slide-lock' system. The steel shell contains a graphite based reactive metal that reacts when exposed to heat to close the openings left as the plastic pipe softens and melts during the fire.

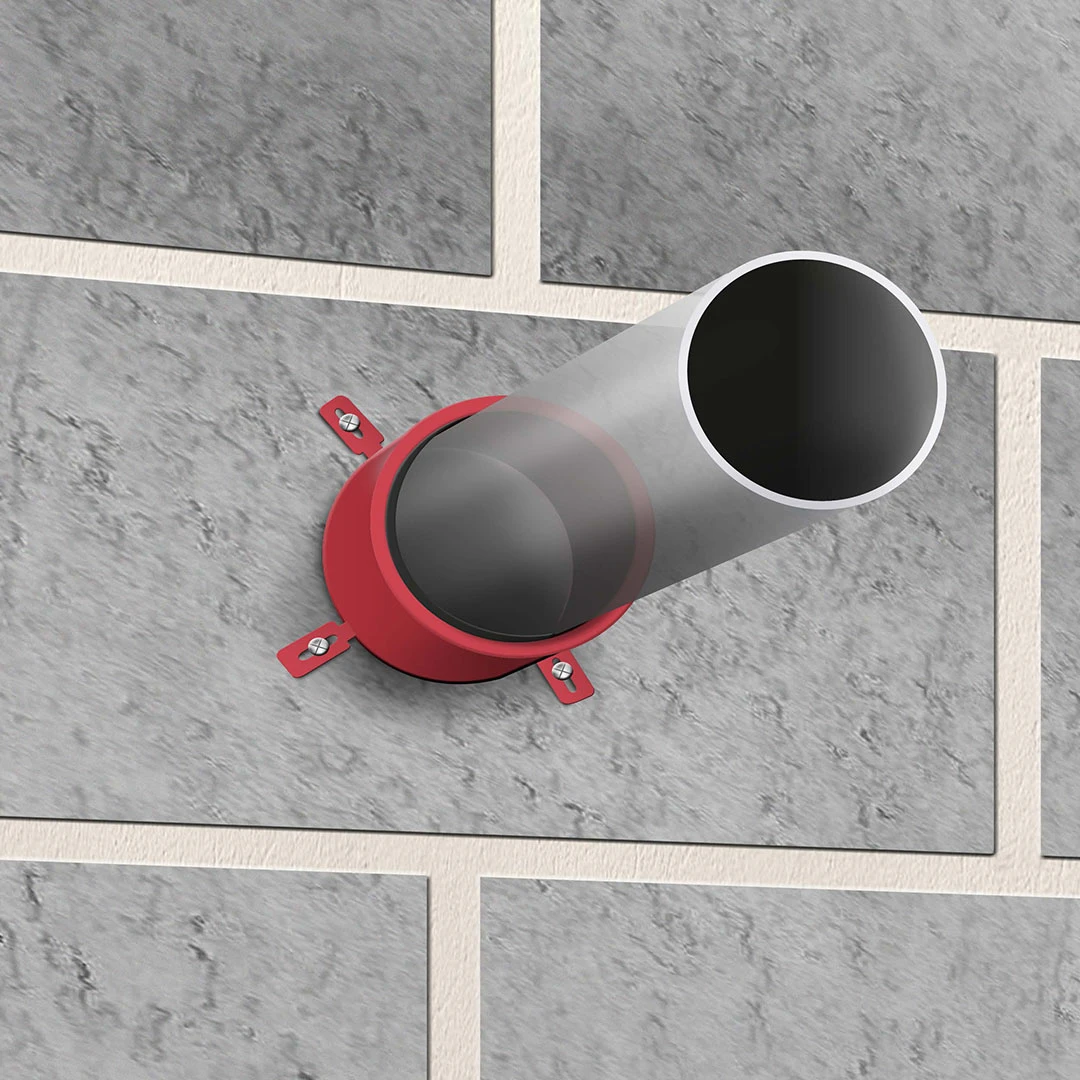

With a depth of 60mm, and up to 4 hours of fire protection, Astro Intumescent Pipe Closer is engineered to maintain the fire resistance of fire-rated walls and floors where continuous plastic pipes penetrate through them. These pipe closers are commonly found in gypsum and masonry walls, as well as in concrete walls and floors.
When testing pipes, you can choose not to cap (or close) the pipe, or cap the pipe inside the furnace, or outside the furnace, or on both sides. The chosen configuration is determined by the intent of the application of the pipe and/or the conditions of the installation environment.
Whether the pipe is capped is indicated in the code after the fire classification. The test configuration defines the approvals possible.
Astro Intumescent Pipe Closer - 60mm Depth | ||
Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC, PP and many composite plastic pipes. | Fire resistance up to 240 minutes integrity & insulation. | Allows smaller pipes to be fitted within larger closers, ideal for angled pipes or oversized openings. |
Tested for U/U pipe end applications. | CE & UKCA Marked | Designed for internal use. |
Astro Intumescent Pipe Closer - 60mm Depth | |||
Condition | Ready for use, red steel shell with a graphite material | Shell | Powder coated 1mm steel |
Conditioning procedure | EN 13238:2010 | Expansion ratio | 17:1 |
Expansion pressure | 65.4 N | Graphite weight | 1.4 kg/m2 per mm thickness |
Graphite density | 1409 kg/m3 | Normal expansion time | Less than 2 minutes |
Storage | To be stored in temperatures between 5°C and 30°C | Durability | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C. |
Minimum expansion temperature | 105 °C | Installation temp. | +5°C to +50°C (sealant) |
Each Astro Intumescent Pipe Closer consists of a red/silver-coated circular steel shell that splits into two halves to easily fit around the service penetrations using a simple 'slide-lock' system. The steel shell contains a graphite based reactive metal that reacts when exposed to heat to close the openings left as the plastic pipe softens and melts during the fire.
With a depth of 60mm, and up to 4 hours of fire protection, Astro Intumescent Pipe Closer is engineered to maintain the fire resistance of fire-rated walls and floors where continuous plastic pipes penetrate through them. These pipe closers are commonly found in gypsum and masonry walls, as well as in concrete walls and floors.
When testing pipes, you can choose not to cap (or close) the pipe, or cap the pipe inside the furnace, or outside the furnace, or on both sides. The chosen configuration is determined by the intent of the application of the pipe and/or the conditions of the installation environment.
Whether the pipe is capped is indicated in the code after the fire classification. The test configuration defines the approvals possible.
Astro Intumescent Pipe Closer - 60mm Depth | ||
Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC, PP and many composite plastic pipes. | Fire resistance up to 240 minutes integrity & insulation. | Allows smaller pipes to be fitted within larger closers, ideal for angled pipes or oversized openings. |
Tested for U/U pipe end applications. | CE & UKCA Marked | Designed for internal use. |
Astro Intumescent Pipe Closer - 60mm Depth | |||
Condition | Ready for use, red steel shell with a graphite material | Shell | Powder coated 1mm steel |
Conditioning procedure | EN 13238:2010 | Expansion ratio | 17:1 |
Expansion pressure | 65.4 N | Graphite weight | 1.4 kg/m2 per mm thickness |
Graphite density | 1409 kg/m3 | Normal expansion time | Less than 2 minutes |
Storage | To be stored in temperatures between 5°C and 30°C | Durability | Z2 intended for use in internal conditions with humidity classes other than Z1, excluding temperatures below 0°C. |
Minimum expansion temperature | 105 °C | Installation temp. | +5°C to +50°C (sealant) |
